32
REPAIR PARTS
NOTE: Actual gas valve may
look different than gas
valve shown.
IMPORTANT: READ THESE INSTRUCTIONS BEFORE ORDERING!
All parts listed in the following Parts List may be ordered through your nearest supplier. When order-
ing parts, rst obtain the Model Number from the data plate on your boiler, then determine the Part
No. (not the Key No.) and the Description of each part from the following illustrations and list. Be
sure to give us all this information:
The Part No. ________________________________________________________________
The Part Description __________________________________________________________
The Boiler Motel No. __________________________________________________________
FOR USE WITH
NATURAL GAS ONLY
FOR USE WITH
NATURAL GAS ONLY

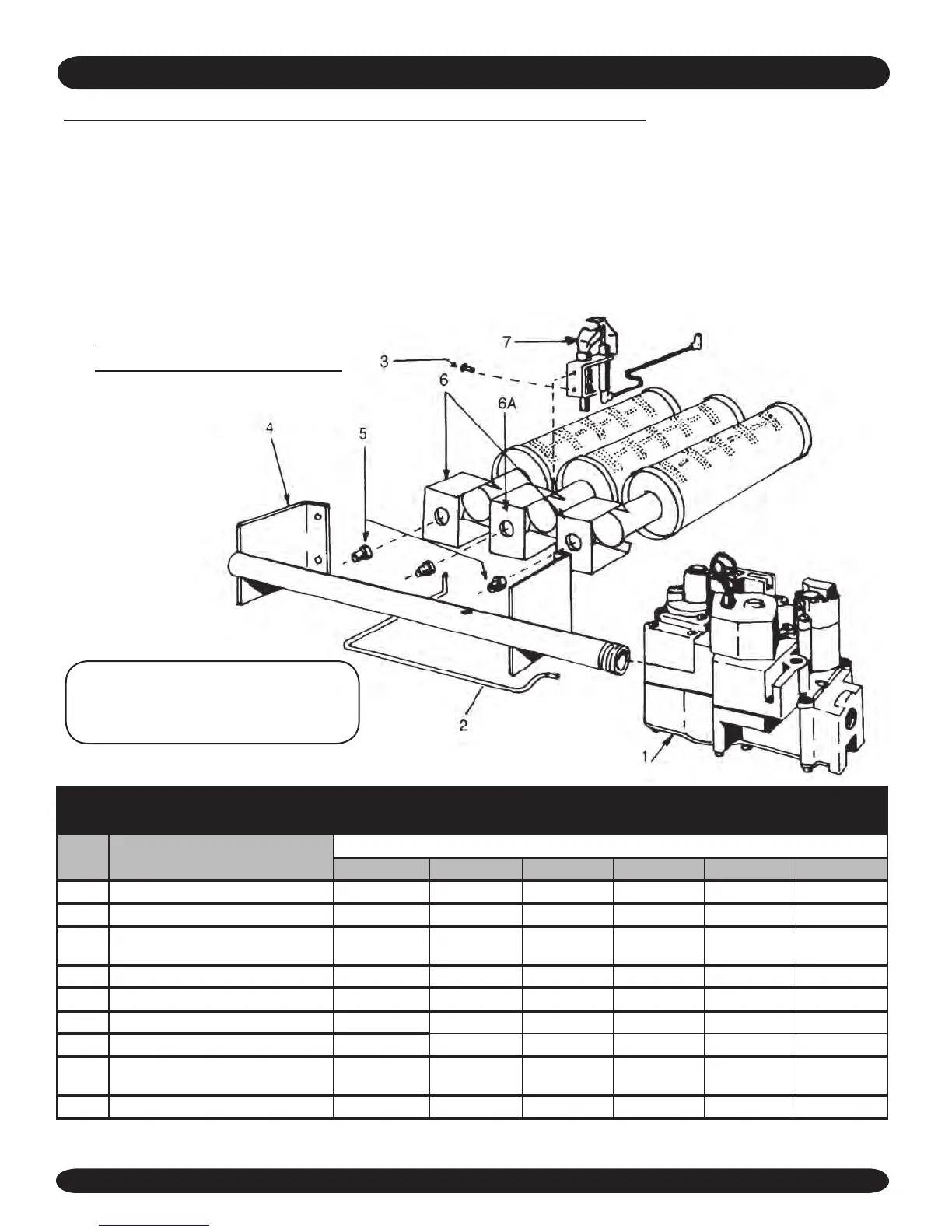

NATURAL GAS BURNER & MANIFOLD PARTS
This is a repair parts list – NOT a packing list!
KEY
NO.
DESCRIPTION
PART NUMBERS FOR
2 Section 3 Section 4 Section 5 Section 6 Section 7 Section
1 24 Volt Gas Valve, Natural Gas 14662052 14662052 14662052 14662052 14662058 14662058
2 Pilot Tube With Fitting 43300201 43300201 43300201 43300201 43300200 43300200
3
10-32 x 3/16” Slotted Hex Head
Screws
14695301 14695301 14695301 14695301 14695301 14695301
4 Gas Manifold 14616042 14616043 14616044 14616045 14616024 14616025
5 Orice -Natural Gas* 14615030 14615031 14615031 14615031 14615035 14615035
6 Main Burner Less Pilot Bracket** - - - 14615532 14615532 14615532 14615532 14615532
6A Main Burner with Pilot Bracket 14615531 14615531 14615531 14615531 14615531 14615531
7
Pilot Burner with
Orice, Natural Gas
14662100 14662092 14662092 14662092 14662092 14662092
‡ Rollout Shield 42500932 42500933 42500934 42500935 42500936 42500937
*Requires 1 less than the number of sections.
**Requires 2 less than the number of sections.
‡ Not illustrated.
Quantity is 1 unless otherwise noted.
