33
FOR USE WITH PROPANE GAS ONLY
FOR USE WITH PROPANE GAS ONLY
REPAIR PARTS
NOTE: Actual gas valve may
look different than gas
valve shown.

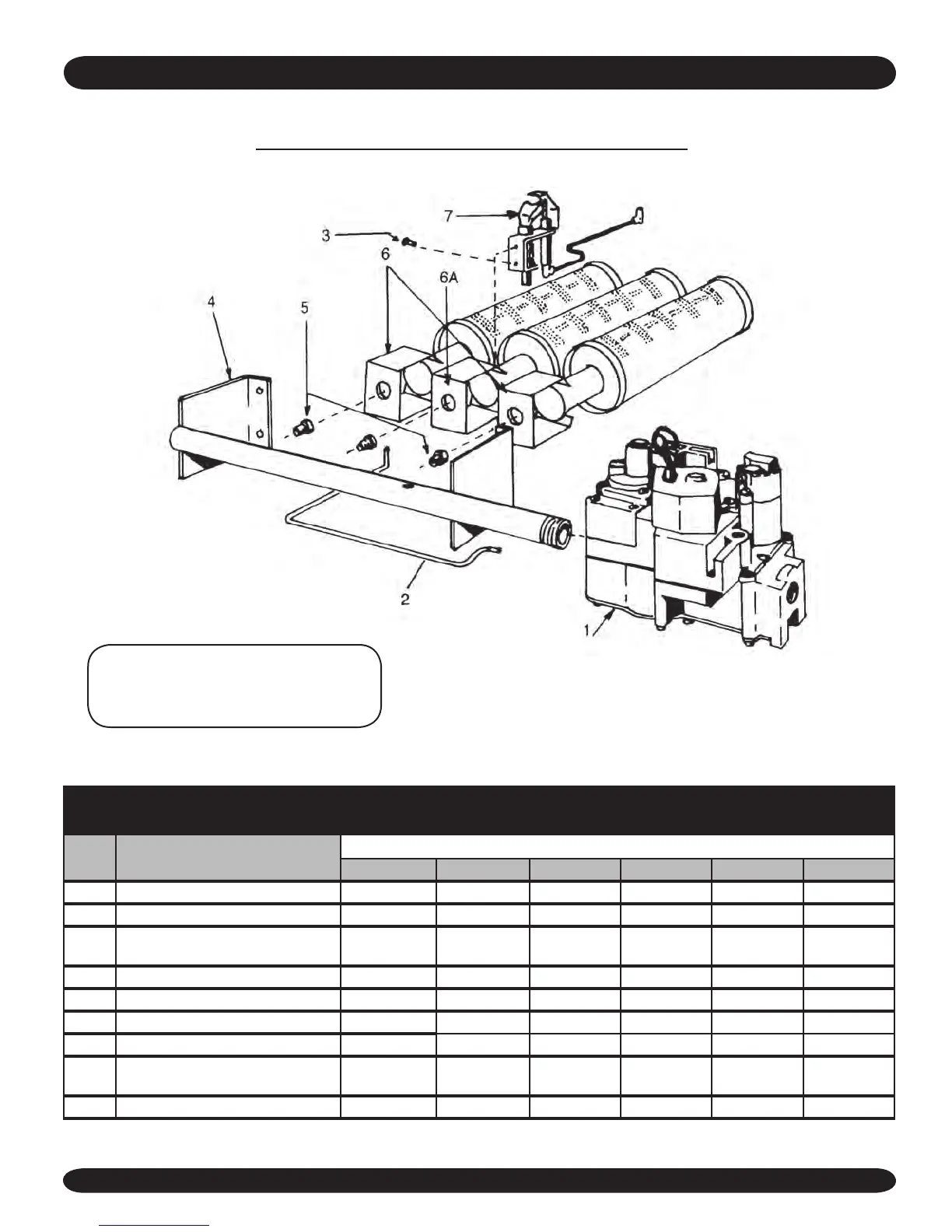

PROPANE GAS BURNER & MANIFOLD PARTS
This is a repair parts list – NOT a packing list!
KEY
NO.
DESCRIPTION
PART NUMBERS FOR
2 Section 3 Section 4 Section 5 Section 6 Section 7 Section
1 24 Volt Gas Valve, Propane Gas 14662062 14662062 14662062 14662062 14662059 14662059
2 Pilot Tube With Fitting 43300201 43300201 43300201 43300201 43300200 43300200
3
10-32 x 3/16” Slotted Hex Head
Screws
14695301 14695301 14695301 14695301 14695301 14695301
4 Gas Manifold 14616020 14616021 14616022 14616023 14616024 14616025
5 Orice -Propane Gas* 14615044 14615036 14615036 14615036 14615036 14615036
6 Main Burner Less Pilot Bracket** - - - 14615532 14615532 14615532 14615532 14615532
6A Main Burner with Pilot Bracket 14615531 14615531 14615531 14615531 14615531 14615531
7
Pilot Burner with
Orice, Propane Gas
14662093 14662094 14662094 14662094 14662094 14662094
Rollout Shield 42500932 42500933 42500934 42500935 42500936 42500937
*Requires 1 less than the number of sections.
**Requires 2 less than the number of sections.
‡ Not illustrated.
Quantity is 1 unless otherwise noted.
