34

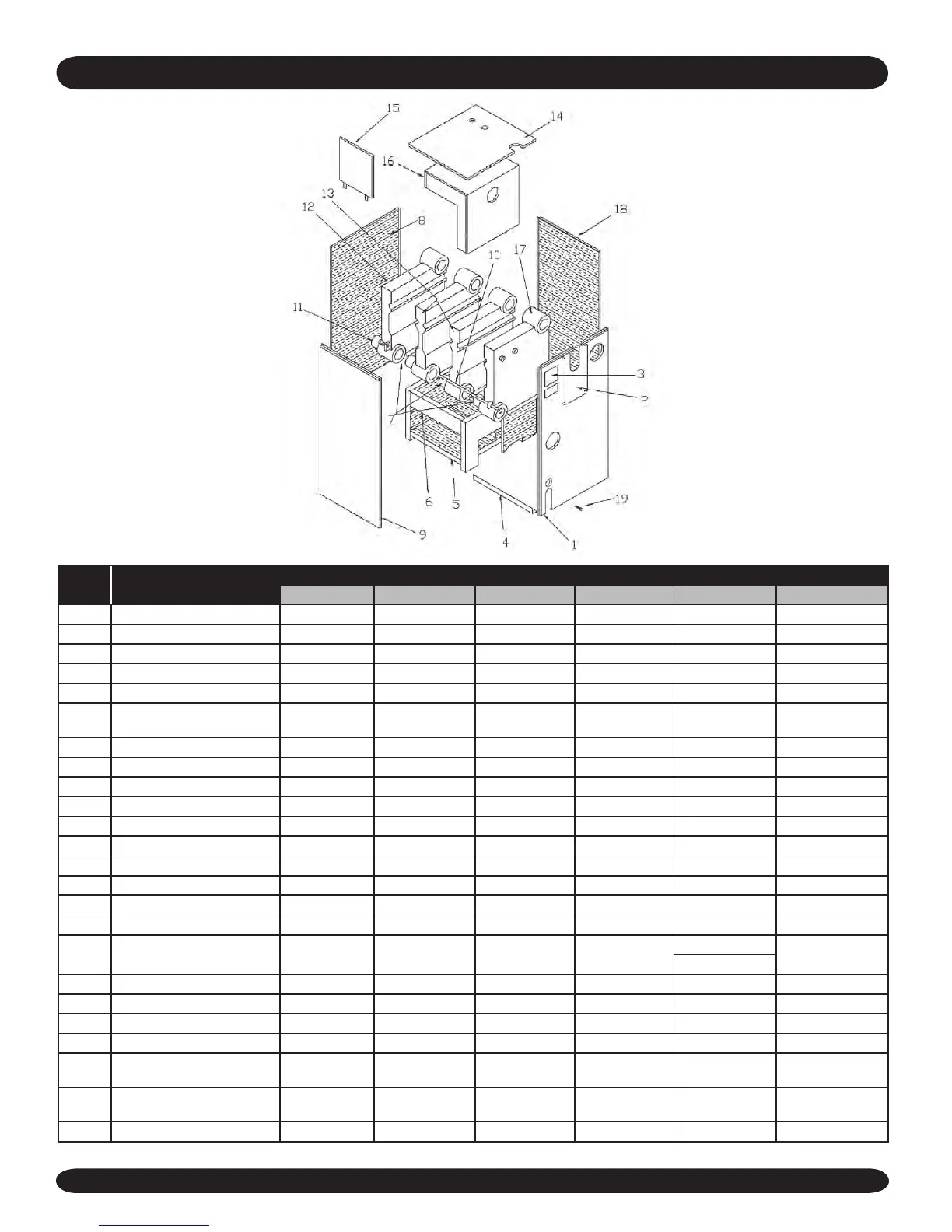

REPAIR PARTS
"KEY
NO."
DESCRIPTION
PART NUMBERS FOR
2 SECTION 3 SECTION 4 SECTION 5 SECTION 6 SECTION 7 SECTION
1 Jacket, Right Side Panel 730001050AC 730001050AC 730001050AC 730001050AC 730001050AC 730001050AC
2 Blower Cover Plate 630001170AC 630001170AC 630001170AC 630001170AC 630001170AC 630001170AC
3 Rating Plate 240004760 240004760 240004760 240004760 240004760 240004760
4 Jacket Tie Bar 42500653 42500654 42500655 42500656 42500657 42500658
5 Boiler Base 42500733 42500734 42500735 42500736 42500737 42500738
6
Insulation, Base Side (2
Required)
14614020 14614020 14614020 14614020 14614020 14614020
6 Insulation, Base Front 14614112 14614113 14614114 14614115 14614116 14614117
6 Insulation, Base Rear 14614122 14614123 14614124 14614125 14614126 14614127
7 Nipple, Boiler 43300976 43300976 43300976 43300976 43300976 43301976
8 Jacket, Left Side Panel 730001040AC 730001040AC 730001040AC 730001040AC 730001040AC 730001040AC
9 Jacket, Front Panel 730001032AC 730001033AC 730001034AC 730001035AC 730001036AC 730001037AC
10 1/4" Tie Rod, (2 Required) 14605008 14605001 14605002 14605051 14605053 14605005
11 Nut 1330002 1330002 1330002 1330002 1330002 1330002
12 Section, Left End 41000019 41000019 41000019 41000019 41000019 41000019
13 Section, Intermediate ------- 41000018 41000018 41000018 41000018 41000018
14 Jacket, Top Panel 730001012AC 730001013AC 730001014AC 730001015AC 730001016AC 730001017AC
15
Cleanout Plate(s) & insula-
tion
42501539 42501540 42501541 42501542
42501540 &
42501541
(2X)
42501541
16 Flue Collector 730003002 730003003 730003004 730003005 730003006 730003007
17 Section, Right End 41000017P01 41000017P01 41000017P01 41000017P01 41000017P01 41000017P01
18 Jacket, Back Panel 730001022AC 730001023AC 730001024AC 730001025AC 730001026AC 730001027AC
‡ Jacket, Complete 730001002AC 730001003AC 730001004AC 730001005AC 730001006AC 730001007AC
19
#10 x 1/2 Sheet Metal
Screw
14695074 14695074 14695074 14695074 14695074 14695074
‡
Block Assembly
(7,10,11,12,13,17)
41000212 41000312 41000412 41000512 41000612 41000712
‡ Combustible Floor Plate 14614031 14614031 14614031 14614031 14614032 14614032
‡ Not illustrated
