Turn on the power of this unit.
1
3-3. Selecting the Downstream Processing Unit
Set the downstream processing unit to be connected on the maintenance menu.

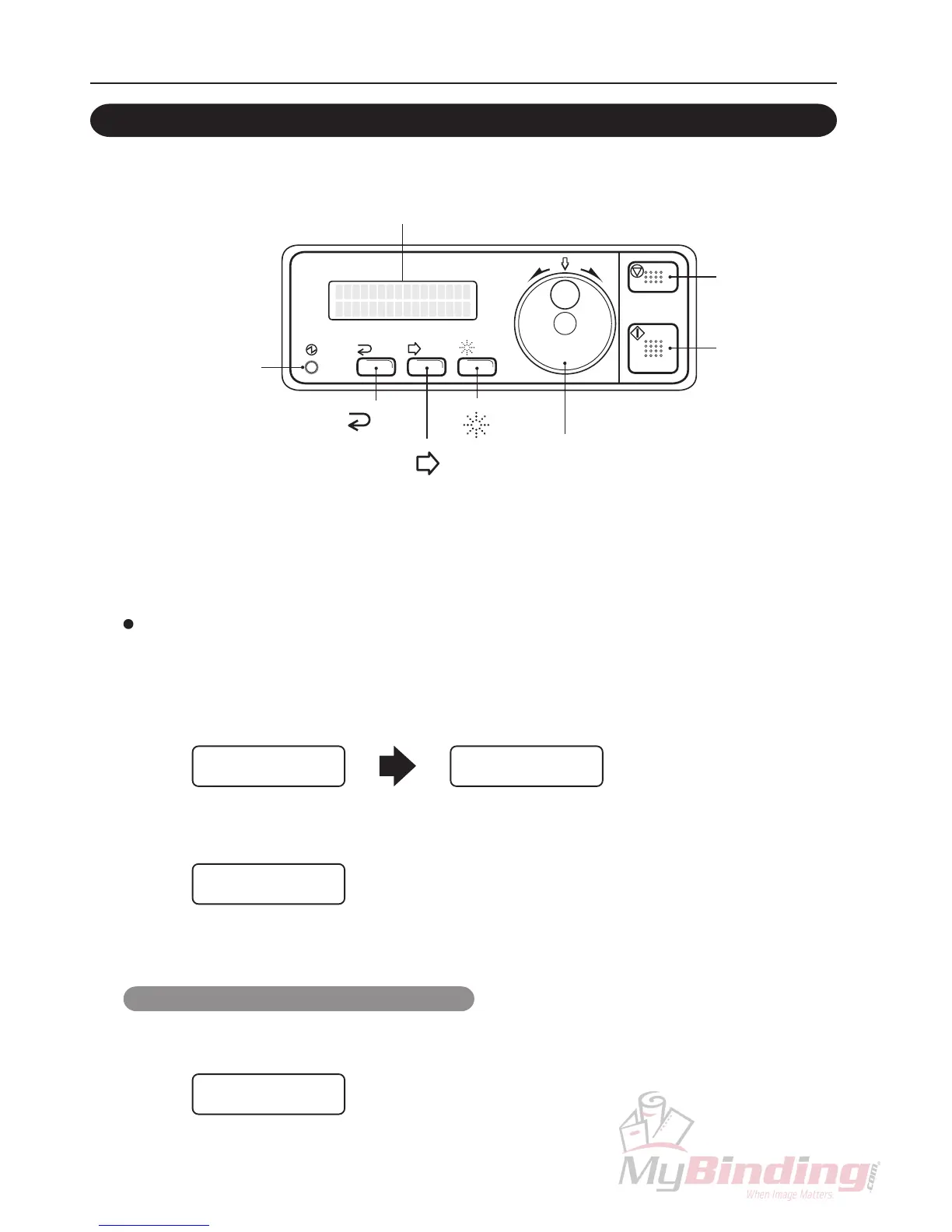

Start button
Stop button
button
Clear
button
Escape
Jog dial
Power ON indicator
Display (LCD)
button
Function
Enter the maintenance menu.
Press the escape button once on the initial screen of the control panel. Turn the jog dial by three clicks towards the right,
and press the clear button once. A beep will be sounded. Turn the jog dial by 5 clicks towards the left, and press the clear
button once. Two beeps are sounded and “Maintenance Menu” will be displayed. Press the jog dial here to enter the
maintenance menu.
If pressed incorrectly halfway through, press the escape button several times, and repeat from the beginning at the initial
screen.
2
Maintenance Menu Select M. Mode
ROM Version
Turn the jog dial to display “Finisher Setting”, and press the jog dial to confirm.
3
Finisher Setting
None
Select the downstream processing unit to be connected.
When connecting the DBM-120 Sheet by Sheet
Turn the jog dial and select “DBM120” if connecting only the DBM-120 Sheet by Sheet, or “DBM120+120T” if connecting
also the DBM-120T, and press the jog dial to confirm.
4
Finisher Setting
DBM12O+12OT
3. INSTALLATION OF DSF-2000
