Duracell D-HUB - Appendix A: Electrical Block Diagram; Internal Wiring Diagram

15

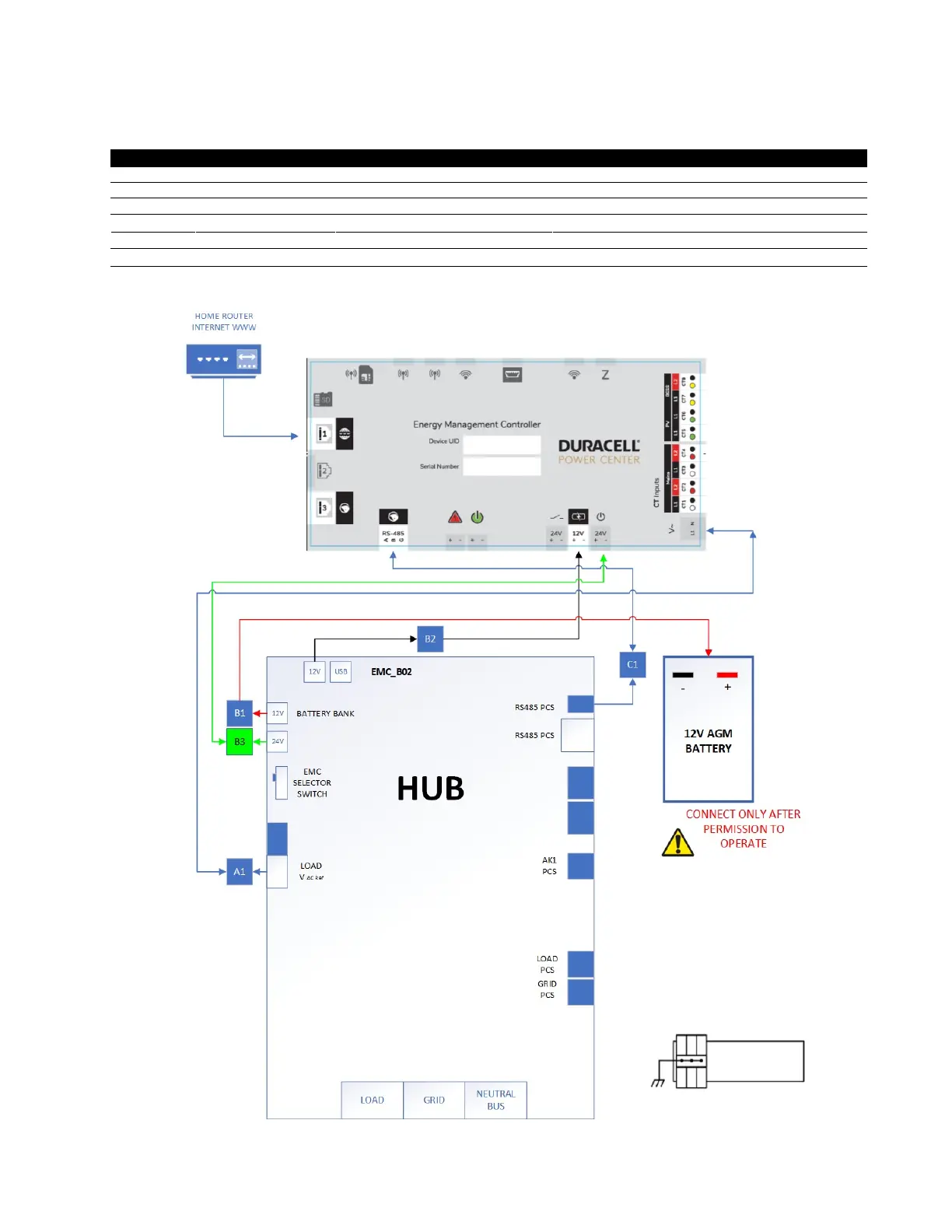

Appendix A: Electrical Block Diagram of Internal Components
The following reference diagram outlines the internal wiring of the DURACELL HUB.
Reference
P/N
Title
Notes
A1
801003652
Voltage Sense Cable
120VAC L1 to N power meter reference
B1
801003644
Backup Battery Cable
12V AGM battery power
B2
801003650
EMS
-
A 12V
-
24V Power Cable
12V UPS power for EMC
C1 801003658 Comm Cable EMC to PCS internal communication patch cable
Ethernet connection to EMC WAN port
B3
801003650
EMS A 24V Power Cable
24V Power Cable
