2. Locate the bag marked ‘Aileron’ and install aileron control horns and rods for
each side of the wing as shown. Ensure the servo horn is at 90 degrees to the
wing when installing the control rod and connect to the outer hole on the servo
arm. Click each clevis shut on the horn once the rod is installed.
ASSEMBLY:

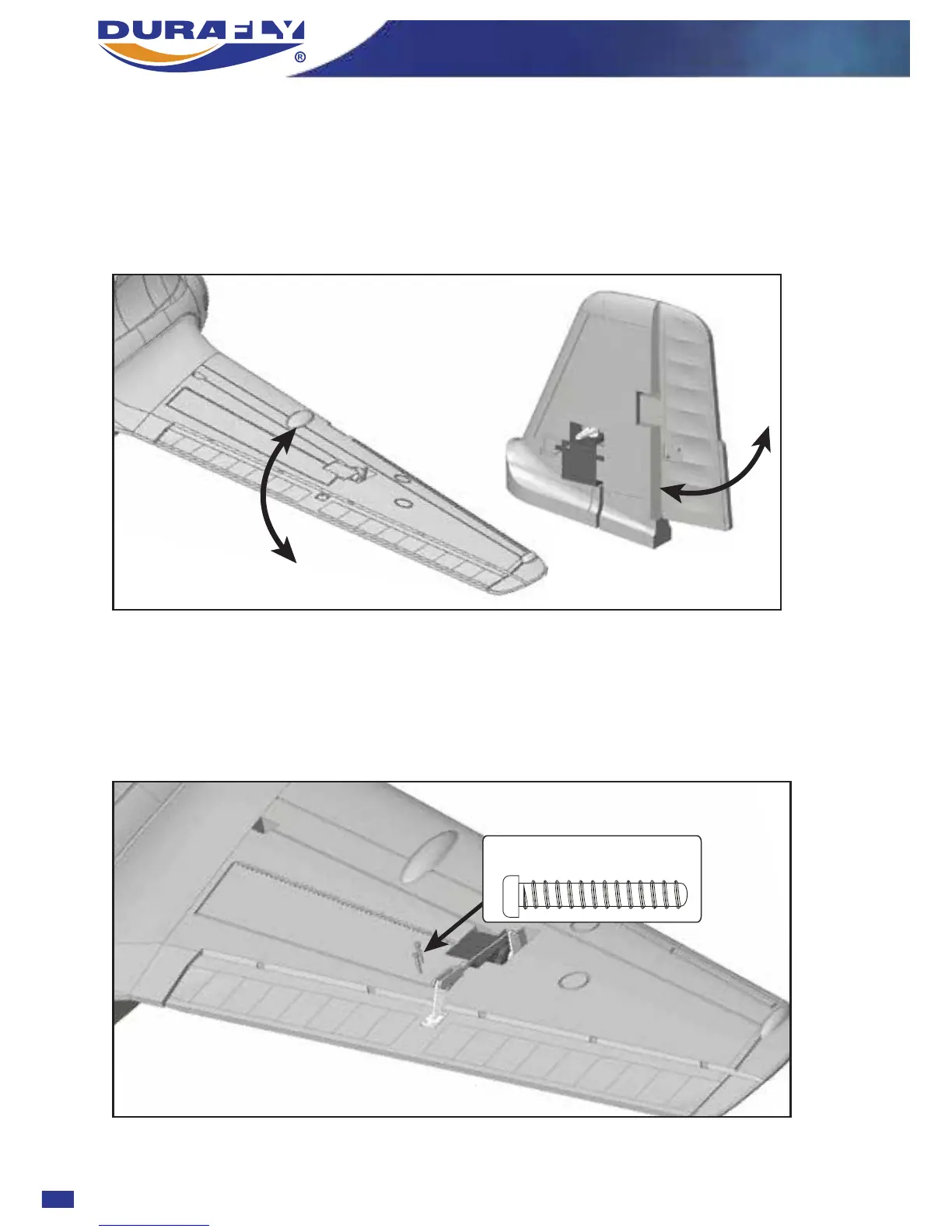

1. Out of the box your Me-163 comes with reinforced foam hinges. However before
assembly can begin, each hinge line must be flexed back and forth 6-8 times to
reduce tension, and load on the servo. Do this for all control surfaces before
continuing.
PB1.7X10mm
3
