PB1.7X12mm
1
2

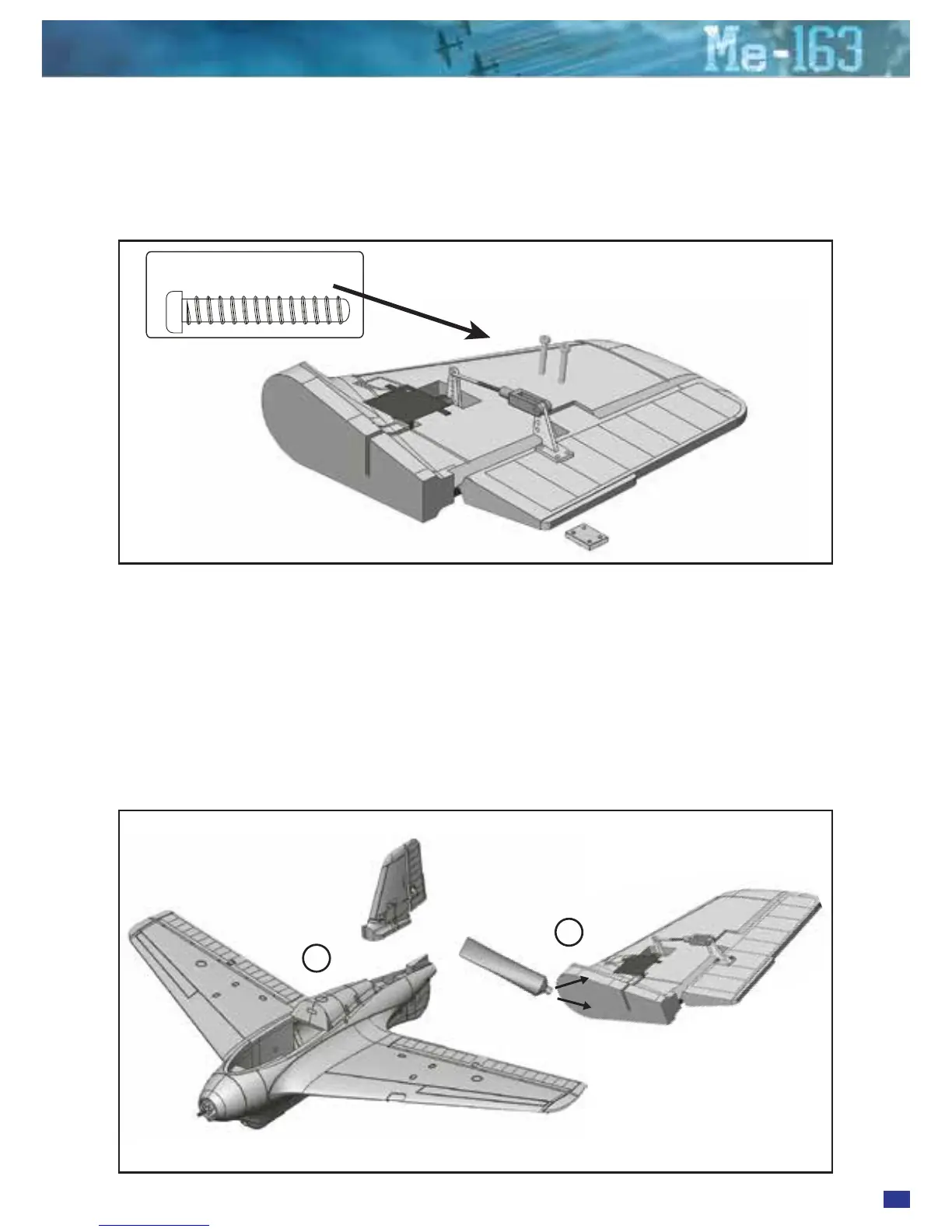

3. Following the illustration below, screw the remaining control horn to the
rudder control surface. Again, with the servo at 90 degree’s (neutral), connect
the push rod to the servo arm (outer hole) then to the control horn and clip the
clevis in place.
4. Using the supplied and recommended glue, apply a reasonable amount of glue to
the base of the vertical tail and then just a small amount to the lower side edges (1).
Hold for 30 seconds to to allow the glue to become a little tacky then install the tail
in place as shown (2). Wipe any excess glue with a wet cloth if need be.
Note: Your Me-163 comes supplied with two optional
Swastikas (each in two parts). You may apply to both
sides of the vertical tail now if you wish.
