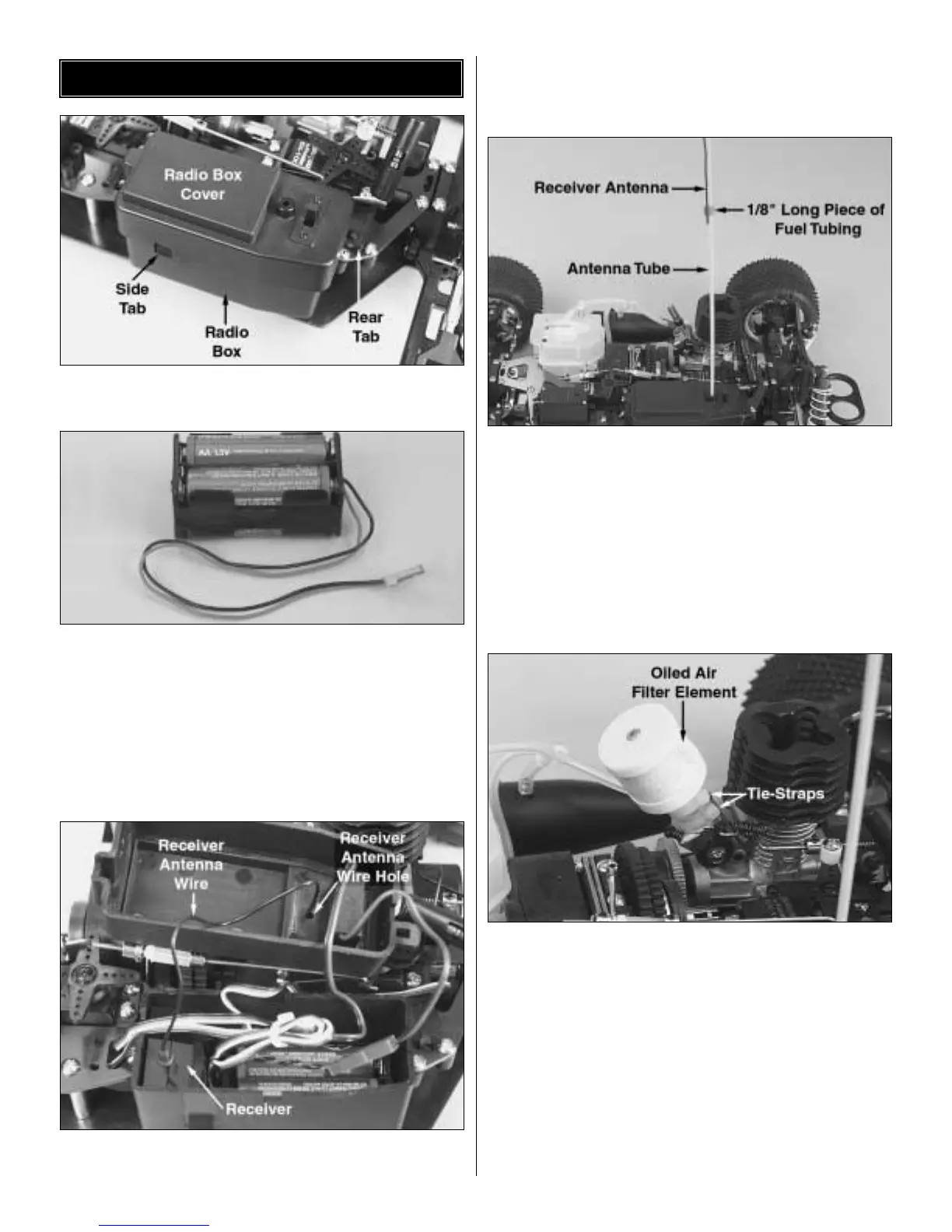

❏ 1. Remove the radio box cover by releasing the two
tabs shown.
❏ 2. Remove the 4 cell receiver battery box from the radio
box and install (4) “AA” included batteries into the battery
holder. Follow the configuration molded into the battery
holder. Re-install the receiver battery holder back into the
radio box. Plug the connector on the receiver battery into the
socket on the receiver switch wire. The receiver battery
connector can only be plugged in one way. Tuck the wires
into the the groove in the radio box so that they do not get
crimped under the radio box cover.
❏ 3.Remove the twist-tie from the receiver antenna.Thread the
receiver antenna wire through the hole in the radio box cover.
❏ 4. Reinstall the radio box cover onto the receiver box.
Secure the radio box cover with the two tabs on the radio
box. Make sure the tabs lock into place.
❏ 5. Remove the antenna tube from the parts bag. Thread
the receiver antenna through the antenna tube. The antenna
will be longer than the antenna tube. Do not coil or cut the
receiver antenna. Press fit the antenna tube through the
hole in top of the radio box. Place a 1/8" long piece of fuel
tubing over the antenna tube and wire to secure in place. Tip:
Run the antenna through your fingers to straighten out
kinks before running through the antenna tube. Also,
applying a small amount of soapy water to the antenna
wire will allow the wire to slide through the tube easier.
❏ 6.Thoroughly soak the air filter foam with air filter oil (not
included) and then squeeze out the excess oil. DuraTrax Air
Filter Oil (DTXC2465) is available from your local hobby
dealer. Attach the adapter tube to the air filter base with one
of the included tie straps. Place the air filter onto the
carburetor and secure it in place with the other included tie
strap. Cut the excess part off of both straps. TIP: Shock oil
or a light machine oil may be substituted for air filter oil.
❏ 7. Remove the plastic protective cover from the outside
of the body. Apply decals if desired. Place the body onto the
body posts. Place an included body pin onto each of the
body posts to secure the body to the chassis.
FINISHING THE OVERDRIVE ST
