Electrical installation

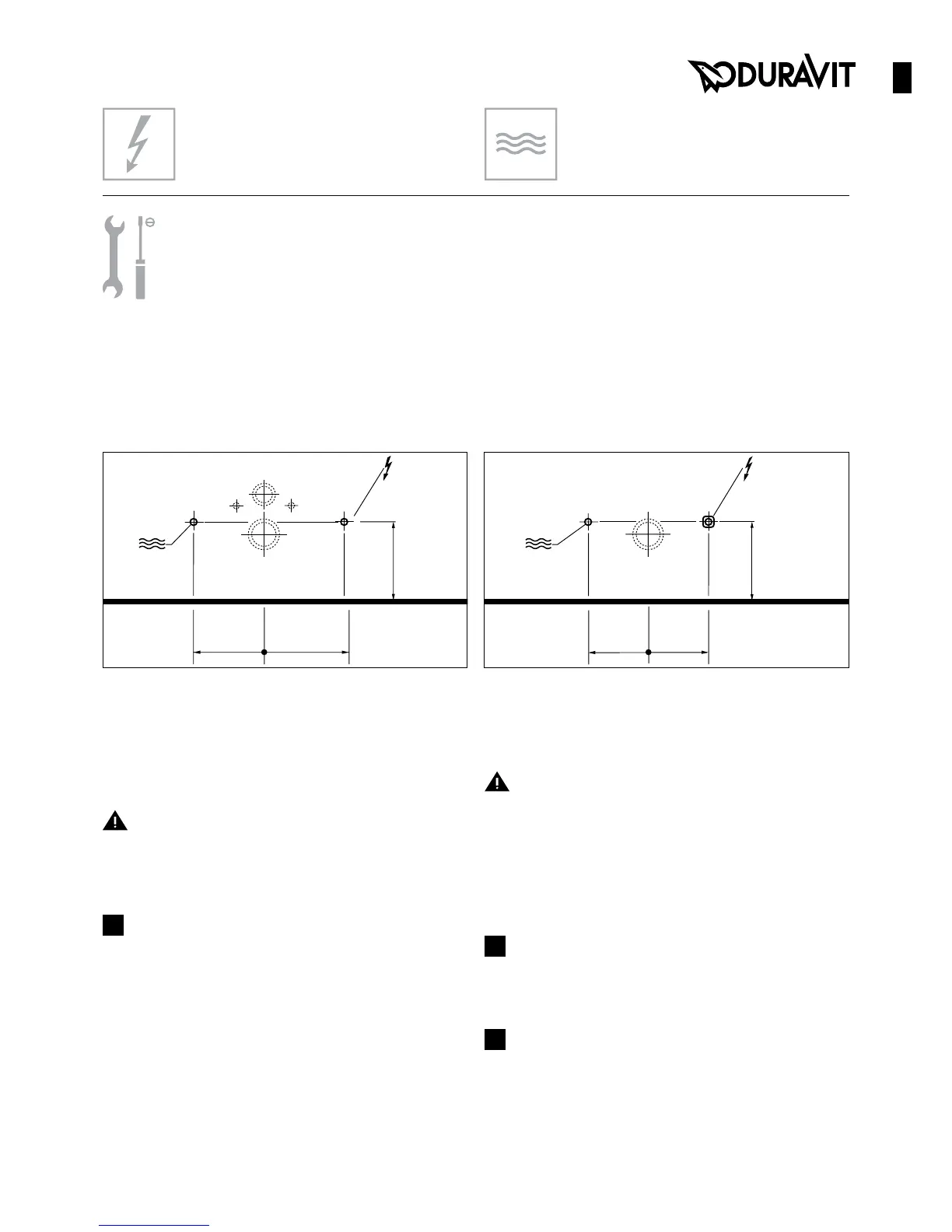

Position of electrical / water connection with
wall-mounted WC
Pre-Installation
> Lay a permanent power supply line:
• Connect a separate upstream circuit breaker
• Connect an upstream residual current device (RCD)
separating all poles
DANGER!
Risk of fatal electric shock.
> Do not use any unearthed extension cables when
connecting the Shower WC.
20
Connecting the Shower WC (Diagram 20)
NOTE! Avoiding property damage.
> Only connect the Shower WC to a socket with the
stipulated connected loads.
> Ensure that the power plug is accessible to users
after the installation.
#610000 00 1 04 0100 Power supply
120V ~ 60Hz
Rated power 1.33 KW
#610000 00 1 06 0100 Power supply
110V ~ 60Hz
Rated power 1.06 KW
Circuit breaker I
N
= 16 A
RCCB I
N
= 30 mA
Protection type IP X4
Position of electrical / water connection with
flor-standing WC
Cold water DN 15(1/2")
Water pressure 0.07 - 0.75 MPa
(0.7 - 7.5 bar)
Water hardness max. 2,4 mmol/l
NOTE!
> Install a water water softener with water
hardness ≥ 2,. mmol/l (≥ 14° dH and/or
24° fH).
Water installation
Pre-Installation
> Install the water connection and water outlet in the
specified areas.
DANGER!
Health risk and potential product damage.
> Supply the WC with cold drinking water from the main
water system.
> Do not connect any waste water, grey water, industrial
water, sea water or other untreated or semi-treated
water.
10
Connecting water to a wall-mounted WC
(Diagram 10)
NOTE! Avoiding any malfunctions!
> Only use the water supply hoses provided.
17
Connecting water to a free-standing WC
(Diagram 17)
NOTE! Avoiding any malfunctions!
> Only use the water supply hoses provided.
IG ½”
..
230-320 mm
9“-12 ⅝“
265-300 mm
