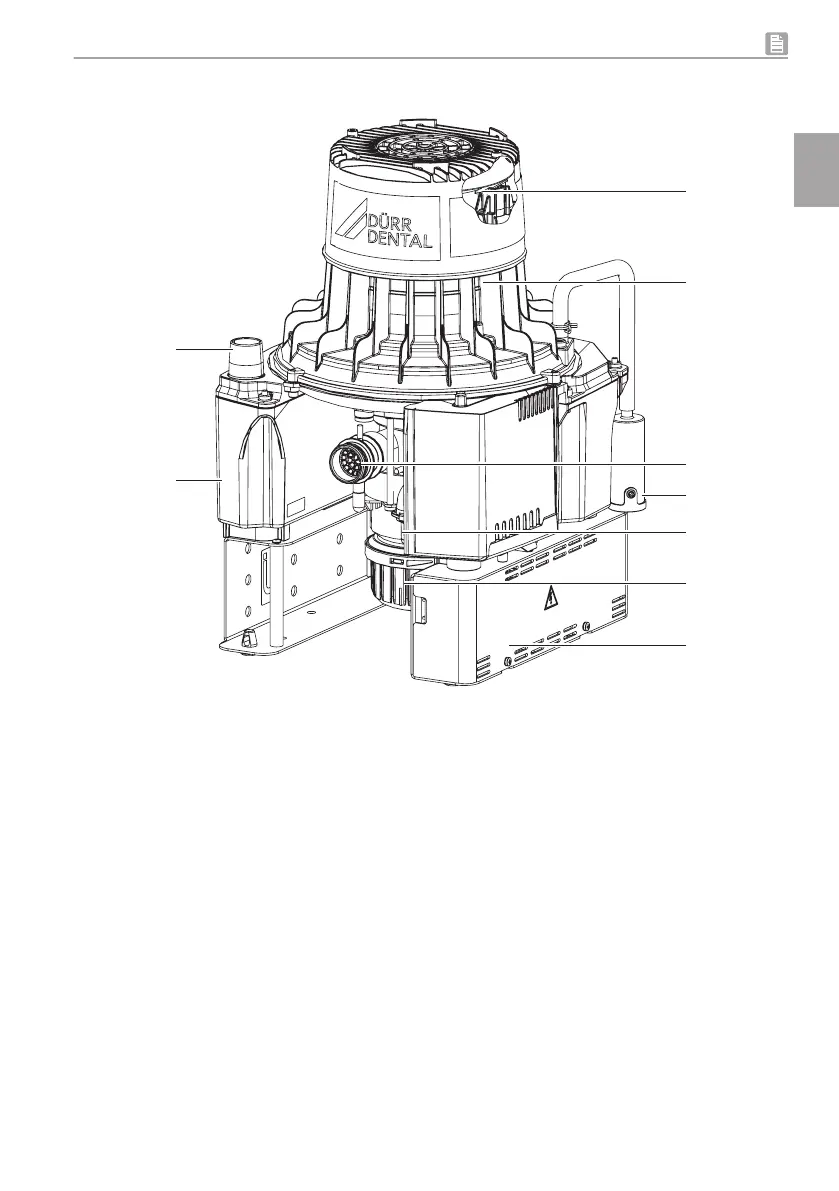

5 Operation
1 Motor
2 Inlet connection with protective coarse filter
3 Auxiliary air nozzle
4 Waste water connection
5 Amalgam collecting container
6 Control electronics
7 Exhaust air muffler
8 Exhaust air connection
9 Rotational speed sensor
The mixture of liquids, solid particles and air drawn in passes through the inlet connection and into the
suction unit. The coarse filter holds back the solid particles.
Inside the separation unit, the aspirated fluids and solid particles pass through a two-stage separation
system and are separated from the suction air. This separation system consists of a cyclone separator
and a separation turbine.
The aspirated mixture flows into the cyclonic separator, where it is set into a spiral motion. In this first
stage, the resulting centrifugal forces force the fluid constituents and any remaining solid particles
against the outside wall of the separation chamber of the cyclone separator. This initially only effects a
"coarse separation" of the fluid.
In the subsequent second stage, the separation turbine effects "fine separation" of the remaining liquid
from the air flow that has carried it to this point.
