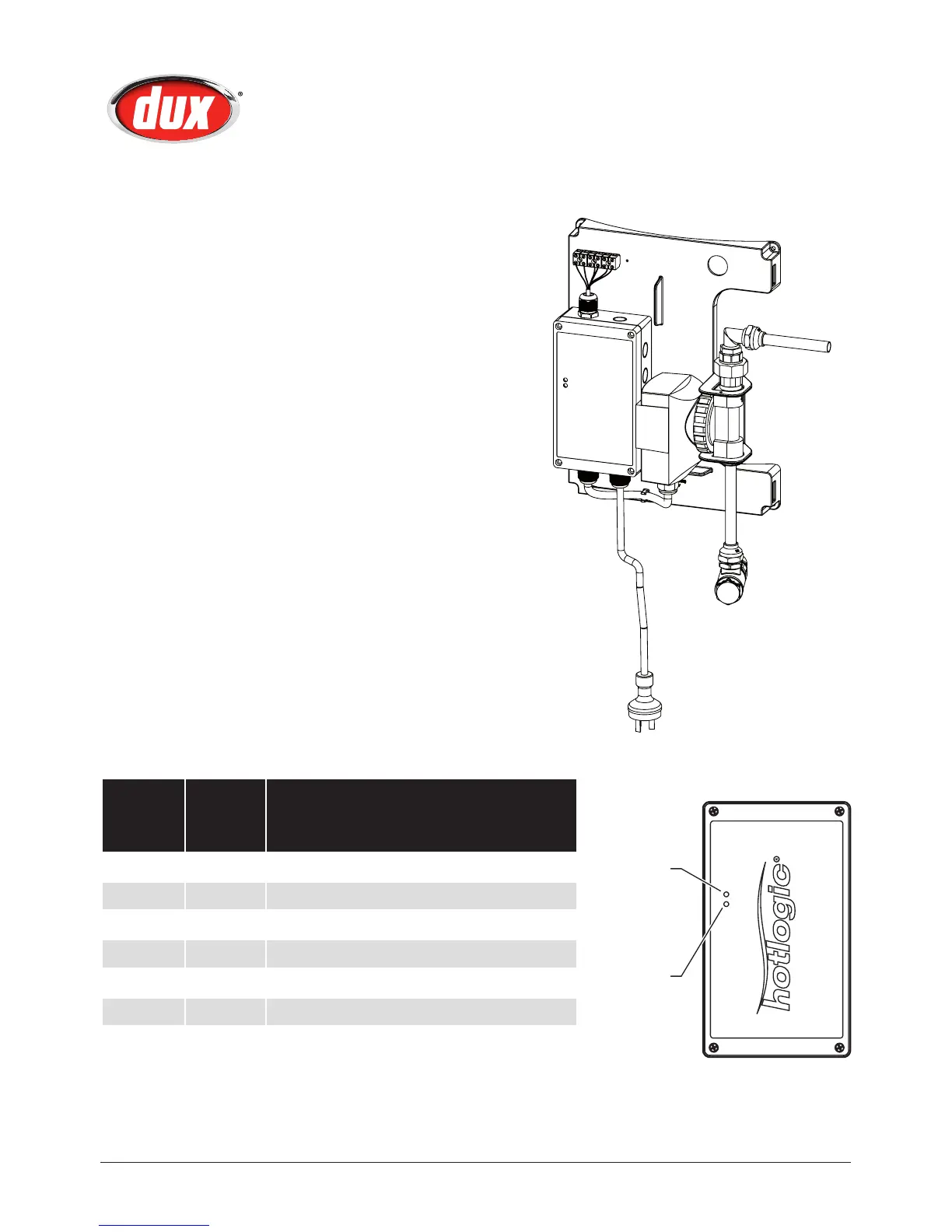

Hotlogic Controller
The Hotlogic controller should be
plugged in to a weatherproof approved
power outlet for 10amps, 230 to 250
volt, 50Hz supply.
Hotlogic Controller Diagnosis
Codes
The Hotlogic controller must be wired
according to the diagram shown right.
During normal operation, the Hotlogic
controller will display only green LEDs.
If there are any red status lights visible,
see the tables below for an explanation.
For models 2F136S, 3F136S,
4F136S:
Power
LED
(Green)
Status
LED
(Red)
Explanation
Alternating Power on initialisation (LEDs blink alternately)
On Off All sensors normal, pump off
On On All sensors normal, pump on or booster on
Flashing Off Sensor error (collector or tank)
Off Flashing Tank bottom sensor error
Flashing Flashing Tank top sensor error
Note: If any sensor is open circuit, the system will indicate a
Green only flashing LED.
Hotlogic Controller
COLLECTOR
SENSOR
BOTTOM
SENSOR
TOP
SENSOR
MODULE
SENSOR
Power
LED
Status
LED
