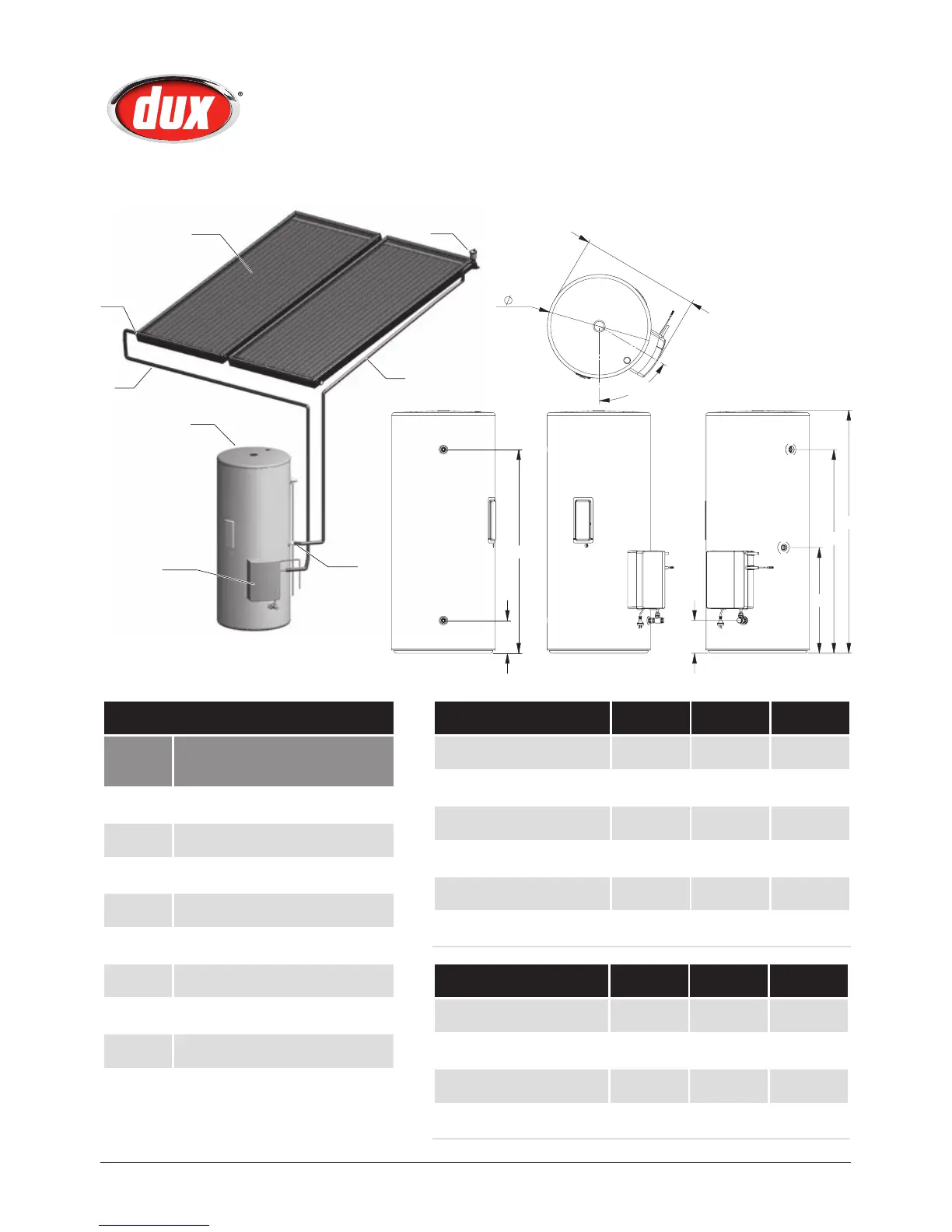

Owner’s Manual – Dux Electric Boosted Solar
7
H3161 025248 Rev. D
1
7
5
2
3
4
8
6
FRONT VIEW
E
F
D
A
RIGHT VIEW
E
D
LEFT VIEW
59.5°
C
B
TOP VIEW
Specifications 250L 315L 400L
Storage Capacity (L) 259 324 416
Hot Water Delivery (L) 250 315 400
Net Weight Empty (kg) 81 94 114
Relief Valve Pressure (kPa) 1000 1000 1000
Dimensions (mm) 250L 315L 400L
Tank Height (A) 1444 1754 1704
Tank Diameter (B) 617 617 705
Tank Width (C) 712 712 801
Outlet (D) 1211 1521 1445
Inlet (E) 195 195 219
Solar Return (F) 628 838 642
System Components
Item
Number
Description
1 Solar electric tank assembly
2 Solar collector
3 Solar collector flow connection
4 Solar collector flow pipe
5 Automatic air vent valve
6 Solar collector return pipe
7 Non return valve
8 Solar module
Specifications
