Owner’s Manual – Dux Electric Boosted Solar
13
H3161 025248 Rev. D
Connections To The Tank
Supplied in the collector rail kit are the
following:
• a collector sensor
• a 20m collector sensor cable.
Full installation instructions for the
temperature sensor are in the Installer’s
Guide, included inside the water heater’s
carton.
Note: Ensure that the temperature
sensor cable does not come in contact
with the hot collector return pipe.
Note: Care must be taken to ensure
that all roof penetrations are sealed to
prevent water ingress and to comply
with all local regulations.

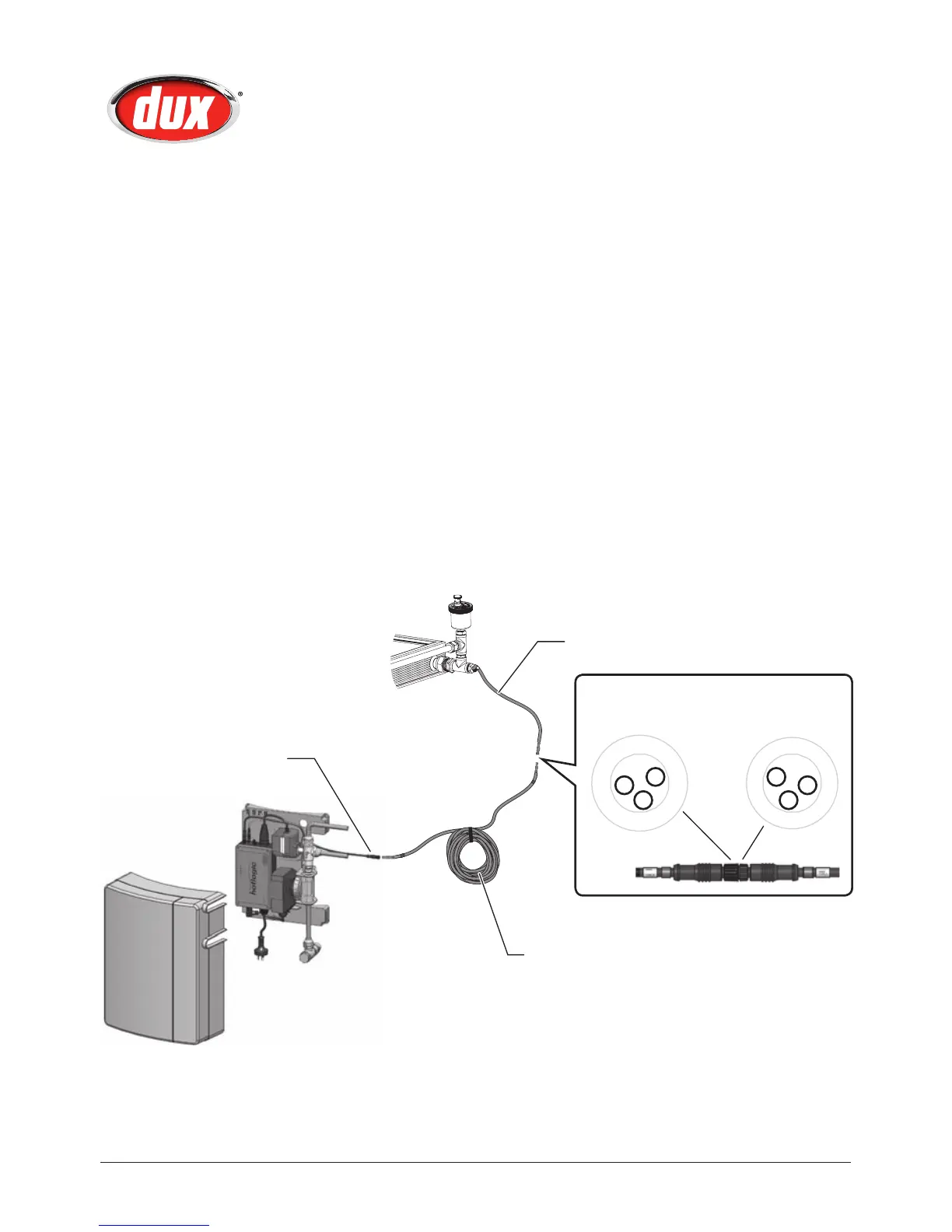

Temperature Sensor
Collector sensor connection for
models 2F136SD, 3F136SD, 4F136SD
(supplied in collector rail kit)
Caution: Sensor connector pins
align one way only
1
2
3
3
2
1
Collector temperature sensor cableCollector temperature sensor cable
20m collector temperature sensor
cable (supplied in collector rail kit)
