DV Systems C10 User Manual

C1015-II-C
Jun ‘21
- 2 -
18”
[458 mm]

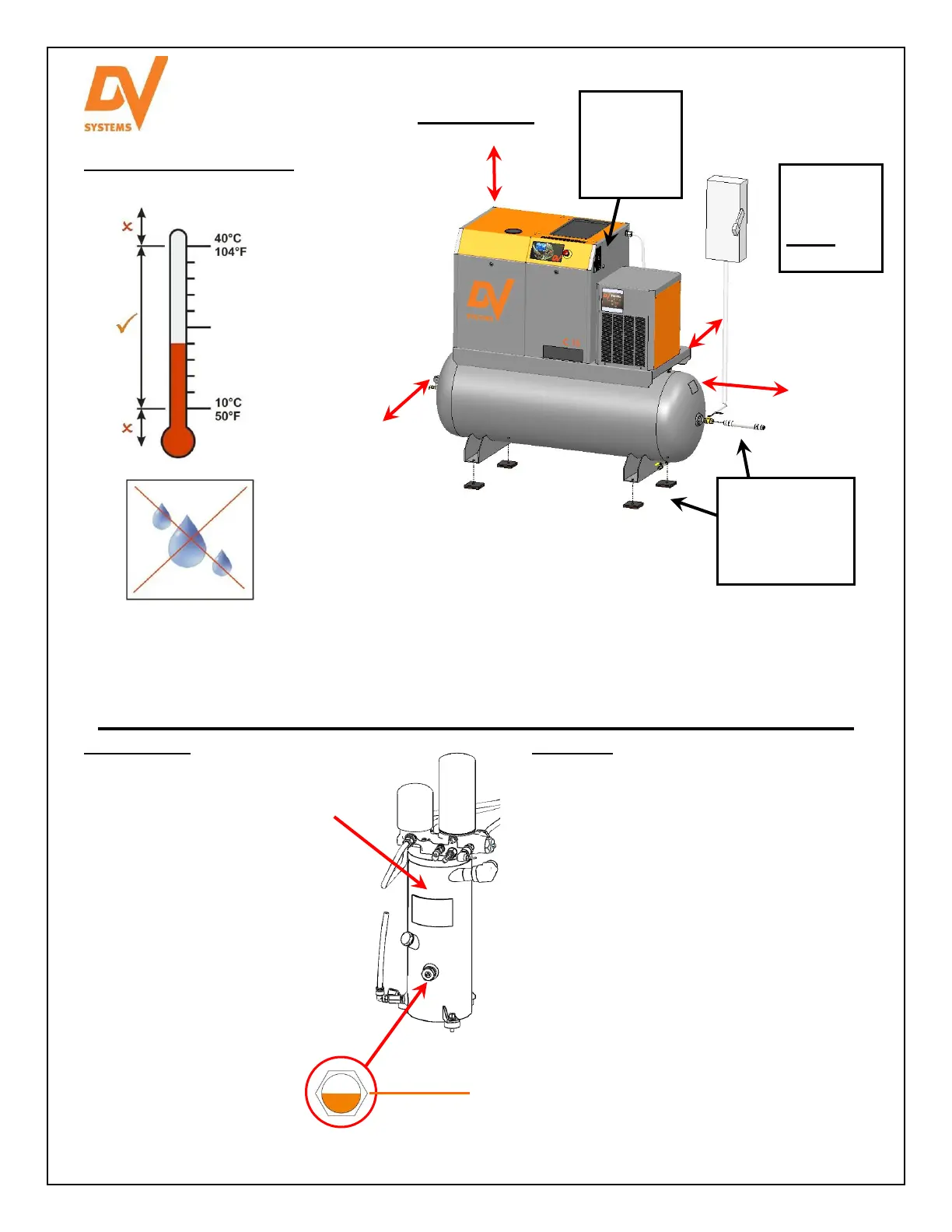

Quick Start
Mechanical Installation.
(Refer to Page 6)
Lubrication. Rotation.
(Refer to Page 8) (Refer to Page 10)
 The Unit must be located indoors, in a dry, clean,
cool, dust free, and well ventilated area.
 Allow a minimum 18” (458 mm) around and 36”
(915 mm) above Unit.
 The ambient temperature should be between
10°C and 40°C (50°F and 104°F).
 Ensure that the floor under the Unit is smooth, level and
capable of bearing the weight of the Compressor.
 If installed in a compressor room, ensure that the room is
adequately ventilated.
 The unit must be anchored to the floor using isolator pads.
Note: Dimensions indicated are typical for
all variations of ‘C Series’ Units, ie
base-mounted and tank-mounted.
Correct
Oil Level
 Before starting the Unit for
the first time, ensure there
is oil in the Reservoir.
 The Unit is equipped with
the Sight Glass.
 The oil level should be
close to the center of the
Oil Sight Glass, while at
rest.
 Check the oil level after
the Unit has been at rest
for a minimum of 5
minutes.
 Units are equipped with Advanced Phase
Detection feature which prevents Units
from rotating in the reversed direction.
 An ‘E:0090 Phase Sequence’ Error will
appear on the Controller Screen if the
phase sequence is incorrect. If this
occurs, simply switch the incoming leads
‘L1’ and ‘L3’ at the Control Panel.
Reservoir
36”
[458 mm]
18”
[458 mm]
Fusible
Disconnect
Refer to
page 9 for
proper sizing
18”
[458 mm]
Unit
Nameplate
Model No.
Serial No.
Unit voltage
Installation Kit
IK515
Flex-Hose &
Vibration Isolators
(sold separately)
