D20, D20VSD, D20TD, D20TDVSD-C
Feb ‘14
- 2 -
18”
36”
Quick Start

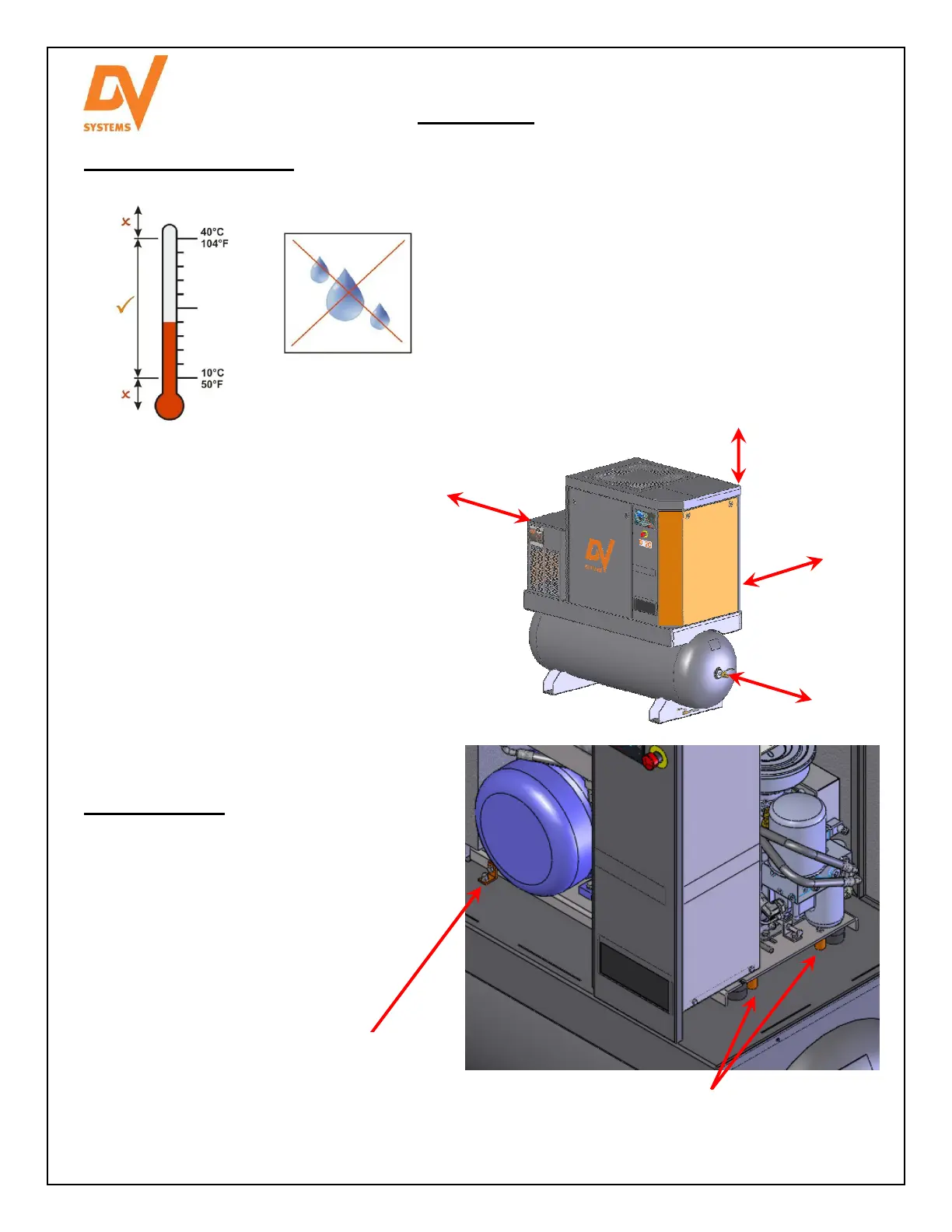

Mechanical Installation.
(Refer to Page 7)
Shipping Cleats
The Unit should be located in a dry, clean, cool,
dust free, and well ventilated area.
Allow a minimum 18” around and 36” above Unit.
The ambient temperature should be between
10°C and 40°C (50°F and 104°F).
Ensure that the floor under the Unit is smooth,
level and capable of bearing the weight of the
Compressor.
If installed in a compressor room, ensure that
the room is adequately ventilated
Note: Dimensions indicated are typical for all
variations of D20 Series’ Units.
The ‘D20 Series’ Screw Units are
shipped with (3) Shipping Cleats
painted in orange that must be
removed prior to operating the
Unit.
(2) Cleats are located at the Air end /
VFD Housing Mounts.
(1) Cleat is located at the Motor
(1) Cleat at Motor
(2) Cleats at Air end / VFD Housing Mounts
