The flat edge is for
the wrench.
16.
17.
18.

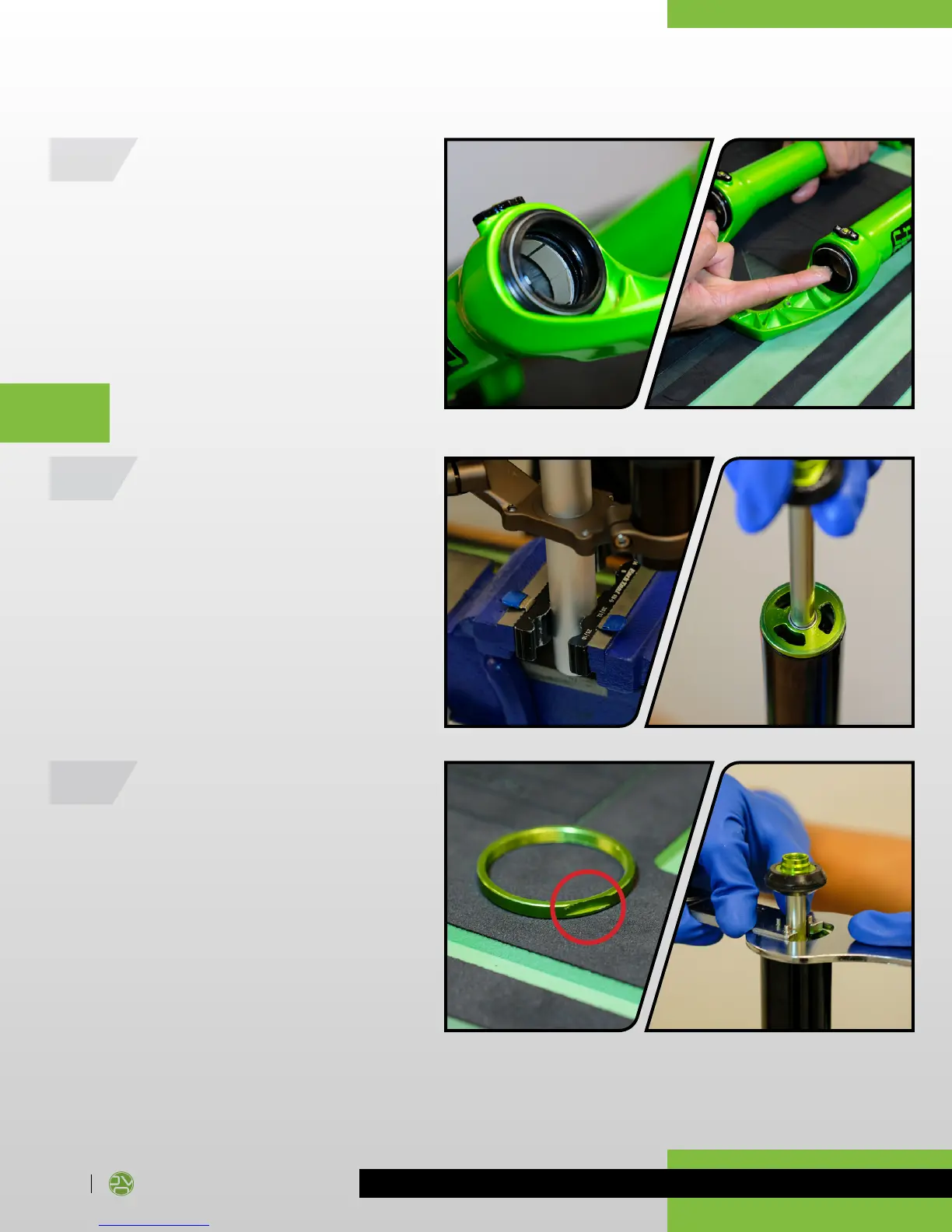

The foam rings should sit flush in the casting.
Make sure there are no gaps. Apply a thin layer of
grease to the inner lips of the seal.
Clamp the steer tube in the vice with 30mm shaft
clamps. Pull the air shaft upward.
To loosen the lock ring, use an 18mm wrench and
a set of pin spanners. The wrench goes on the flat
surface of the lock ring shown in the left image.
Hold the lock ring with the wrench, then un-thread
the plug with the pin spanners with
counter-clockwise rotations.
