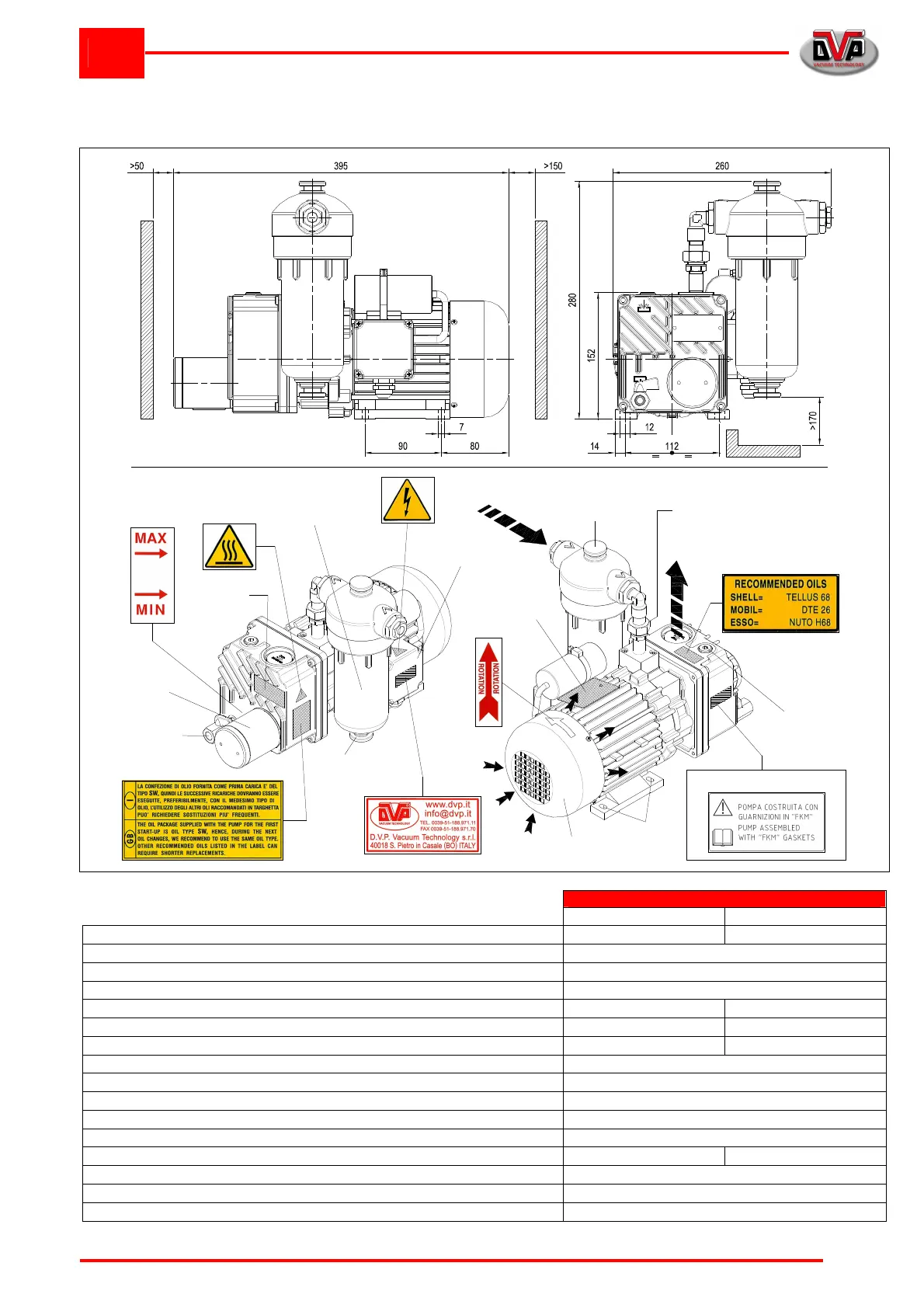

3.3 DIMENSIONS AND CHARACTERISTICS
3.3.1 Model: LB.5WR
Attachment
point
Motor rating
plate
Motor fan
guard
Drainage
filter valve
Intake
Oil drainage
valve
Oil filler
plug
Air
outlet
Oil
viewer
Information
plate
Reset
pressure
valve
Filter fitting
connection
Terminal
board
Transparent
filter cover
Only on "FKM" versions
LB.5WR
TECHNICAL SPECIFICATIONS
50 Hz 60 Hz
Inlet capacity m³/h 5 6
Final pressure (Abs.) mbar - hPa 10
Max inlet pressure for water vapour mbar - hPa 30
Max water vapour pumping rate Kg/h 0,11
Motor power
kW (1~ / 3~)
0,25 / 0,37 0,25 / 0,45
Nominal r.p.m. n/min 1400 1700
Noise level (UNI EN ISO 2151) (K 3dB) dB(A) 58 60
Weight
kg (1~ / 3~)
14,5 / 12,5
Type of oil cod. DVP SW60 (BV68)
Oil quantity dm³ 0,25
Pump Intake / Outlet “G 1/8
Continuous-duty working renge (Abs.) mbar - hPa 400 ÷ 10
Operating temperature (room temp. 20°C) °C 65 ÷ 70 70 ÷ 75
Required room temp. for place of installation °C 12 ÷ 40
Ambient temperature for storage/transport °C -20 ÷ 50
MAX humidity / altitude 80% / 1000m a.s.l. *
(*) Please contact the Manufacturer if environmental conditions are different from those prescribed.
