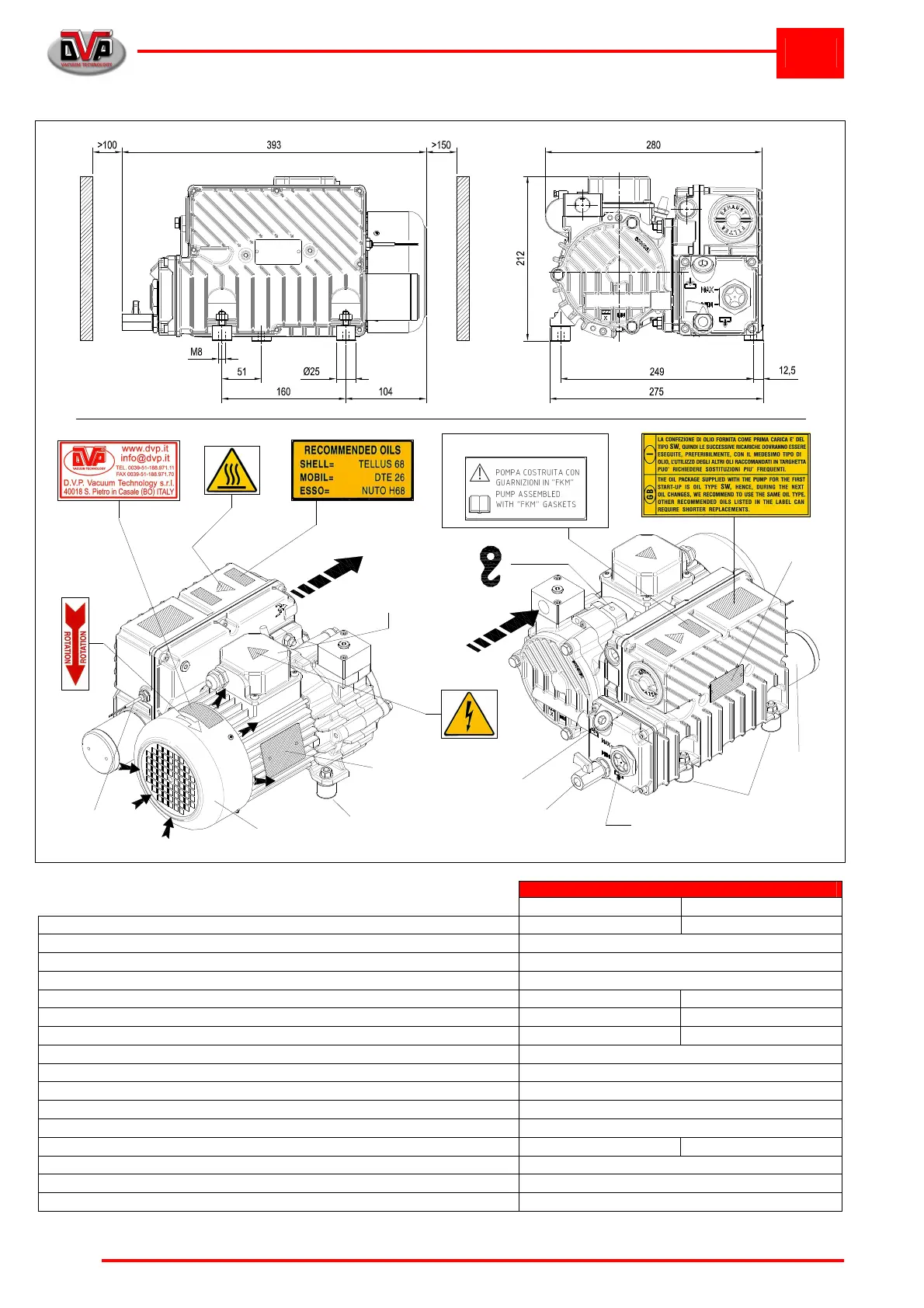

3.3.2 Model: LC.25WR
Oil filler plug
Oil sight
glass
Terminal
board
Level switch
Oil
viewer
Motor fan
guard
Attachment
point
Attachment
point
Oil drainage
valve
Motor
rating
plate
Information
plate
Intake
Air
outlet
M8
Only on "FKM" versions
LC.25WR
TECHNICAL SPECIFICATIONS
50 Hz 60 Hz
Inlet capacity m³/h 25 29
Final pressure (Abs.) mbar - hPa 2
Max inlet pressure for water vapour mbar - hPa 50
Max water vapour pumping rate Kg/h 0,9
Motor power
kW (1 ~ / 3 ~ )
0,75 / 0,75 0,90 / 0,90
Nominal r.p.m. n/min 1400 1700
Noise level (UNI EN ISO 2151) (K 3dB) dB(A) 62 65
Weight
kg (1 ~ / 3 ~ )
26,5 / 25,5
Type of oil cod. DVP SW60 (BV68)
Oil quantity Min÷Max dm³ 0,8 ÷ 1,1
Pump Intake / Outlet “G 1/2 / 1/2
Continuous-duty working renge (Abs.) mbar - hPa 400 ÷ 2
Operating temperature (room temp. 20°C) °C 80 ÷ 85 85 ÷ 90
Required room temp. for place of installation °C 12 ÷ 40
Ambient temperature for storage/transport °C -20 ÷ 50
MAX humidity / altitude 80% / 1000m a.s.l. *
(*) Please contact the Manufacturer if environmental conditions are different from those prescribed.
