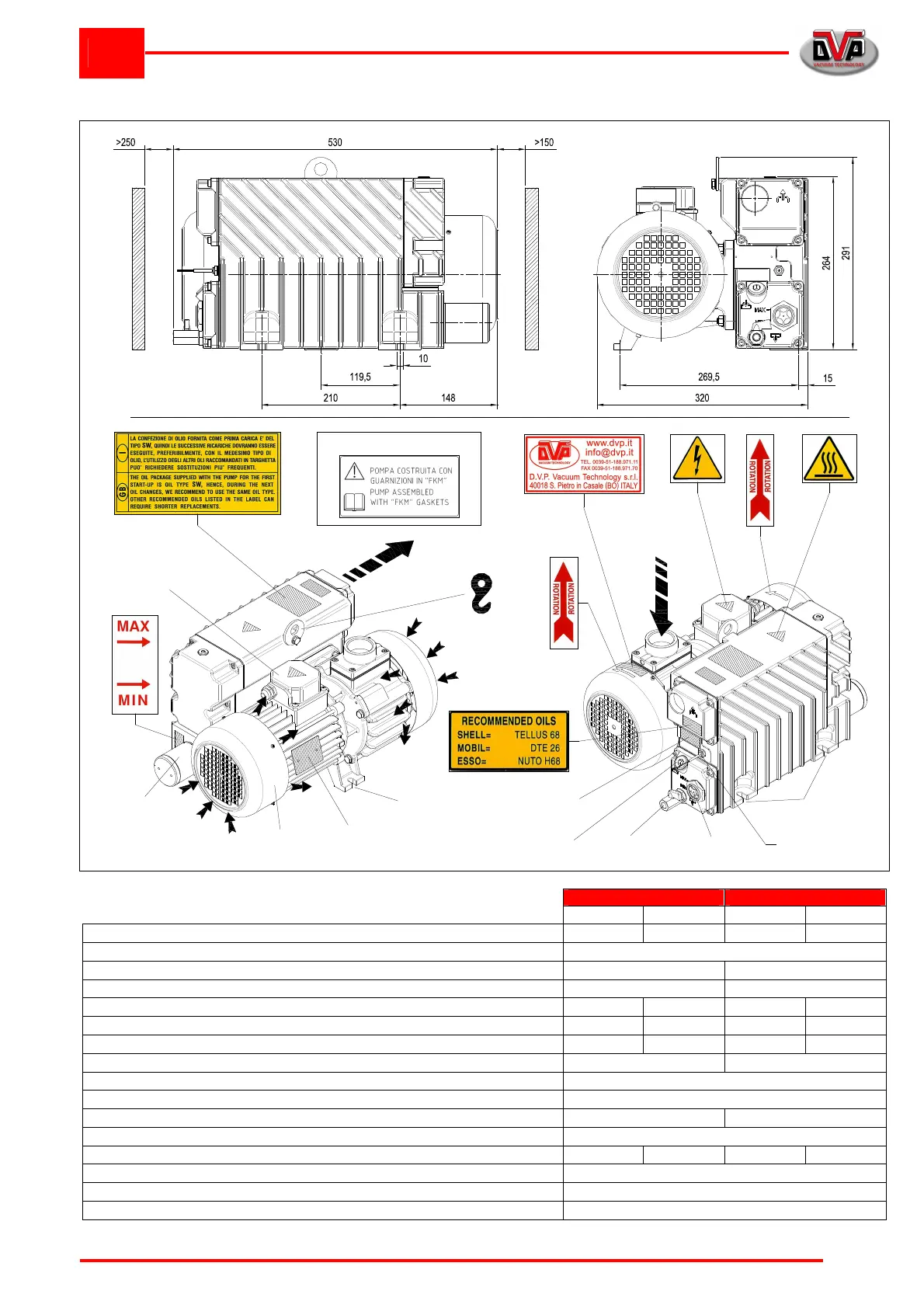

3.3.3 Model: LB.40WR – LB.60WR
Attachment
point
Motor fan
guard
Motor
rating plate
Air
outlet
Intake
Attachment
point
Terminal
board
Oil
viewer
Oil sight
glass
Oil filler plug
Oil drainage
valve
Level switch
Information
plate
Only on "FKM" versions
LB.40WR LB.60WR
TECHNICAL SPECIFICATIONS
50 Hz 60 Hz 50 Hz 60 Hz
Inlet capacity m³/h 40 48 60 75
Final pressure (Abs.) mbar - hPa 2
Max inlet pressure for water vapour mbar - hPa 40 50
Max water vapour pumping rate Kg/h 1,2 2,1
Motor power
kW (3 ~ )
1,1 1,35 1,5 1,8
Nominal r.p.m. n/min 1400 1700 1400 1700
Noise level (UNI EN ISO 2151) (K 3dB) dB(A) 66 68 68 70
Weight
kg (3 ~ )
42,5 43,5
Type of oil cod. DVP SW60 (BV68)
Oil quantity MIn÷Max dm³ 1,1 ÷ 1,7
Pump Intake / Outlet “G 1 / 1-1/4 1-1/2 / 1-1/4
Continuous-duty working renge (Abs.) mbar - hPa 400 ÷ 2
Operating temperature (room temp. 20°C) °C 70 ÷ 75 75 ÷ 80 75 ÷ 80 80 ÷ 85
Required room temp. for place of installation °C 12 ÷ 40
Ambient temperature for storage/transport °C -20 ÷ 50
MAX humidity / altitude 80% / 1000m a.s.l. *
(*) Please contact the Manufacturer if environmental conditions are different from those prescribed.
