WHEATON® R2P
™
2.0 Bottom Drive Roller Apparatus
40
DWK Life Sciences | 856.825.1100 | www.dwk.com | P/N 50099817 Rev. 11/2021
Network Selection
Refer to section 3, the Factory screen, the Network Protocol icon and the Communications Protocol
screen.
RS-422/485 Network
The RS-422/485 network is a full duplex network. Up to 32 units can be connected to a single
network line. The unit pin-out for the RS-422/485 network is shown below:

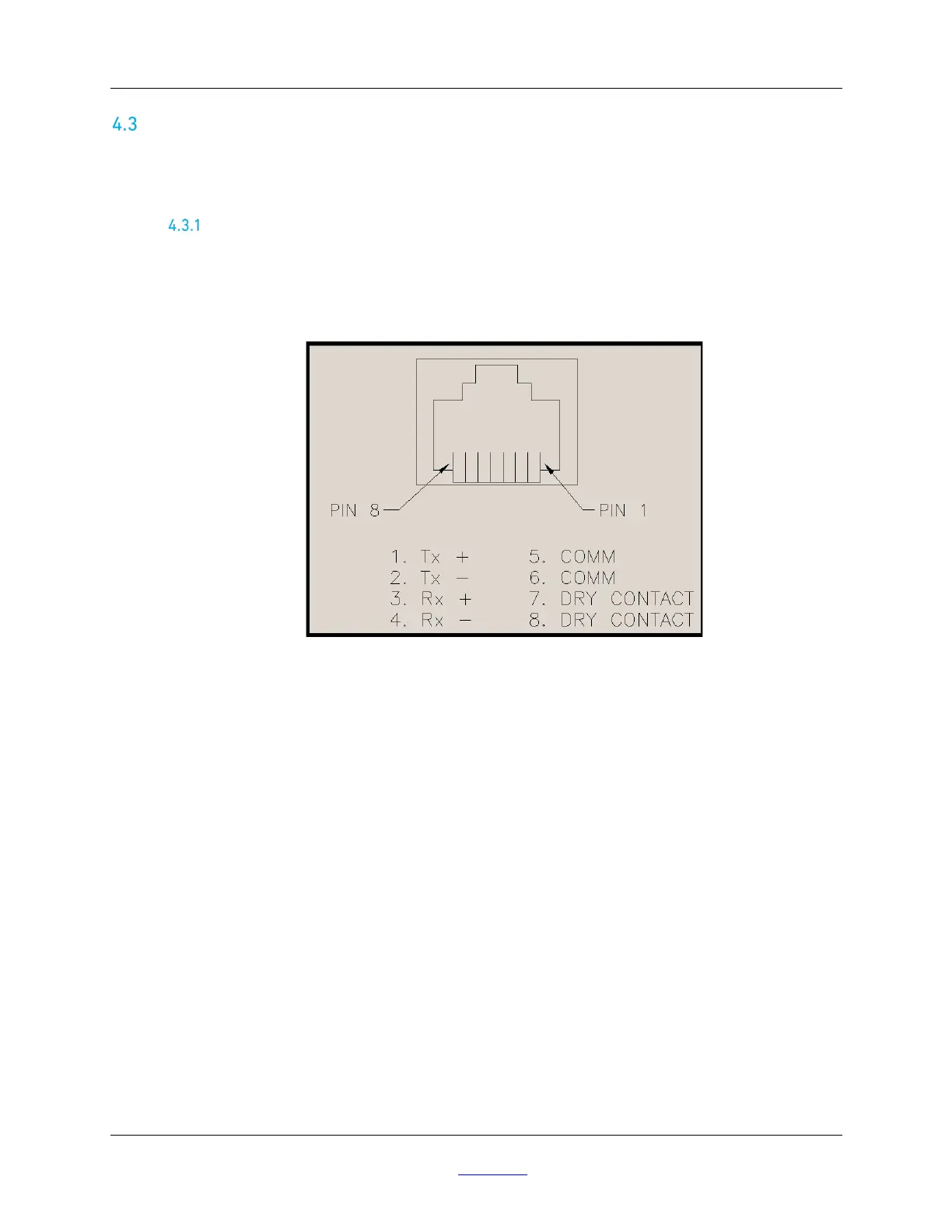

FIGURE 27 – R2P 2.0 RS-422/485 NETWORK CONNECTIONS
In addition to the pins for the RS-422/485 communications, two pins (7 and 8) are reserved for a dry
contact connection. In normal operation, the dry contact pins are closed. During an alarm condition,
the dry contacts are open. Alarm conditions that will activate the dry contact pins are described in
section 3.3.4.
