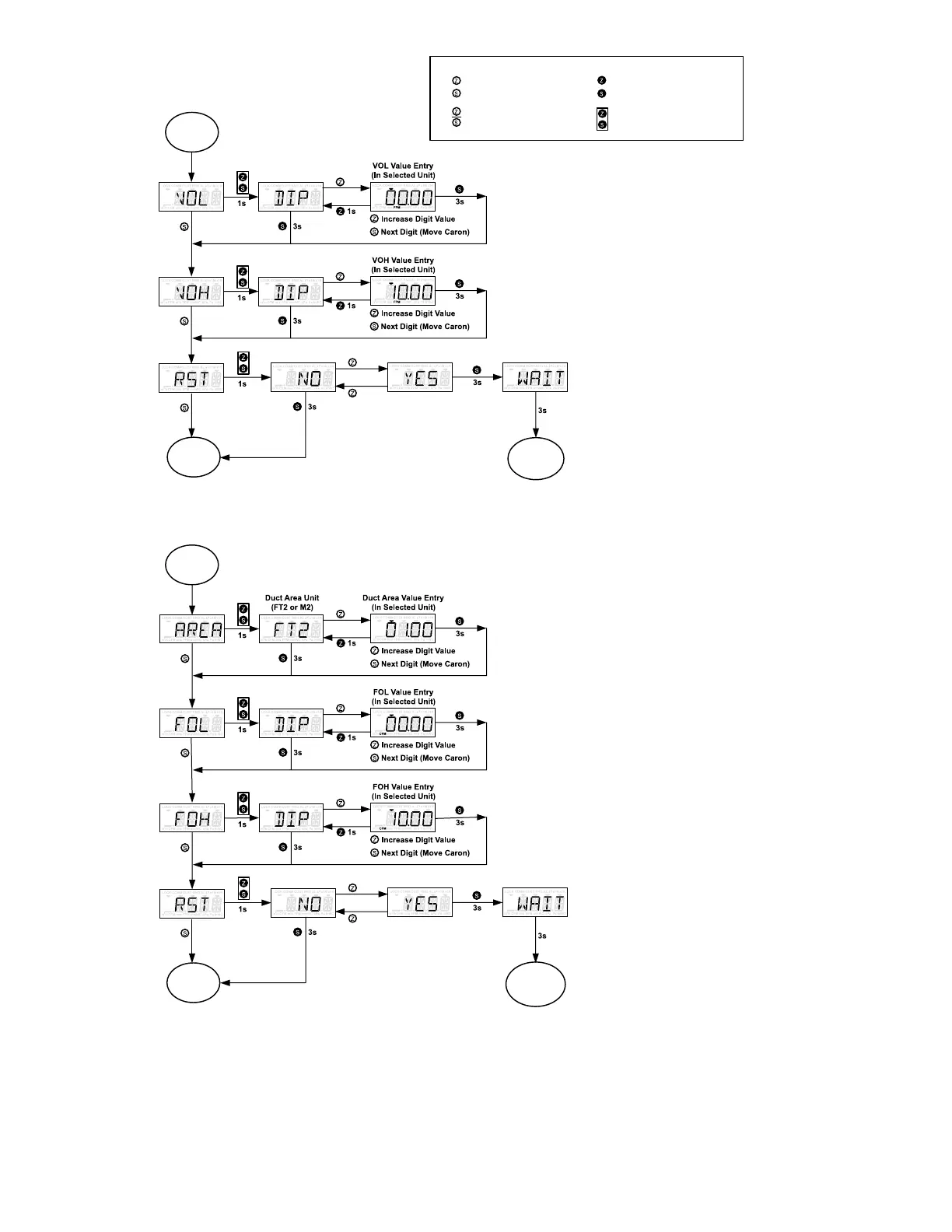

Dwyer Instruments Magnesense Pro MSX Series - Velocity Settings Flowchart; Flow Settings Flowchart

VELOCITY MENU
(OUTPUT
LOW MENU)
VELOCITY MENU
(OUTPUT
HIGH MENU)
RESET MENU
PRESS ZERO/VALUE BUTTON
PRESS SPAN/DIGIT BUTTON
HOLD ZERO/VALUE BUTTON
HOLD SPAN/DIGIT BUTTON
PRESS EITHER ZERO/VALUE
OR SPAN/DIGIT BUTTON
HOLD BOTH ZERO/VALUE
AND SPAN/DIGIT BUTTON
MENU LEGEND
HOME
SCREEN
POWER ON
(RESET)
VELOCITY
MENU
POWER ON
(RESET)
FLOW MENU
(AREA)
FLOW MENU
(OUTPUT LOW MENU)
FLOW MENU
(OUTPUT HIGH MENU)
RESET MENU
HOME
SCREEN
FLOW
MENU
MSX PRO VELOCITY SETTINGS FLOWCHART
MSX PRO FLOW SETTINGS FLOWCHART
