BlueWave® MX-MIM User Guide

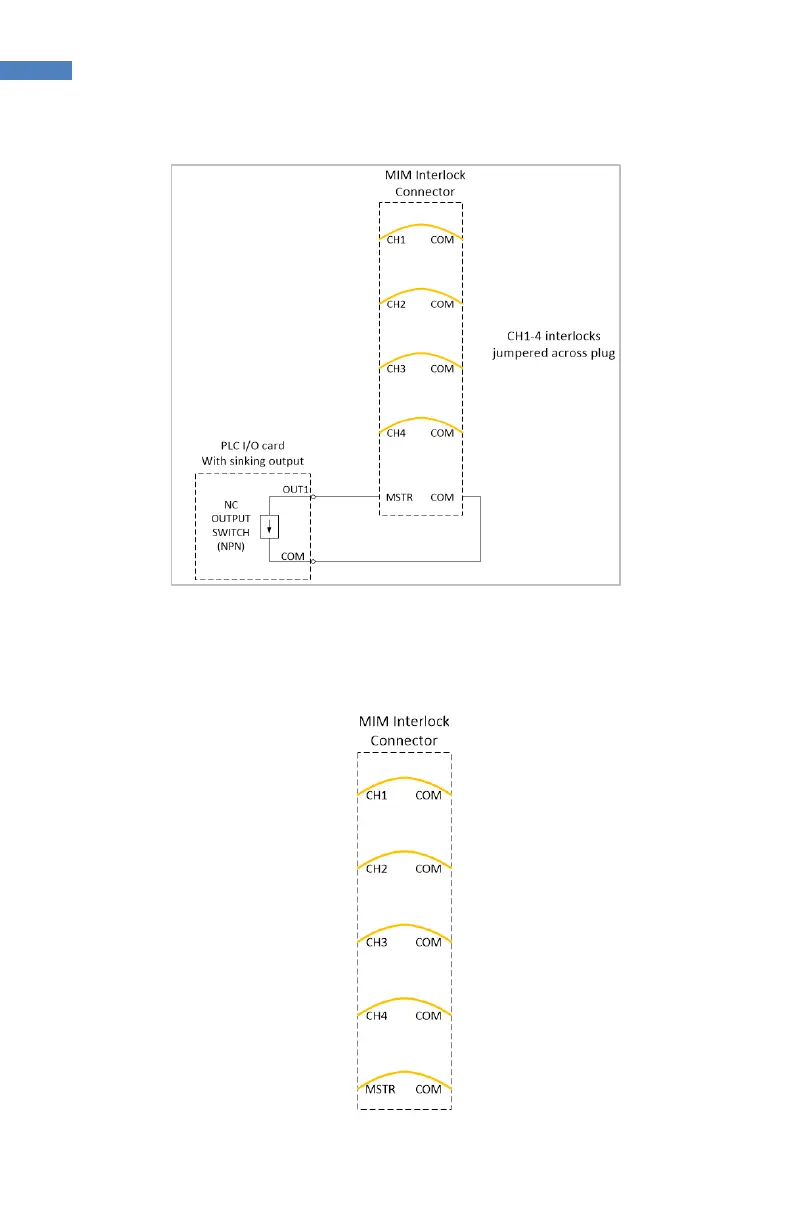

Figure 4. Controlling 4-Emitter Channels with Master Interlock Alone
Figure 5. All Emitter Channels and Master Interlock Defeated with
Jumpers
