Dymax ECE Series UV Flood-Lamp Systems User Guide

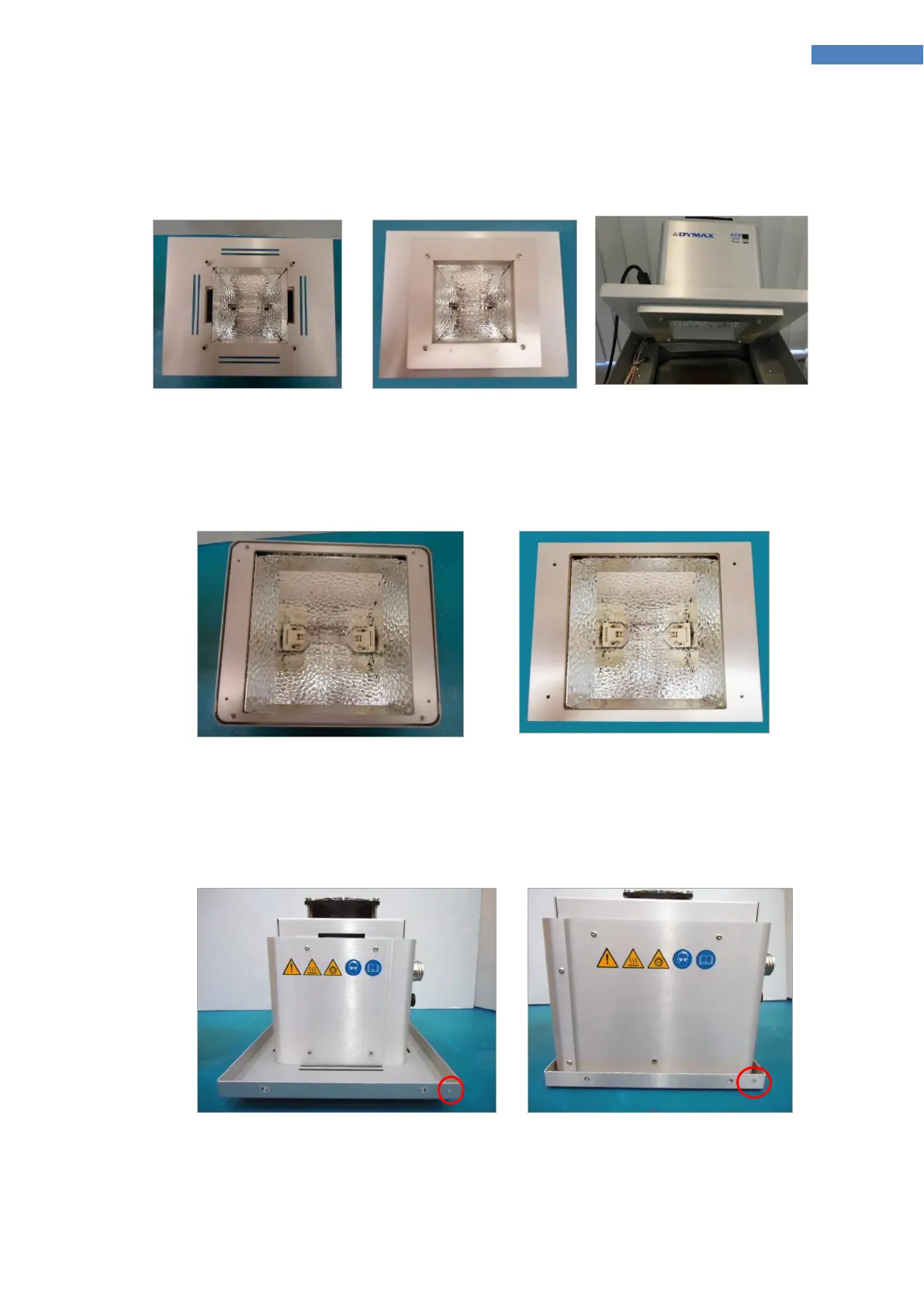

Figure 4. ECE 5000
Reflector Housing
with Mounting Plate
Figure 5. ECE 5000
Reflector Housing with
Mounting Plate and Air
Plenum
Figure 6. Complete
Assembly
 ECE 2000 – Place the Mounting Plate for the ECE 2000 onto the Reflector Housing. Attach
the Mounting Plate with four M4 x 8 mm screws. (Figure 8)
Figure 7. ECE 2000 Reflector Housing
with Bracket
Figure 8. ECE 2000 Reflector Housing
with Mounting Plate Installed
6. Place the Reflector Housing/Mounting Plate Assembly into the Shutter.
NOTE: One side of the Mounting Plate has a third screw hole (Figure 9). When in the correct
position, this screw hole will be at the rear of the Shutter.
Figure 9. Reflector Housing/Mounting Plate Assembly, Third Screw Hole
ECE 5000 ECE 2000
7. Using the M4 x 8 mm screws provided with the Shutter (Figure 10), secure the Light Shield and
Shutter to the Reflector Housing Mounting Plate Assembly.
