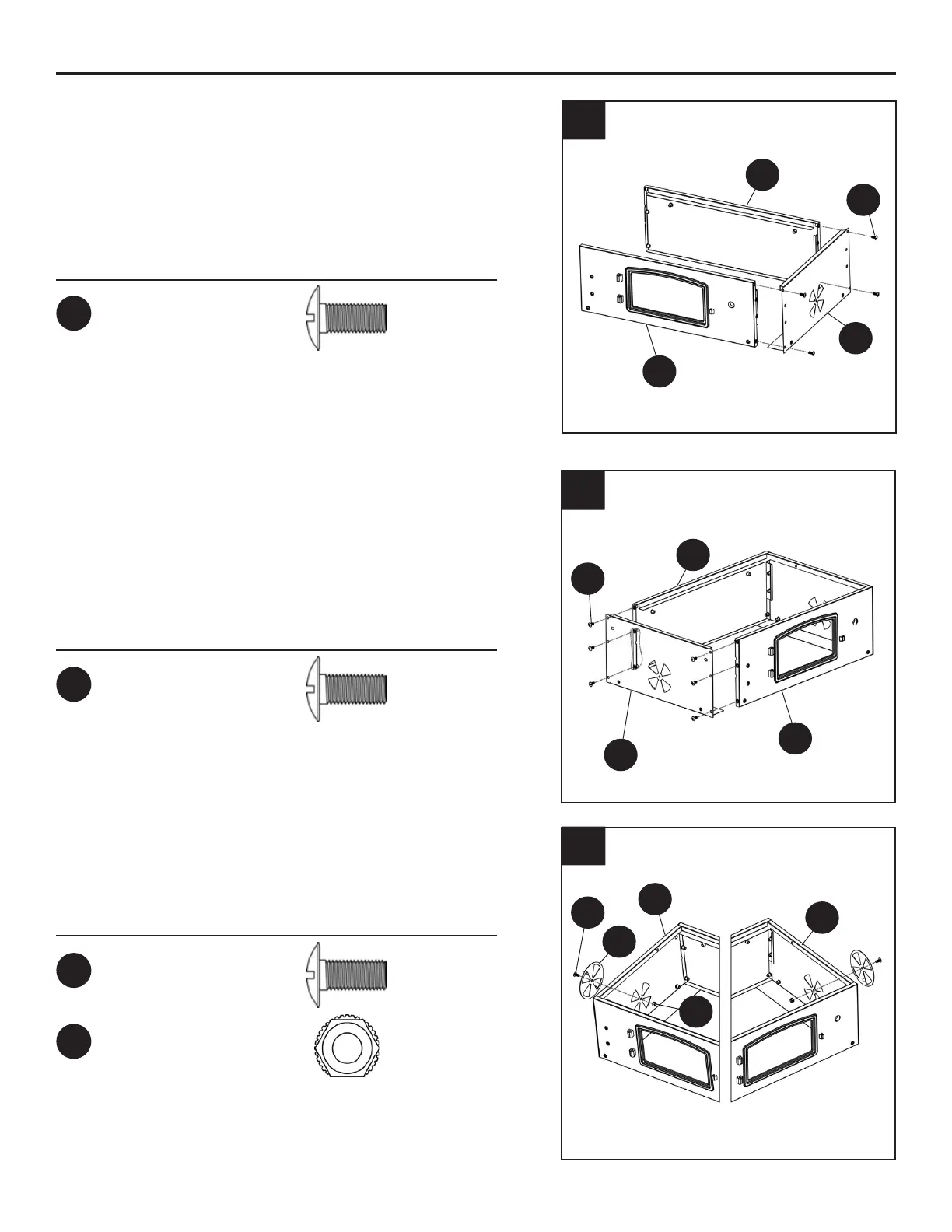

ASSEMBLY INSTRUCTIONS
3. Attach side damper (Y) to left panel of the
firebox (E) and right panel of the firebox (H) usi
two M6x15 screw (AA) and two M6 nut (EE).
2. Attach left panel of the firebox (E) to front panel
of the firebox (F) and back panel of th
firebox (G) using six M6x15 screw (AA)
Hardware Used
Hardware Used
1. Attach right panel of the firebox (H) to front pane
of the firebox (F) and back panel of the fireb
(G) using four M6x15 screw (AA).
Hardware Used
M6x15 Screw
x 4
AA
1
2
3
F
EE
E
G
H
AA
Y
M6x15 Screw
x 6
AA
F
G
H
AA
E
AA
M6x15 Screw
x 2
AA
M6 Nut
x 2
EE
