ASSEMBLY INSTRUCTIONS

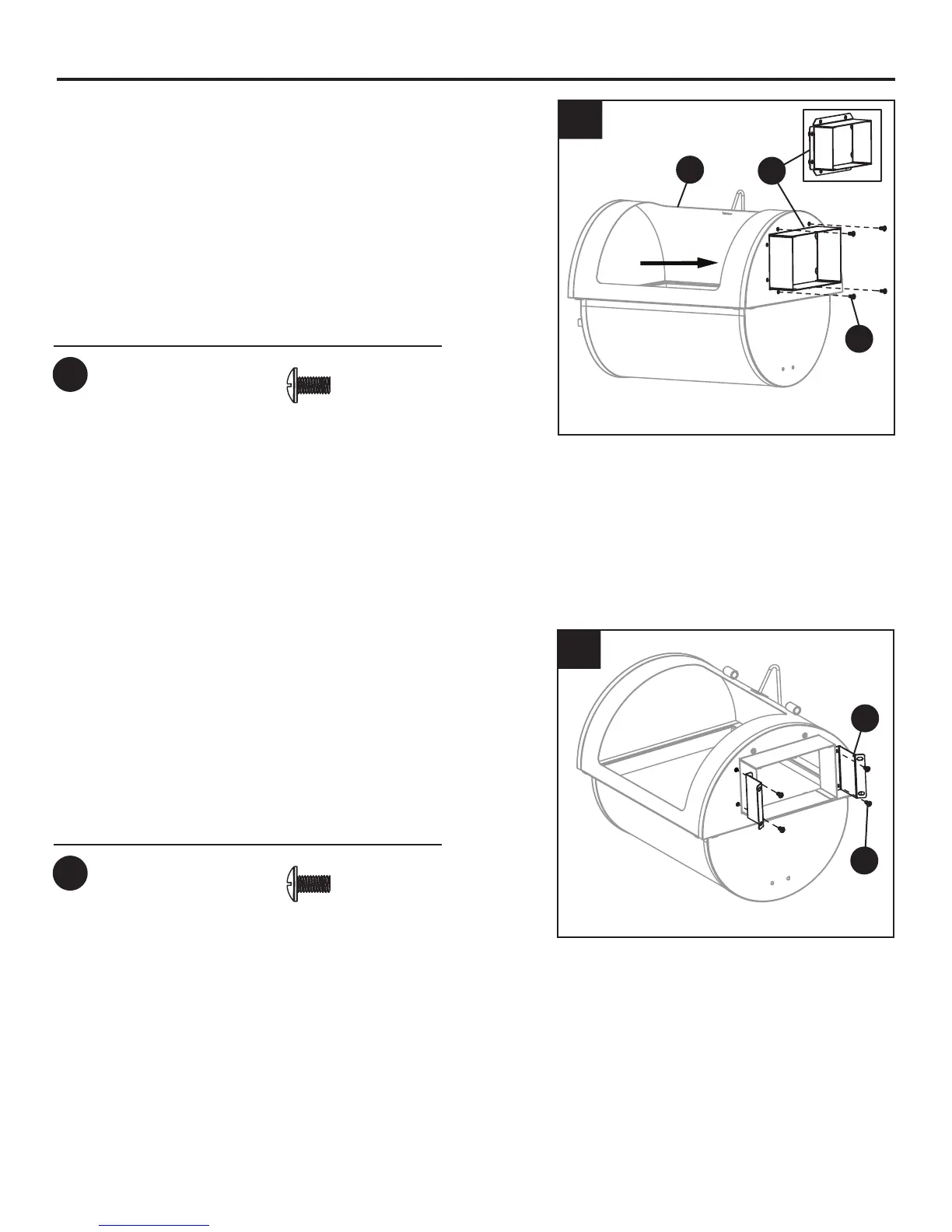

7. Insert the offset rebox coupling (C1) through the
opening on the top section of the offset (W) and
attach with four M6 x 12 bolts (BB).
8. Attach the offset coupling brackets (P) using four
M6 x 12 bolts (BB).
W
BB
C1
7
Hardware Used
BB
M6 x 12mm
Bolt
x 4
P
8
Hardware Used
BB
M6 x 12mm
Bolt
x 4
BB
