Do not block the cooling vents. Keep foreign metal objects, such as
screws, staples, and paper clips, out of the cooling vents. Foreign metal
objects can create a short circuit, which can cause damage and fire,
possibly resulting in serious injury.
Carefully clean the dust on the surface of the cooling vents using a soft
cloth.
Stereo speakers The speakers emit sound generated by your
software as well as audio alarms, such as low
battery condition, generated by the system.
Front with the display open
This section shows the computer with the display panel open. In order to
open the display, lift up the display panel and position it at a comfortable
viewing angle for you.

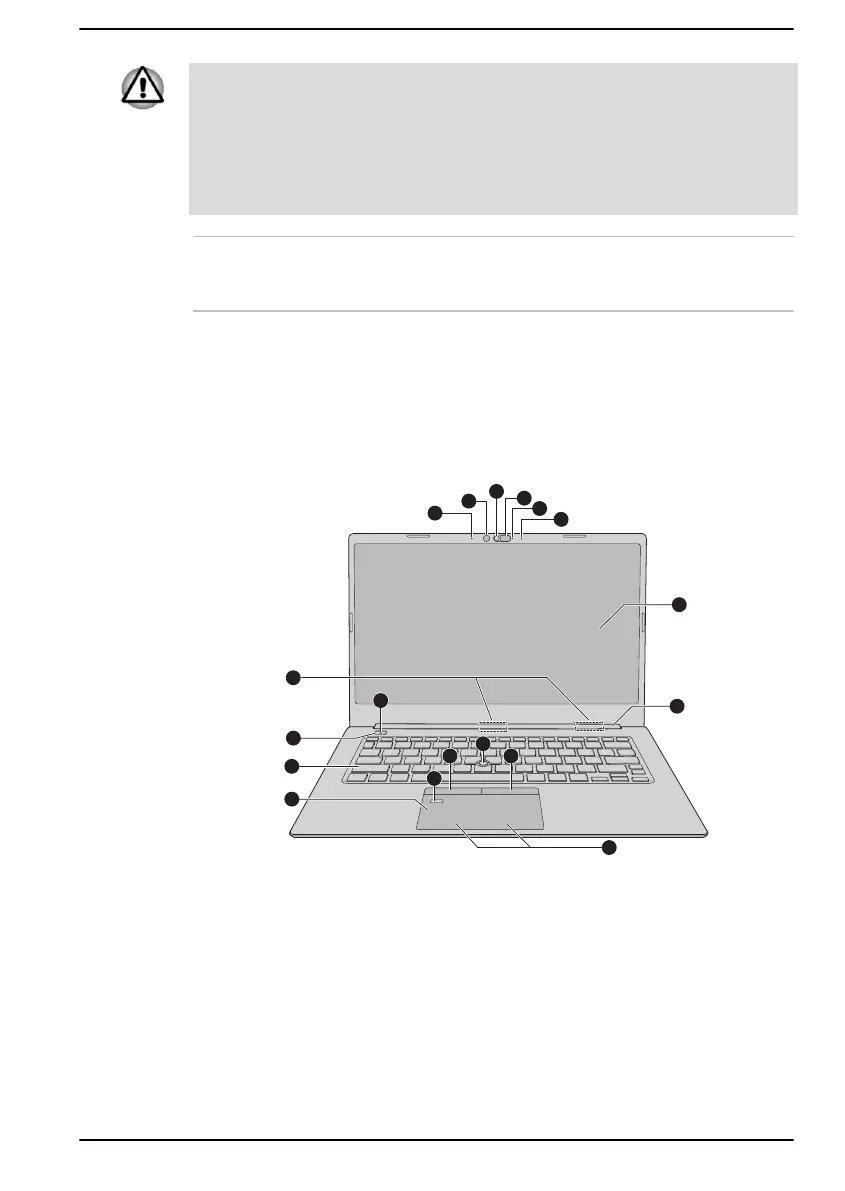

Figure 3-6 The front of the computer with the display panel open
5
4
3
5
1
2
7
10
11
16 16
15
13
12
14
9
8
6
1. Infrared LED* 9. Power button
2. Web Camera* 10. Power indicator
3. Web Camera Shutter 11. Keyboard
4. Web Camera LED* 12. Touch Pad
5. Microphones* 13. Touch Pad control buttons
6. Wireless communication antennas
(not shown)
14. Fingerprint Sensor*
7. Display screen 15. AccuPoint
8. Display hinge 16. AccuPoint control buttons
* Provided with some models.
Product appearance depends on the model you purchased.
User's Manual
3-5
