9. COBRA-4 EXPANSION STAGES
The illustration shows a medium-sized
COBRA-4 configuration consisting o
one COBRA-4 SYSTEM per side.
Each of the 2 COBRA-4 TOP
enclosures occupying the lowes
positions on the rig are angled 5°
downwards, whilst the upper COBRA-4
TOP and the two COBRA-4 FAR
enclosures are flown one on top of the
other in a straight line. The middle axis
of the three highest enclosures is
aimed at the rear third of the audience
area by means of a rigging belt.
When the two side arrays are a long
way apart, it can make sense to
position additional COBRA TOPs on
top of the COBRA PWH enclosures
comprising the horizontal bass array to
cover the area directly in front of the
stage
.
COBRA-4 SYSTEM
EXTENSION I
08x COBRA-4-FAR
04x COBRA-4-TOP
16x COBRA PWH
04x CSR-4 RAC
-----------------------------------------------------------------------------------------------------------------------------------------------
COBRA- 4-SYSTEM
EXTENSION
12x COBRA-4-FAR
6x COBRA-4-TOP
20x COBRA-PWH
1x CSW 25 2,5°
6x CSR-4
B
CP-84
RS-485
IN OUT
L0/MID/HI SUB
L0/MID/HI
B
SUB
B
AA
A
L 2400
L 2400
DSP244
B
CP-84
RS-485
IN OUT
L0/MID/HI SUB
L0/MID/HI
B
SUB
B
AA
A
L 2400
L 2400
DSP244
B
CP-84
RS-485
IN OUT
L0/MID/HI SUB
L0/MID/HI
B
SUB
B
AA
A
L 2400
L 2400
DSP244
B
CP-84
RS-485
IN OUT
L0/MID/HI SUB
L0/MID/HI
B
SUB
B
AA
A
L 2400
L 2400
DSP244
B
CP-84
RS-485
IN OUT
L0/MID/HI SUB
L0/MID/HI
B
SUB
B
AA
A
L 2400
L 2400
DSP244
B
CP-84
RS-485
IN OUT
L0/MID/HI SUB
L0/MID/HI
B
SUB
B
AA
A
L 2400
L 2400
DSP244

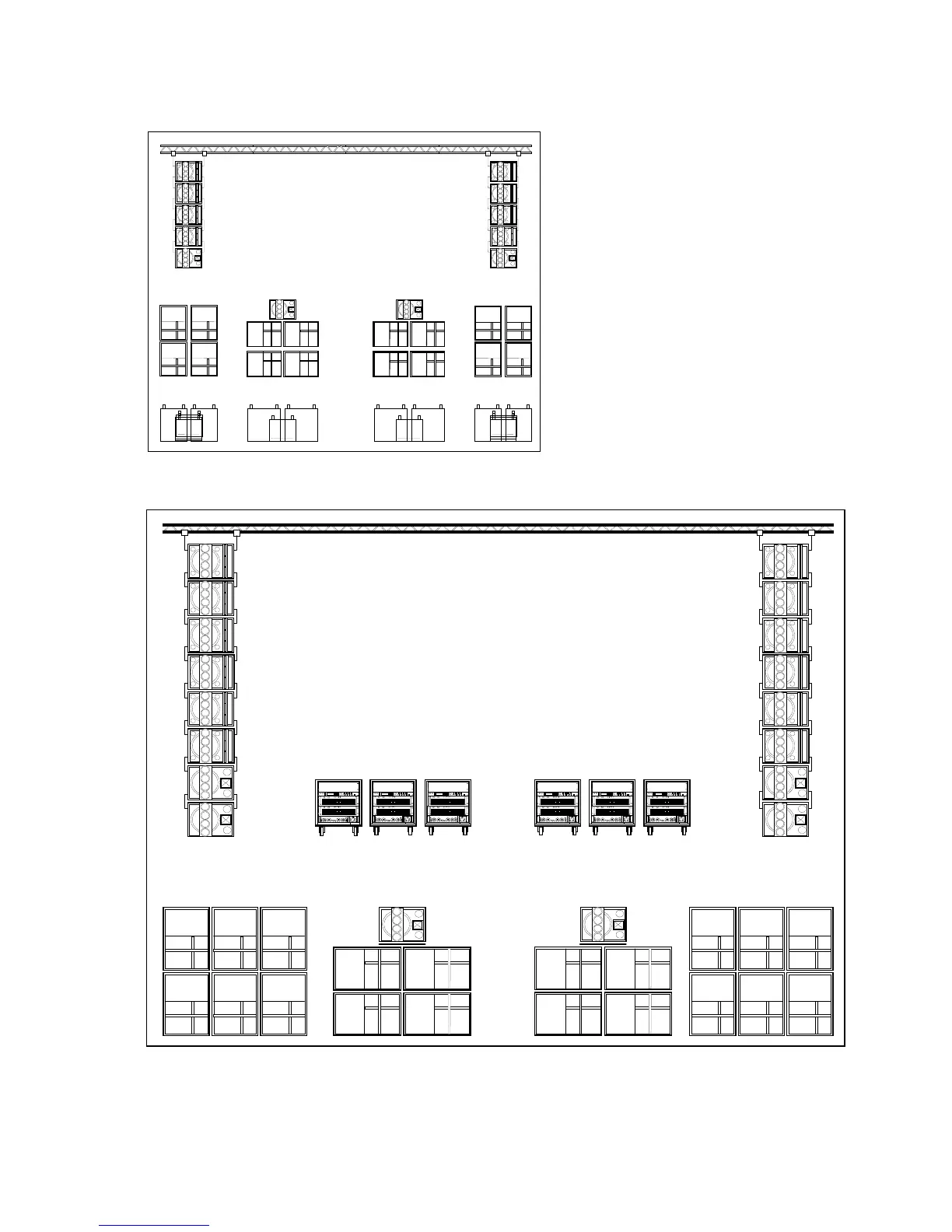

This illustration shows the typical open air arrangement of a COBRA-4 SYSTEM. It consists of the COBRA-4
basic set and modular extensions in the form of additional COBRA-4 FAR and COBRA PWH enclosures with
the CSR-4 amp racks configured accordingly. The flown enclosures in the rig are arranged in a ‘hockey stick’
shape and the complete wing is directed towards the rear third of the audience area using the rigging belt.
