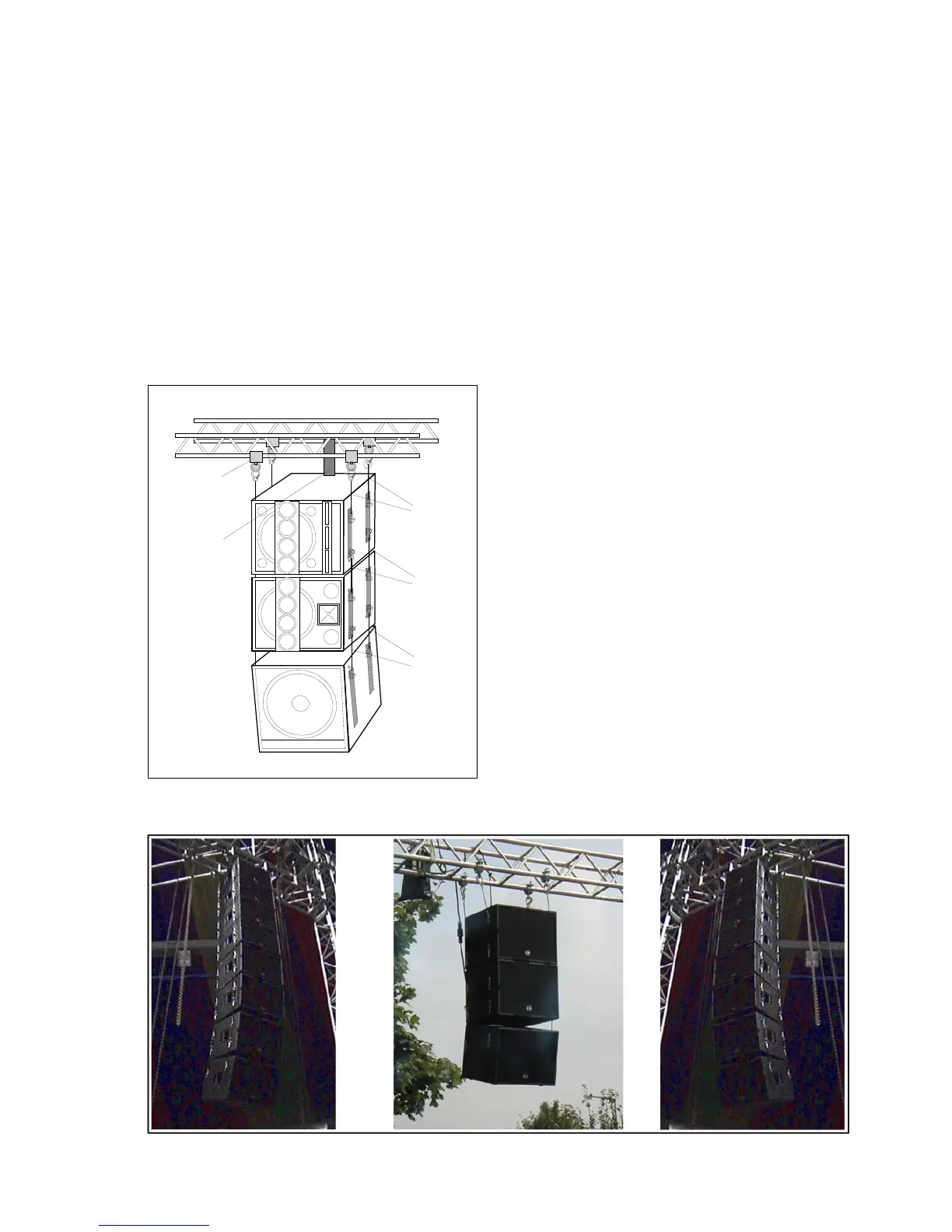

13. FLYING ACCESSORIES
The COBRA SYSTEM components COBRA-SUB, COBRA-TOP, COBRA-4-TOP and COBRA-4-FAR are
supplied as standard with 4 vertical integrated ANCRA flying rails (2 x left and 2 x right) and are therefore
‘flight-ready’ when they leave the factory.
Each flown ‘row’ is fastened to the truss with 4 x 2” truss clamps (TC-04 # 112 695) and the highest cabinet
with 4 x CSST # 112 878 (Cobra System snap truss / 1 x double stud and 1 x hook).
The connection to the cabinets below is effected using 4 x CSSM # 112 873 (Cobra System rigging strap
medium / 2 x double stud)
The length of the CSSM should be chosen to ensure that the enclosures are connected flush with each other
as well as to allow adjacent enclosures to open at specific angles.
All flight-capable COBRA enclosures are fitted with
two flanges on the rear side (above and below) to
accept webbing straps.
The available webbing straps: # 112 694 WS 04 (4
metre) and # 112 690 WS 08 (8 metre) are used
for the alignment of the complete flown array.
The complete COBRA Flying System consisting o
truss clamps, 4 rigging straps CSST / CSSM can
be loaded at a safety factor of S=4 with a maximum
of 1.6 t.
It must be emphasized that when hanging
loudspeaker enclosures, the relevant
safety regulations must be adhered to at all
times. It is especially important to check
the suitability of the points by which the
systems are attached to the building.
Qualified experts must be consulted at all
times.
TC-04
CSST
CSSM
WS-04
WS-08
CSSM
