Dynacord COBRA User Manual

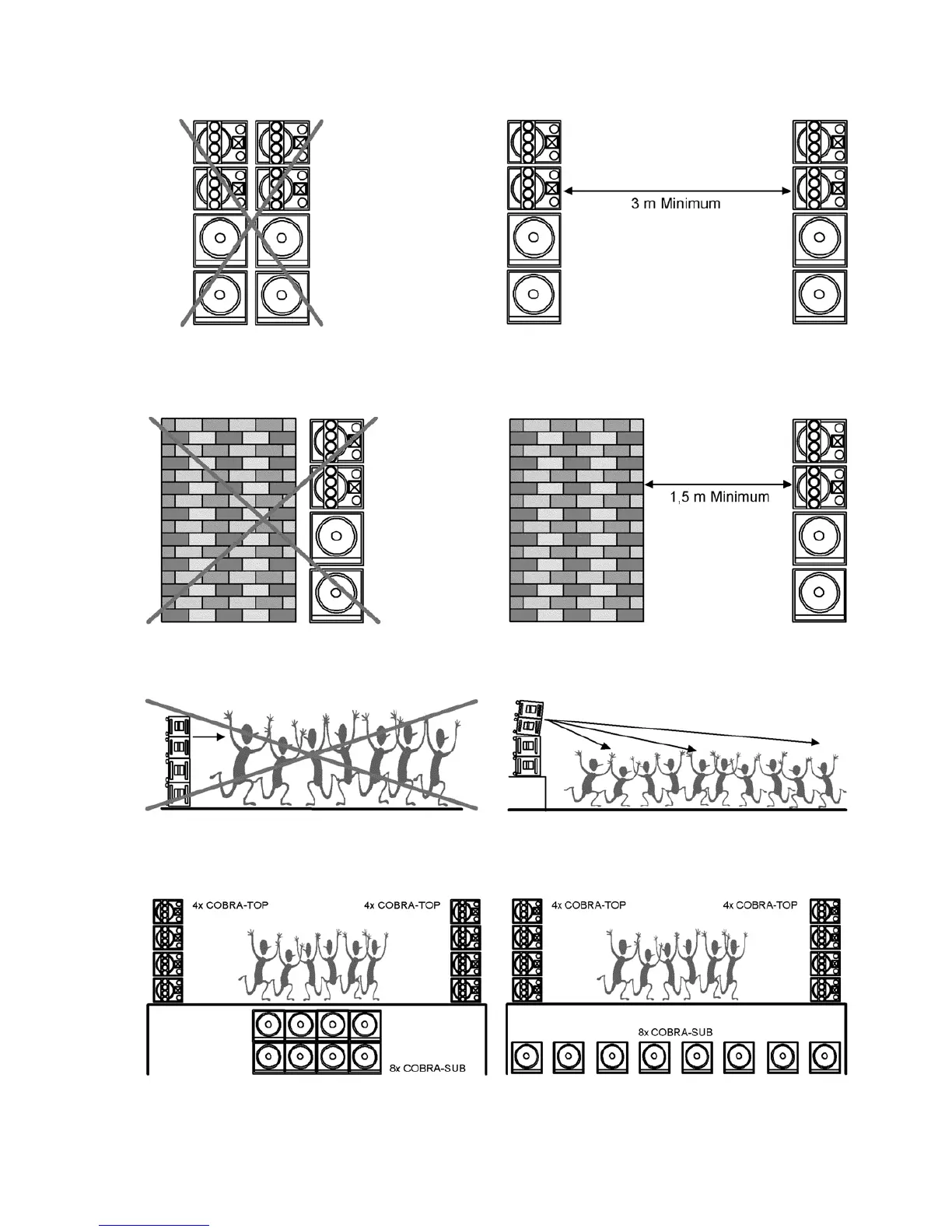

4. TIPS ON SETTING UP
Line array stacks should never be The distance between line array stacks should never
positioned directly alongside each other. be less than 3 metres
Line array stacks should never be positioned The distance to the nearest wall or corner should
close to a wall or corner. never be less than 1.5 metres.
Stacks should never be positioned at the same For a distance of up to 40 metres, the top edge of the
level as the heads of the listeners. stack should be around 3 to 4 metres above the floor.
For widley radiating basses To direct the bass forwards so that it projects further,
use a central bass cluster. use a horizontal bass array.

Dynacord COBRA Specifications

General

Nominal impedance	8 Ohms
Rated power capacity RMS	400 W
Program power capacity	800 W
Peak power capacity	1600 W
Frequency range (-10 dB)	45 Hz - 20 kHz
Components Lo	1 x 15" woofer
Connectors	2 x NL4MPR Speakon
Cabinet material	Plywood
Finish	Black Structure Paint
Frequency Response	45 Hz - 20 kHz (-10 dB)
Sensitivity	98 dB (1W/1m)
Drivers	1 x 15" woofer, 1 x 10" midrange, 1 x 1.4" compression driver
Input Connectors	2 x Speakon NL4
Output Connectors	2 x Speakon NL4
