bus signals. The internal running time of the repeaters of approx. 150 ns corresponds to an
extension of the bus over approx. 45 meters.
• Creation of alternative network topologies
By using one or several repeaters, not only the above-mentioned bus topology, but the

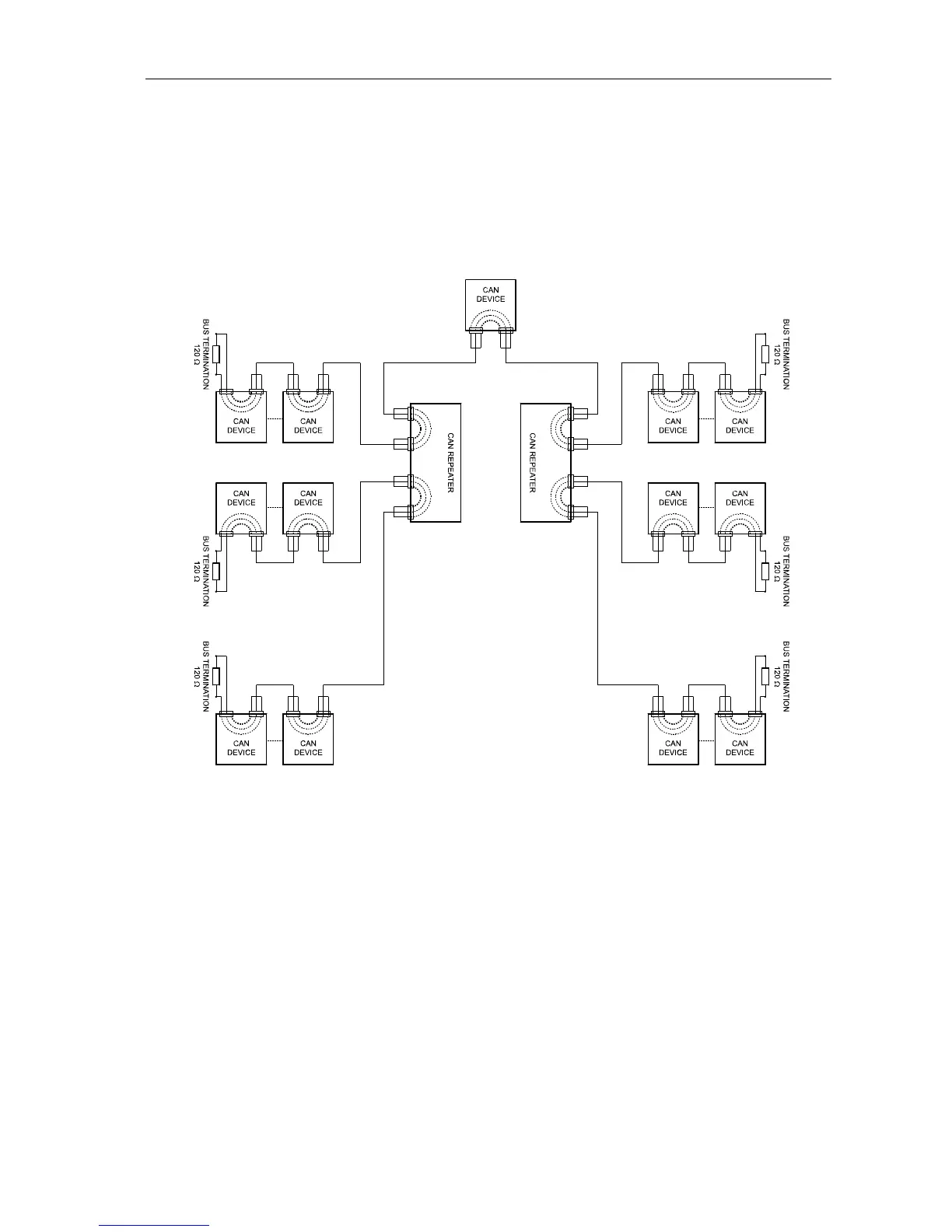

creation of other network topologies are also possible. In the following figure a star topology
from three independent CAN bus systems is given as example. The three CAN buses are
connected via two repeaters.
