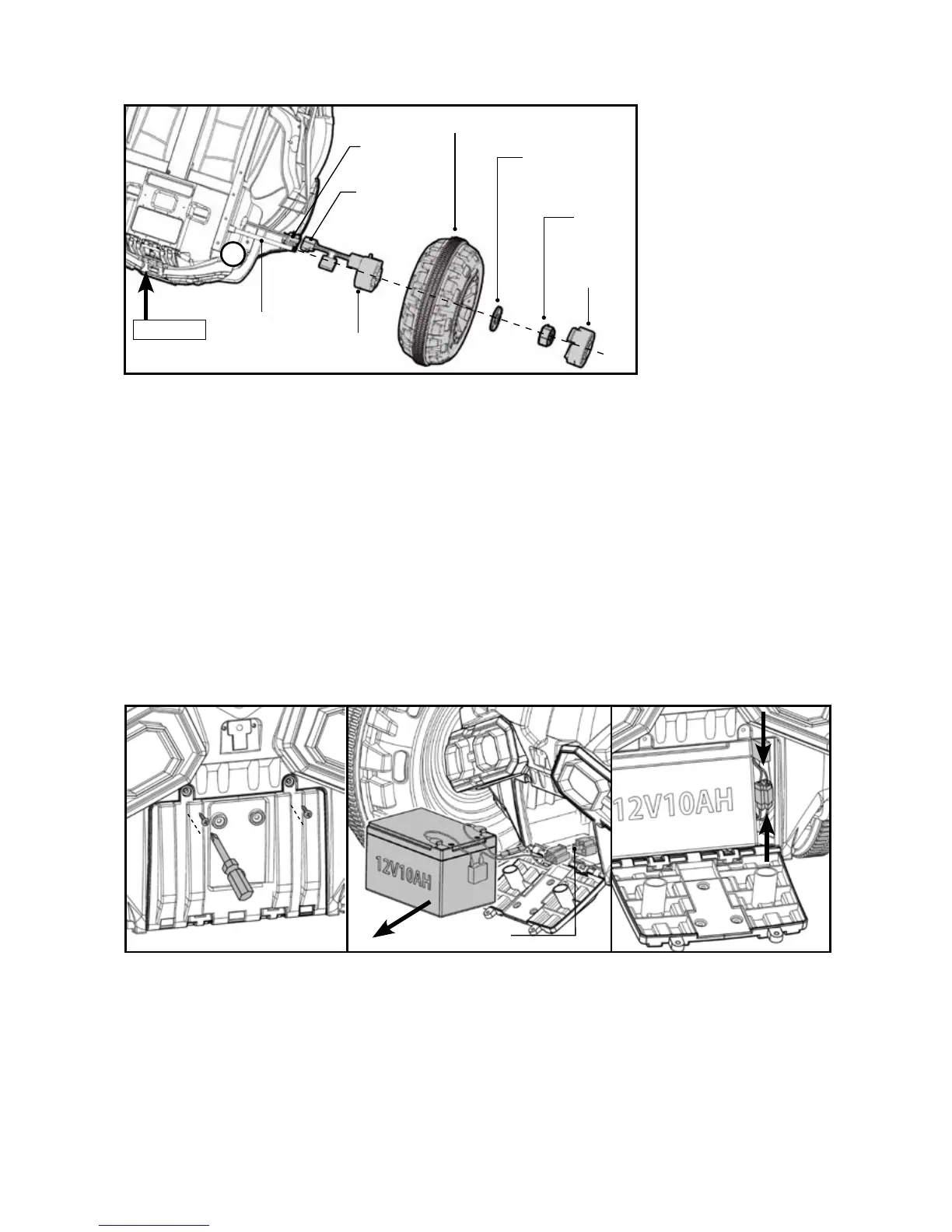

HOW TO REPLACE THE DRIVING WHEEL AND GEAR BOX
1. Turn the vehicle body upside down
2. Remove the axle cap with a flat head screwdriver.
3. Remove the M10 locknut with a 17mm socket wrench.
4. Remove the Ø12 washer.
5. Remove the driving wheel, and remove the rear axle out of the vehicle body.
Refer to page 9 to see how to replace with new driving wheel or new gear box.
If you do not need to replace the gear box, please proceed to step 8.
6. Unplug the power connector that is connected to the gear box. (see Figure 2.)
7. Remove the gear box and replace with a new one.
8. Plug the power connector back into the gear box.
9. Replace the driving wheel, Ø10 washer, and M10 locknut, and tighten securely
10. Re-insert the axle cap.
HOW TO REPLACE THE BATTERY
• Loosen the two screws on the battery cover with a Phillips screwdriver.
• After opening the battery cover, gently remove the battery. Use your hand to
press down the snap lock on battery connector to carefully disconnect two
connectors as shown.
• Replace with a new battery and carefully connect the battery connector with the
module connector, and insert them back into the battery compartment.
• Re-tighten the two screws onto the battery cover
B
Connectors
Rear axle
Gear box
Ø12 washer
M10
locknut
Driving wheel
Cable
connector
Motor
connector
Axle cap
L
FRONT
