Dynacraft 12V DUNE BUGGY User Manual

7

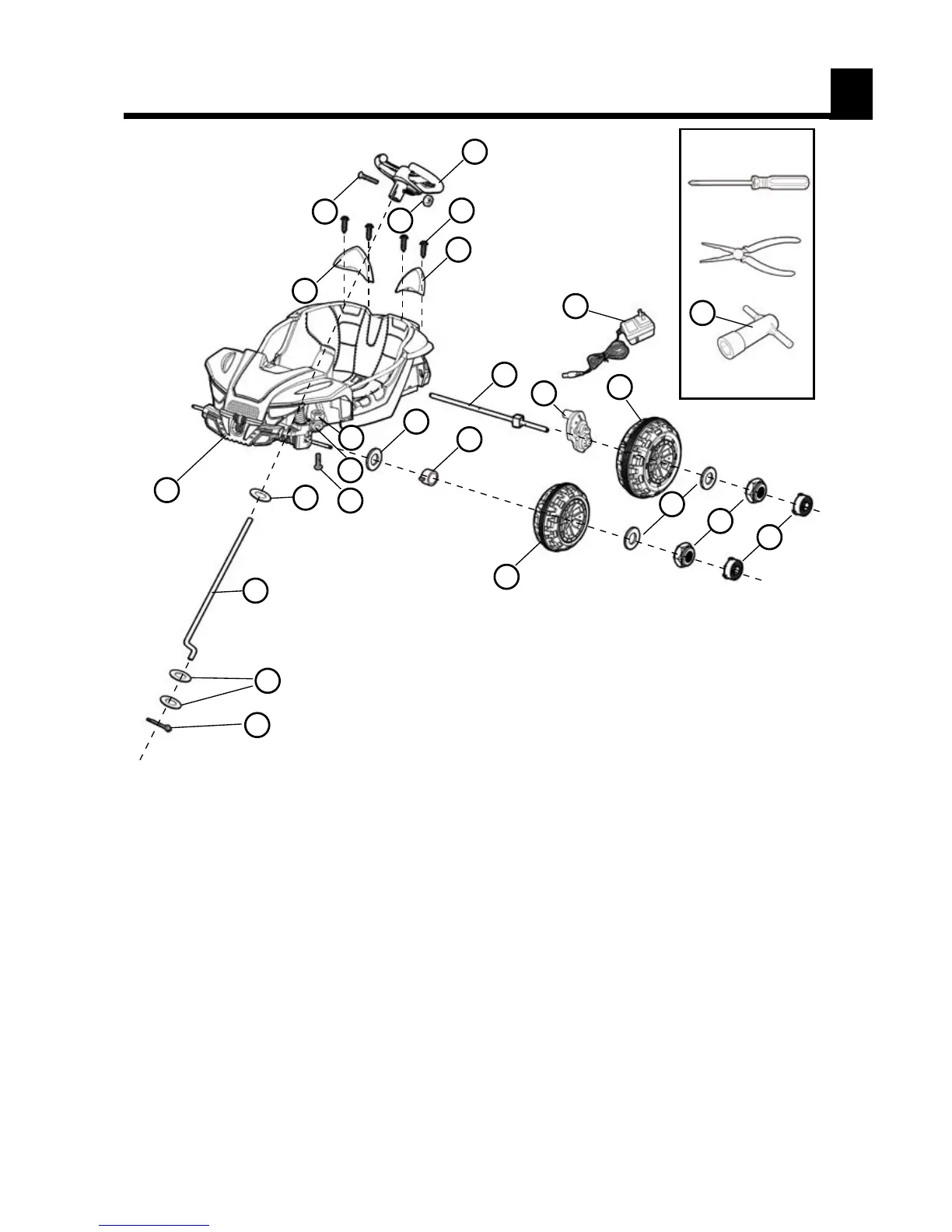

PARTS DIAGRAM
NOTE: Some parts shown are assembled on both sides of vehicle.
1. Vehicle body x 1
2. Right Headrest x 1
3. Left Headrest x 1
4. M5 x 40 Machine Screw x 1
5. M5 Nut x 2
6. Steering Wheel x 1
7. 4 x 12 Round Head Screws x 4
8. Rear Axle x 1
9. Gear Box x 2
10. Driving wheel x 2
11. Ø12 Washer x 6
12. M10 Nut x 4
13. Axle Cap x 4
14. Front wheel x 2
15. Bushing x 2
16. M5 x 16 Machine Screw x 1
17. Ø10 Washer x 3
18. Steering Column x 1
19. Split Pin x 1
20. Ø5 Washer x 1
21. Charger
22. Socket Wrench x 2
11
12
1
2
4
14
5
3
6
7
8
15
12
18
17
19
17
13
21
10
9
16
20
5
Socket Wrench
Screwdriver
(not included)
Pliers
(not included)
Socket Wrench
(included)
Tools Required
22
C
