DynAmp LKAT2 Installation, Operation And Service Manual

Installation, Operation and Service Manual LKAT
2
Portable
© 2018 DynAmp, LLC Page 11
047312 A

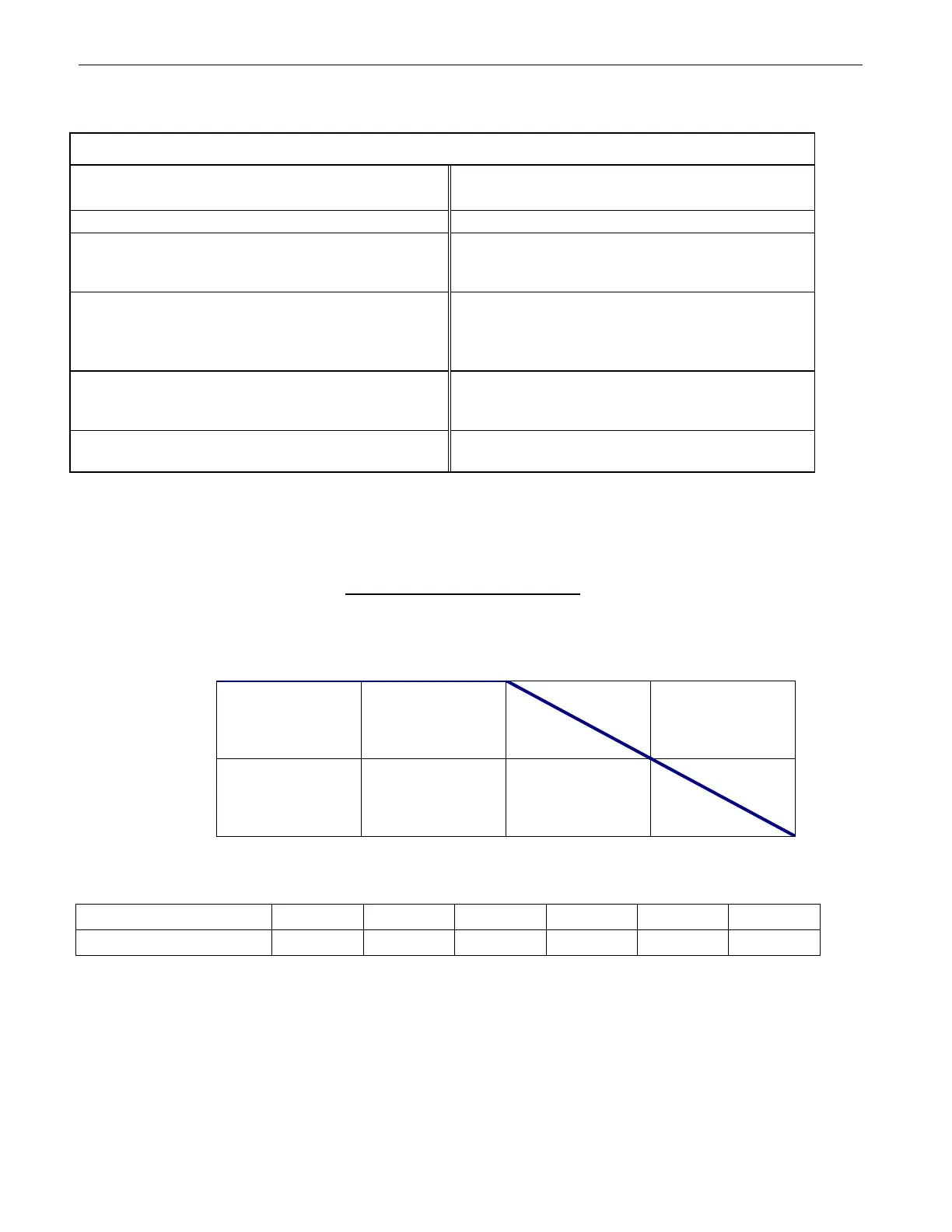

Table 3.1
LKAT
2
System Specifications (subject to change without notice), Continued
PHYSICAL
Measuring Head Weight Typically 1 to 6 kg (3 to 13lbs.)
Metering Unit Weight ( Typical )
Typically 3kg (7lbs.)
Standard Length Head Connection Cables (stub)
Interconnection (ITC) Cable
Optional custom lengths are available
2m (6.5 ft.)
Cable fixed to Measuring Head
Standard Instrument Output Cable (1)
Process Mains Cable
Optional custom lengths are available
2.5m (8.2 ft.)
10m (33 ft)
Connector for Metering Unit on one end,
unterminated on opposite end
Process Mains cable
Custom lengths are available
10m (33 ft)
Connector for Meter Unit on one end,
unterminated on opposite end
Carrying / Transport Cases
Hard side carrying case included
(additional soft side case with optional assemblies)
Figure 3.1
LKAT
2
Frequency Response
Normalized LKAT Bandwidth
Normalized Frequency f/fc ; fc = 1 1 2 .4 x 10
6
( A / s ) / I F S ( A )
F.S. Bus Current (kA)
5 to 50
60
70
80
90
100
Corner Frequency (kHz)
2.248
1.873
1.606
1.405
1.249
1.124
-40
-20
0
0.01 0.1 1 10 100
NORMALIZED BUS CURRENT
20 Log(I / IFS) ; (dB)
