EVERY 2000 HOURS OF OPERATION (Yearly)
Remember the danger of freezing during the
winter period and drain the tank, pump and
leads; or mix the water with a small amount of
environmentally friendly antifreeze.
The easiest way to empty the tanks is to screw off the
filter housing (1).
There is also a drain cock (red square) under each
water tank.
Open the drain cock (2) to empty the water pump.
Water tank - Cleaning
Watering system - Draining
1
2

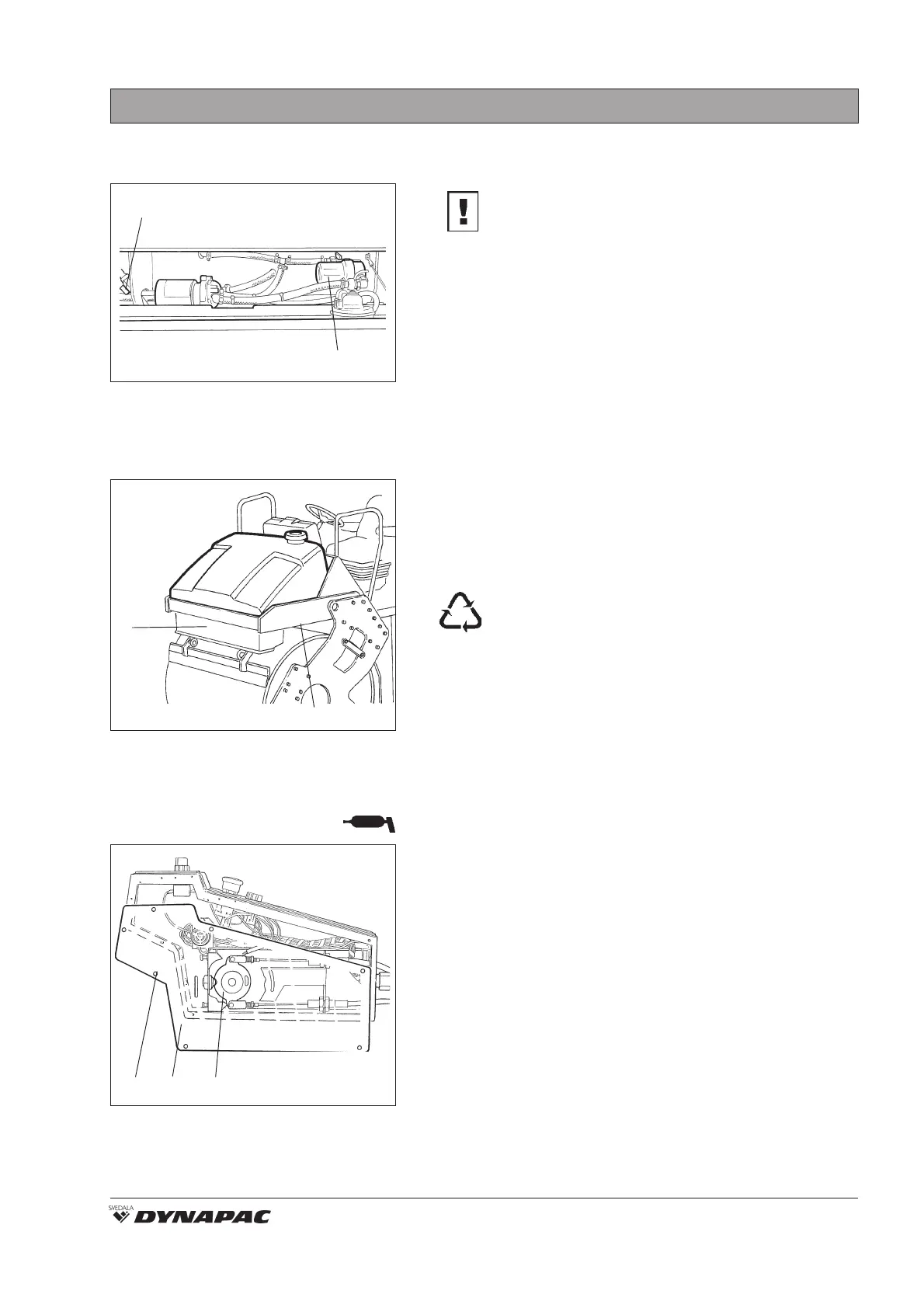

Fig. 45 Pump system
1. Filter housing
2. Drain cock
Fig. 46 Water tank
1. Pump system
2. Drain plug
Clean the tanks with water and a suitable detergent for
plastic surfaces.
Refit the filter housing (1) or the drain plug (2), fill with
water and check for tightness.
The water tanks are made of recyclable plas-
tic (polyethylene).
2
1
Forward/Reverse lever -
Lubrication
Fig. 47 Forward/Reverse lever
1. Screw
2. Plate
3. Cam disc
12 3
Remove the screws (1) and take off the plate (2).
Lubricate the sliding surface of the cam disc (3) with
grease.
Refit the plate (2) and the screws (1).
