Unlocking the articulation
2
3
1

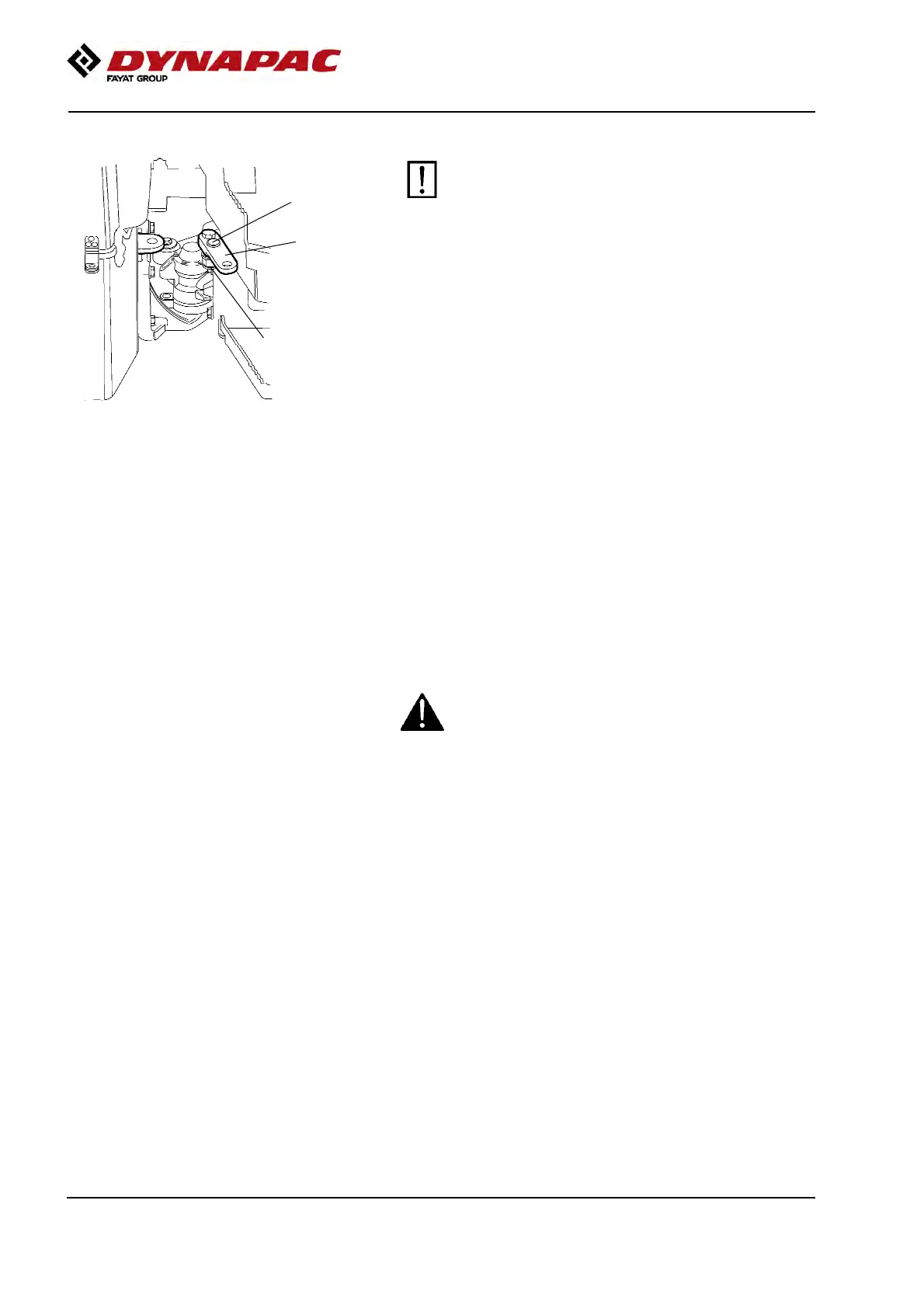

Fig. Articulation
1. Locking pin
2. Locking arm
3. Locking bolt
Remember to unlock the articulation before
operating.
Remember to unlock the articulation before
operating.
Pull out the locking pin (1), turn the locking arm (2) for
the rear frame, secure the locking arm by inserting the
locking bolt (3) through the mounting in the rear frame
and locking arm. Insert the locking pin.
Transport
Tie-down and secure the machine according to the
Cargo Securing Certificate for the specific machine if
this is avaliable and applicable.
If not, tie down and secure the machine according to
the cargo securing rules that are valid for the country
where the transport takes place.
Never lash over the machine’s articulated joint, nor
over the machine’s operator platform.
Never lash over the machine’s articulated joint, nor
over the machine’s operator platform.
Before securing the machine ensure that :
• the parking brake is applied and in good working condition
• the articulated joint is in closed position
• the machine is centered laterally on the platform
• the lashings are in good condition and fulfills the
corresponding rules for transport securing.
