LG140/160/200 ILG140EN4
OPERATION – HATZ 1B20

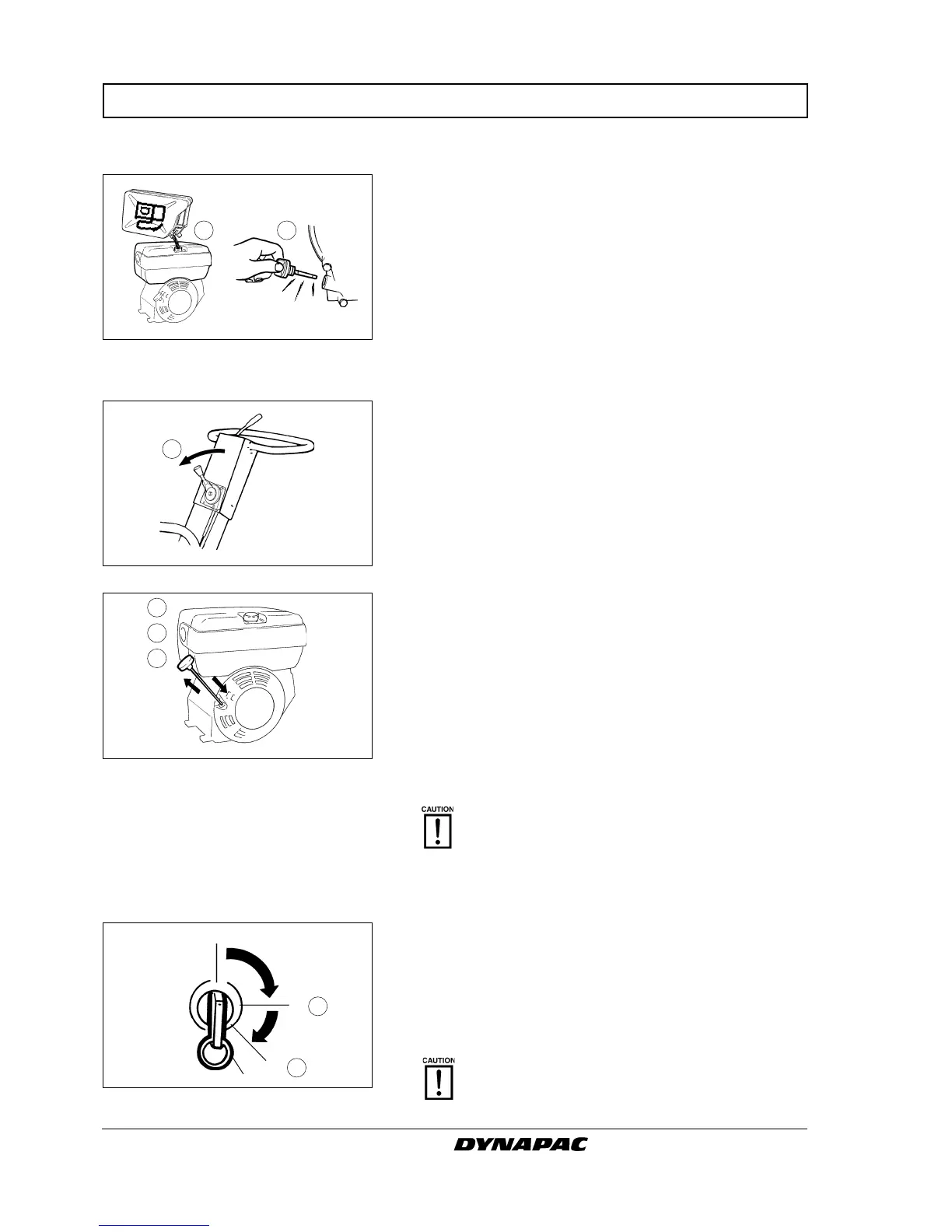

1. Fill fuel tank.
Tank volume: 3,6 lit. (3.8 qts)
2. Check oil level in engine crank case.
Oil volume: 1,0 lit. (1.06 qts)
Before start
Starting the engine
Manual start
4. Pull the starting cable out by the handle until you
feel a slight resistance. Let the cable run back; in
this way the entire length of the starting cable can
be used to start the engine.
5. Grip the handle with both hands.
6. Commence pulling the starting cable vigorously and
at an increasing speed (do not jerk it violently) until
the engine starts.
If after several attempts of starting the exhaust
begins to emit white smoke, move the speed
control lever to the stop position and pull the
starting cable out slowly 5 times. Repeat the
starting procedure.
3. Set speed control lever either 1/2 START or max.
START position, as desired or necessary. Starting at
a lower speed will help to prevent exhaust smoke.
El. start
4. Insert the starter key and turn it to position I. Char-
ging and oil pressure indicators light up.
5. Turn the starter key through position II to III. Re
lease the key as soon as the engine runs.
Make sure that the key remains at position II so
that the battery is charged.
