Dynascan 10M66 - Backlight, Frequency, and ASQ Settings; DTMF Encode and Reset Options; Technical Specifications; General Specifications

English - 17 -
T: Open TX frequency adjustment.
RT: Open TX/RX frequency adjustment.
Default: R.

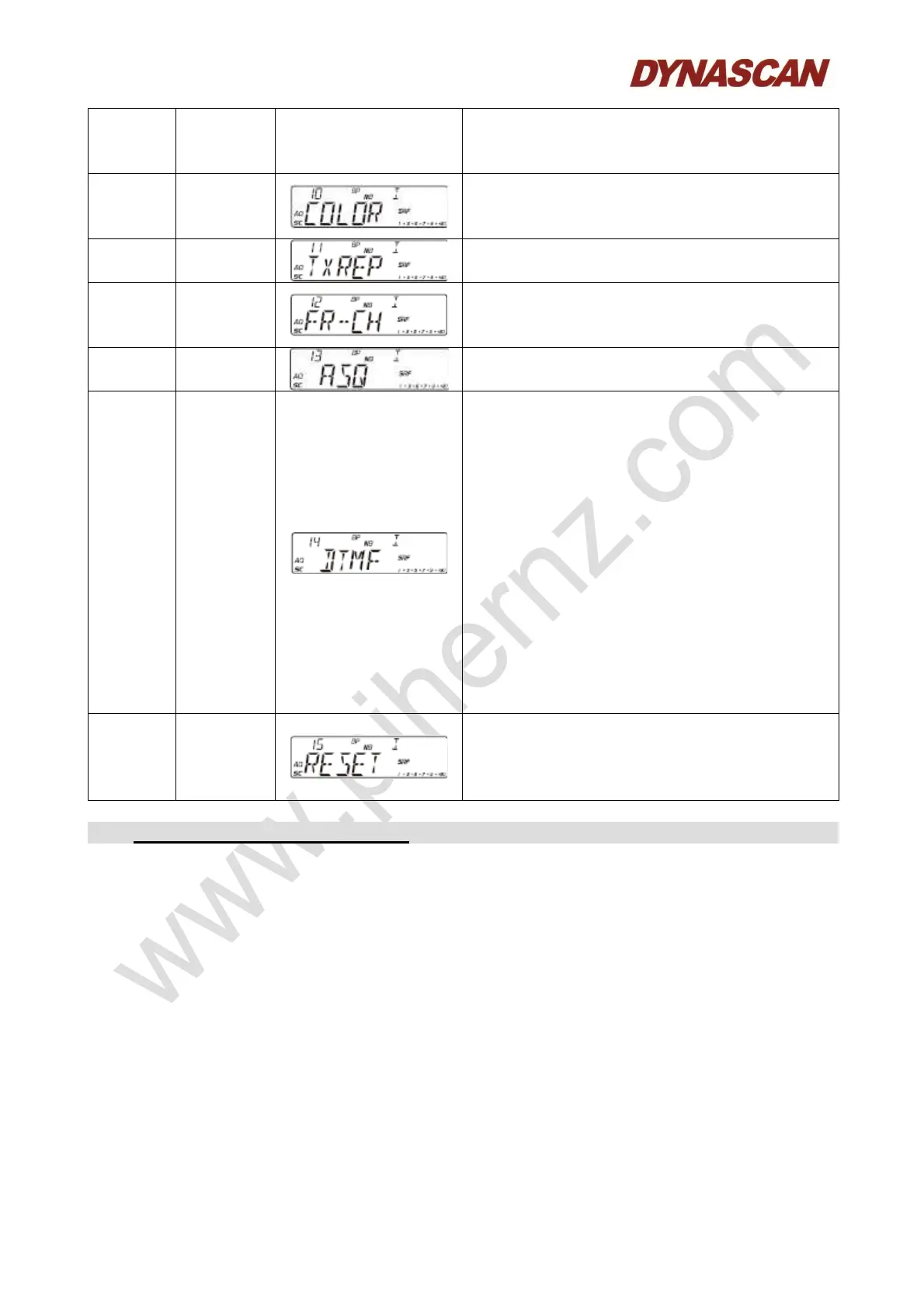

10 Backlight
WHITE, BLUE, GREEN, YELOW, RED,
PURPLE, CYAN.
Default: WHITE.
11
Rep
frequency
Frequency range: 100 Hz–5 MHz.
Default: 100 kHz.
12
Channel
setup
CHAN: Choose to adjust channel.
FREQ: Choose to adjust frequency.
Default: FREQ.
13
ASQ
level
01-09, total 9 levels available.
Default: 05.
14
DTMF
encode
S TIME: DTMF transmit time.
FDELAY: First digital time.
C TIME: Pre-carrier time.
* # TIME: * and # delay time.
D CODE: D code setting time.
TXDIS: Display setting for DTMF transmits.
MEM: DTMF encode storage list.
Note: In the DTMF encode storage list (M1-
M16), press [PUSH] knob to edit DTMF
code, then turn [CH] knob to choose
desired value, press [PUSH] knob again to
edit next list, after finish setting, press and
hold [PUSH] knob to store it and back to
main menu.
15 Reset
OPT: All function setup resume default.
ALL: All channels and setup resume
default.
Default: OPT.
12
.
-
TECHNICAL SPECIFICATIONS
:
12.1.- GENERAL:
Frequency range: 28.000 MHz to 29.700 MHz.
Bands: A/B/C/D/E/F/G/H/I.
Channels number: 40 channels programmable in each band.
Frequency control: PLL Synthesizer.
Frequency step: 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz.
Frequency tolerance: ±5 ppm.
Temperature range: -20 º C to +55 ºC.
Microphone: With PTT, UP/DN keys and coiled cord.
Input voltage: 13.8 VDC.
Dimensions (mm): 245 (L) x 158 (W) x 48 (H).
Weight: 1.5 Kg.
Antenna connector: UHF, SO239.
