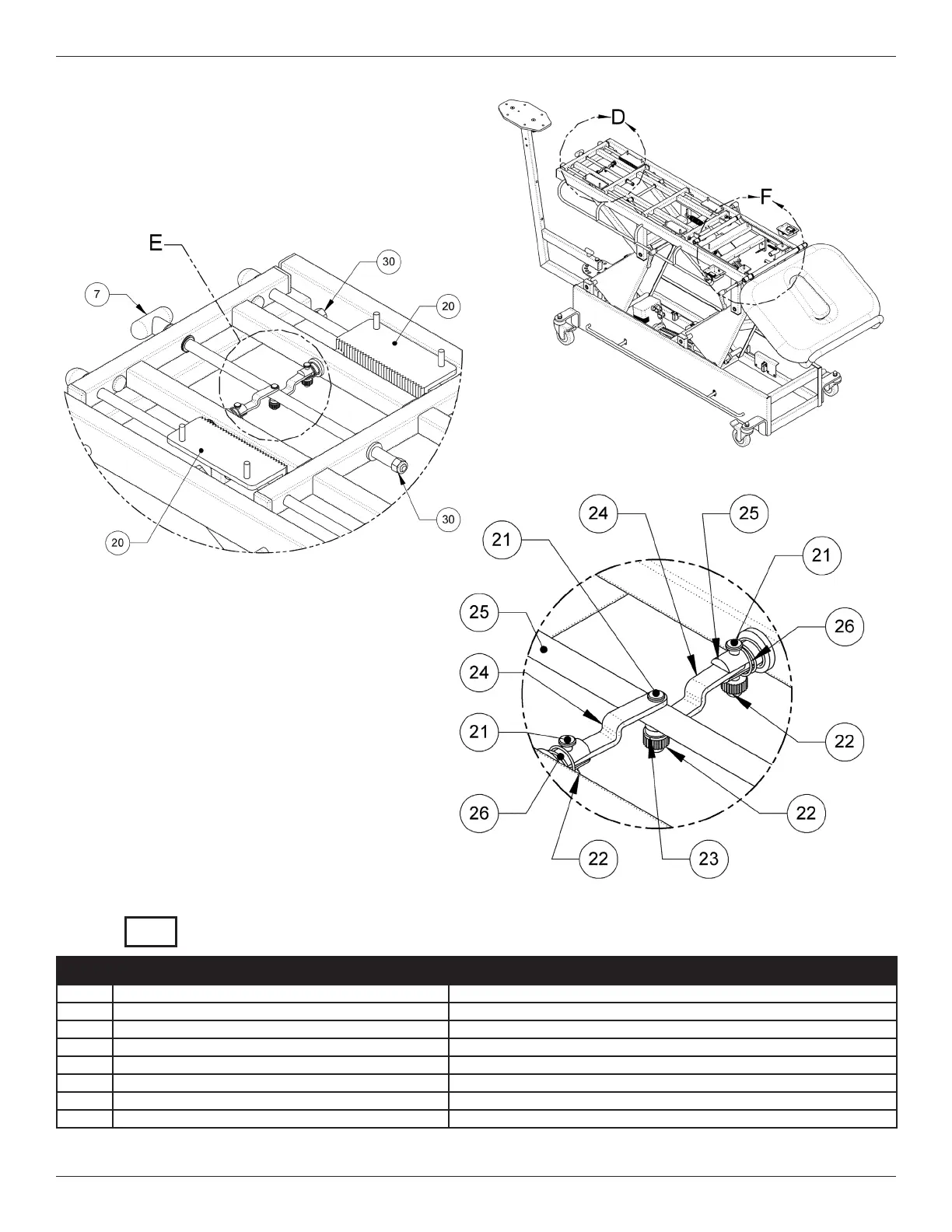

REPLACEMENT PARTS DIAGRAMS
DYNATRON® T3™ HI-LO TREATMENT TABLE & T4™ TRACTION TABLE | OPERATOR’S MANUAL REV. 10 | 4/4/2018 18
No. Part Numbers Views D and E Description
7 T4SLIDELOCKHANDLE Traction Arm Handle and Sliding Mechanism
20 DP000084 Slide Rack Block Assembly
21 HW000022 3/16" x 1" Grooved Clevis Pin
22 HW000187 3/16" Push Nut
23 HW000171 12mm (OD) x 4.88mm (ID) x 1mm ick Washer
24 DP000080 Bent Lock Hinge
25 DP000082 Slide Lock Sha
26 DP000112 Slide Lock Sha Spring
REF



Detail D
Detail E
