Dynaudio 9S Owner's Manual

2322
ON AUTO
GAIN PHASEPOWER
SUB LowpassSAT Highpass
SAT/SUB Input SAT Output
LFE / Slave IN OUT
Min Max
50Hz 150Hz
0° 180°
LEFT
RIGHT
SUB I/O To Slave
LFE Slave
SUB Lowpass
50Hz 150Hz
60HzFlat 80Hz
ON AUTO
GAIN PHASEPOWER
SUB LowpassSAT Highpass
SAT/SUB Input SAT Output
LFE / Slave IN OUT
Min Max
50Hz 150Hz
0° 180°
LEFT
RIGHT
SUB I/O To Slave
LFE Slave
GAIN
Min Max
60HzFlat 80Hz

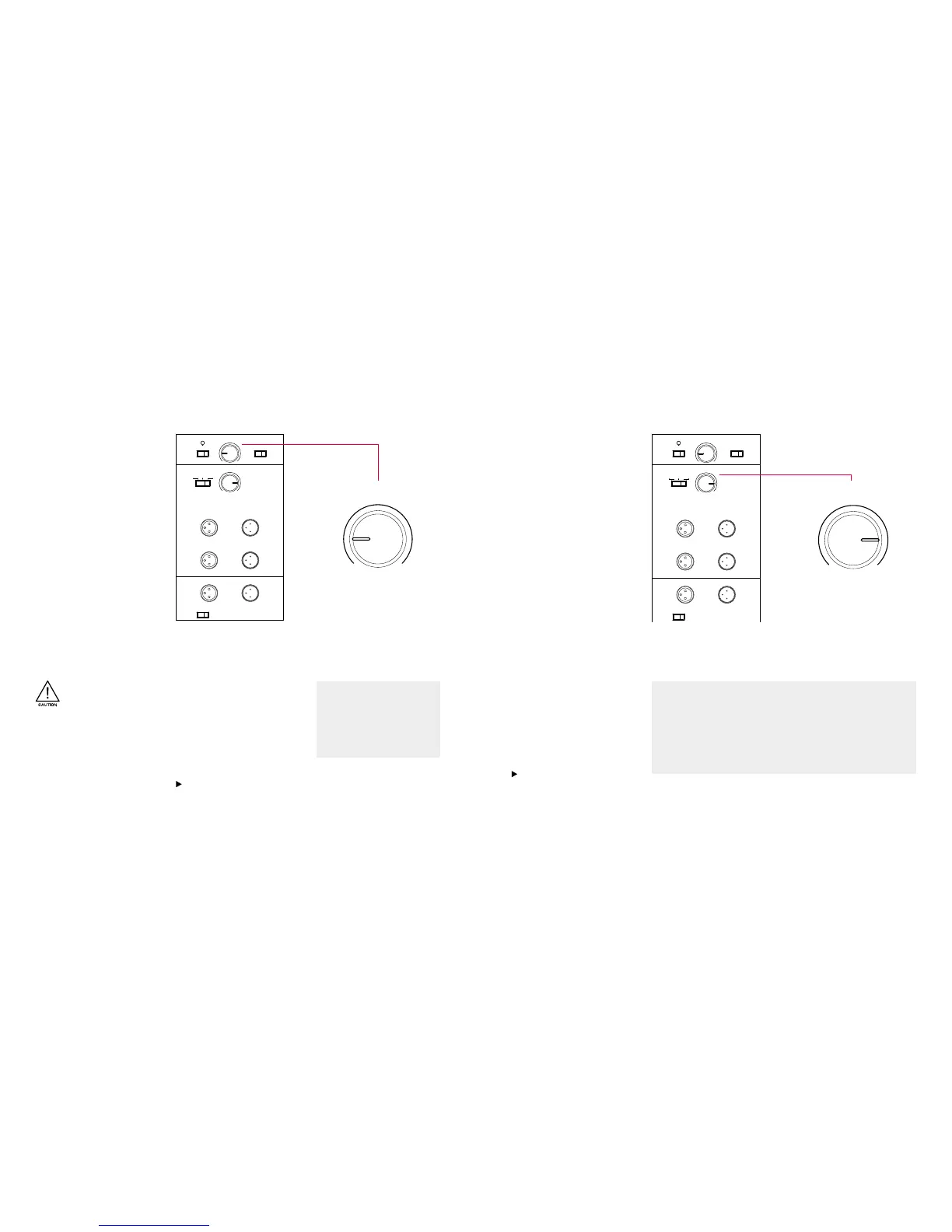

Adjusting the volume
(Gain)
CAUTION
High Sound Levels!
High sound levels can cause auditory
defects. To avoid auditory period of time.
defects, do not listen to high sound
levels over a longer period of time.
The correct volume setting is an
important aspect in achieving a well
balanced speaker combination.
To adjust the gain:
Adjust the Gain control, until correct
setting is reached.
Selecting the subwoofer
cut-off frequency (Lowpass)
The Lowpass control allows the
frequency range of the subwoofer to be
dened. Above the selected frequency
the sound level decreases rapidly. the
correct setting of this cut-off frequency
is important for a well balanced
combination of subwoofer and speakers.
To select the cutoff frequency
Set the Lowpass control to the
desired frequency between 50 and
150Hz.
Note
You cannot adjust the volume
when the subwoofer is in slave
mode. In this case the volume is
controlled by the setting of the
master subwoofer.
Notes
• The Lowpass only works on SAT/SUB input.
• Perhaps subwoofer cut-off frequency is already set in the bass management
of your source. Please refer to the operating manual of your source. In
general use only one bass management system.
You should also heed the instructions given in the operating manual of your
loudspeakers.
Operation

Dynaudio 9S Specifications

General

System	Single driver, active 9, 5 in subwoofer
Analog inputs	1 x XLR LFE, 2 x XLR Stereo
Analog outputs	1 x XLR Slave Out, 2 x XLR SAT Out
XLR Pinout	1 = 0 / 2 = + / 3 = –
Input impedance – + branch	20 kOhm
Input impedance – - branch	10 kOhm
Frequency response (± 3 dB)	22 Hz – 175 Hz
Box principle	Sealed
Max. input voltage	10 VRMS
Auto ON/OFF	Yes
Amplifier power	300 W
AC power input	100-120 V/200-240 V 50/60 Hz
Standby power consumption	< 0.5 W
Maximum power consumption	350 W
Output impedance	100 Ohm (each branch)
Max SPL	106 dB
High pass filter	Flat / 60 / 80 Hz
Low pass filter	50 Hz -150 Hz
Phase adjustment	0/180 degrees
Woofer	24 cm MSP
Mode selector	LFE, Slave (Phase and volume controls are bypassed in slave mode)

Weight and Dimensions

Weight	10.5 kg / 23.1 lb
Dimensions (W x H x D)	266 x 276 x 320 mm / 10.5 x 10.9 x 12.6 in
Shipping box dimensions (W x H x D)	400 x 430 x 400 mm / 15.7 x 16.9 x 15.7 in
