BX30 Owner’s Manual
10

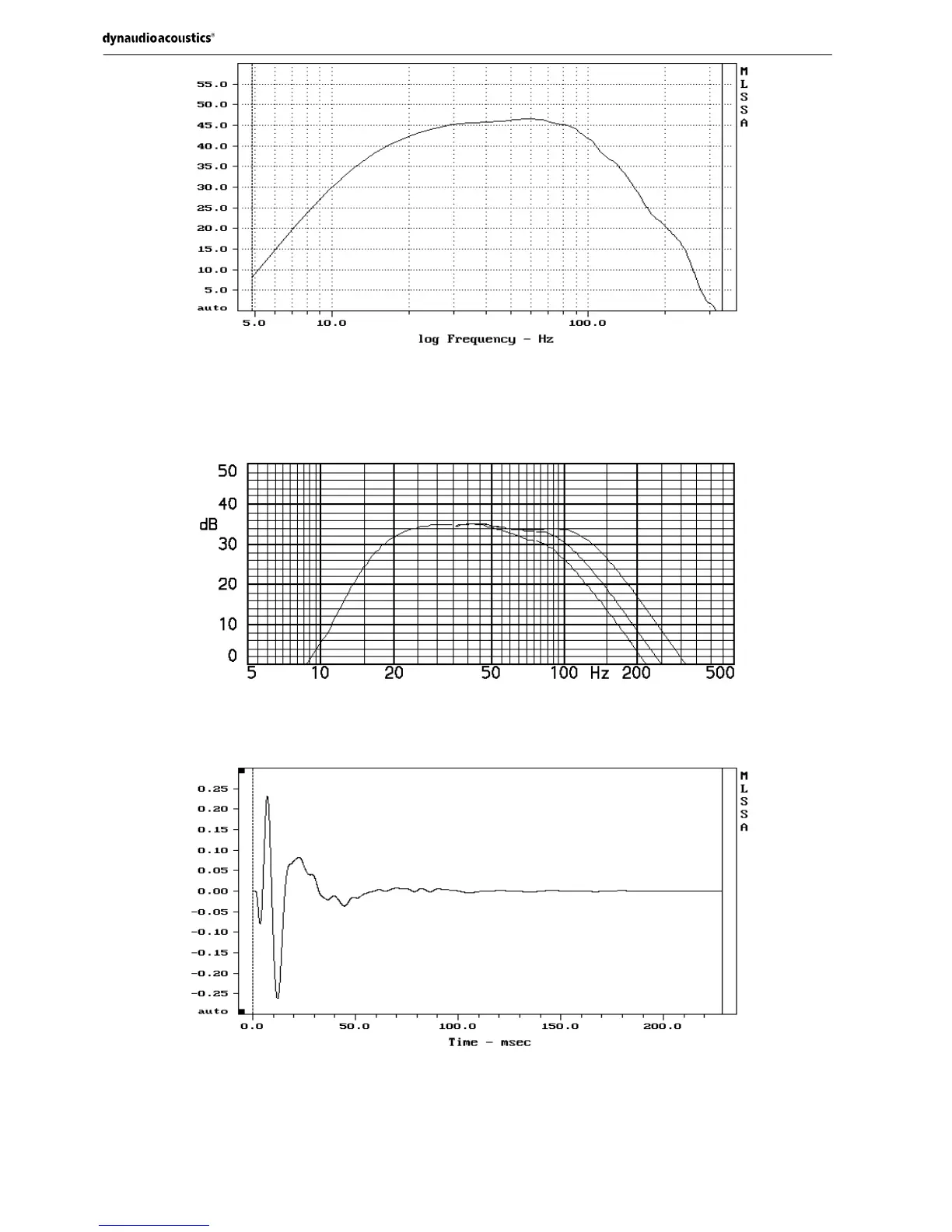

Figure 5.
Shows the standard
1
/
3
octave response in active bass
extension mode with the crossover pre set to 95 Hz.
The response offers a seamless match to any high quality monitor system but it is particularly well suited to smaller
models with limited bass output capability.
Figure 6.
The flexibility of switching low pass and match high pass x-overs means
the BX30 can be matched to any system with ease and accuracy.
Figure 7.
The impulse response of the BX30 is almost perfect
for a two octave, 100 Hz band pass filter.
The impulse response Figure 7 shows the superior transient response of direct radiating systems compared to narrow
resonant cavities and chambers.
