BX30 Owner’s Manual
8

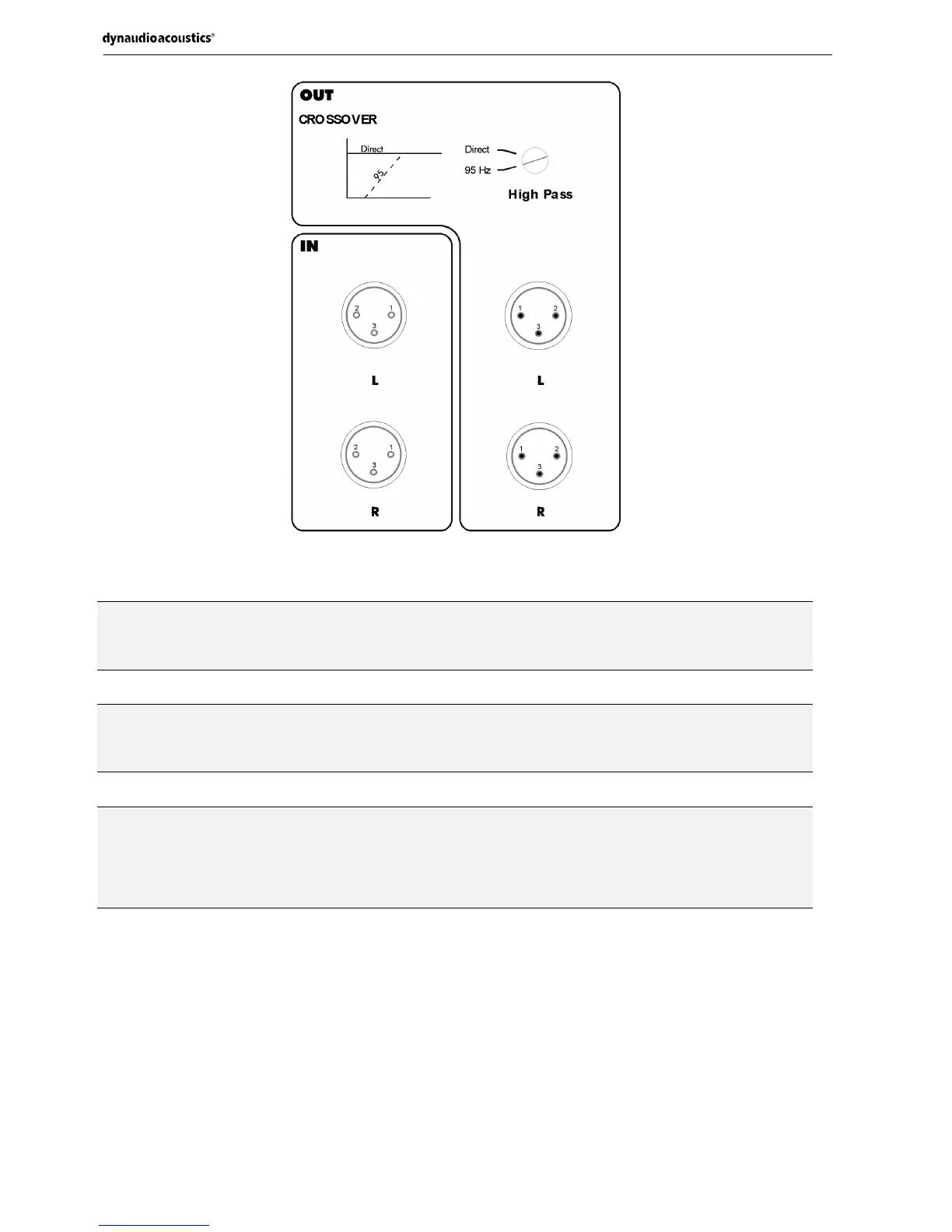

Figure 4.
Output control and connectors
CROSSOVER
High Pass: Changes round the
OUT
line signals between :
Direct
: The signal on XLR
IN
connectors is directed to the XLR
OUT
.
95 Hz
: The signal on XLR
IN
runs through a 95 Hz high pass filter, before it is
send to the XLR
OUT
.
IN
L and R : Balanced line signal input.
Pin 1 : Ground
Pin 2 : Non inverted (hot)
Pin 3 : Inverted (cold)
OUT
L and R: Balanced line signal output.
Pin 1 : Ground
Pin 2 : Non inverted (hot)
Pin 3 : Inverted (cold)
If
CROSSOVER High Pass
is set on 95 Hz and the
BX30
is turned off, the relays
in the amplifier will change and thereby the
OUT
signal will disappear.
