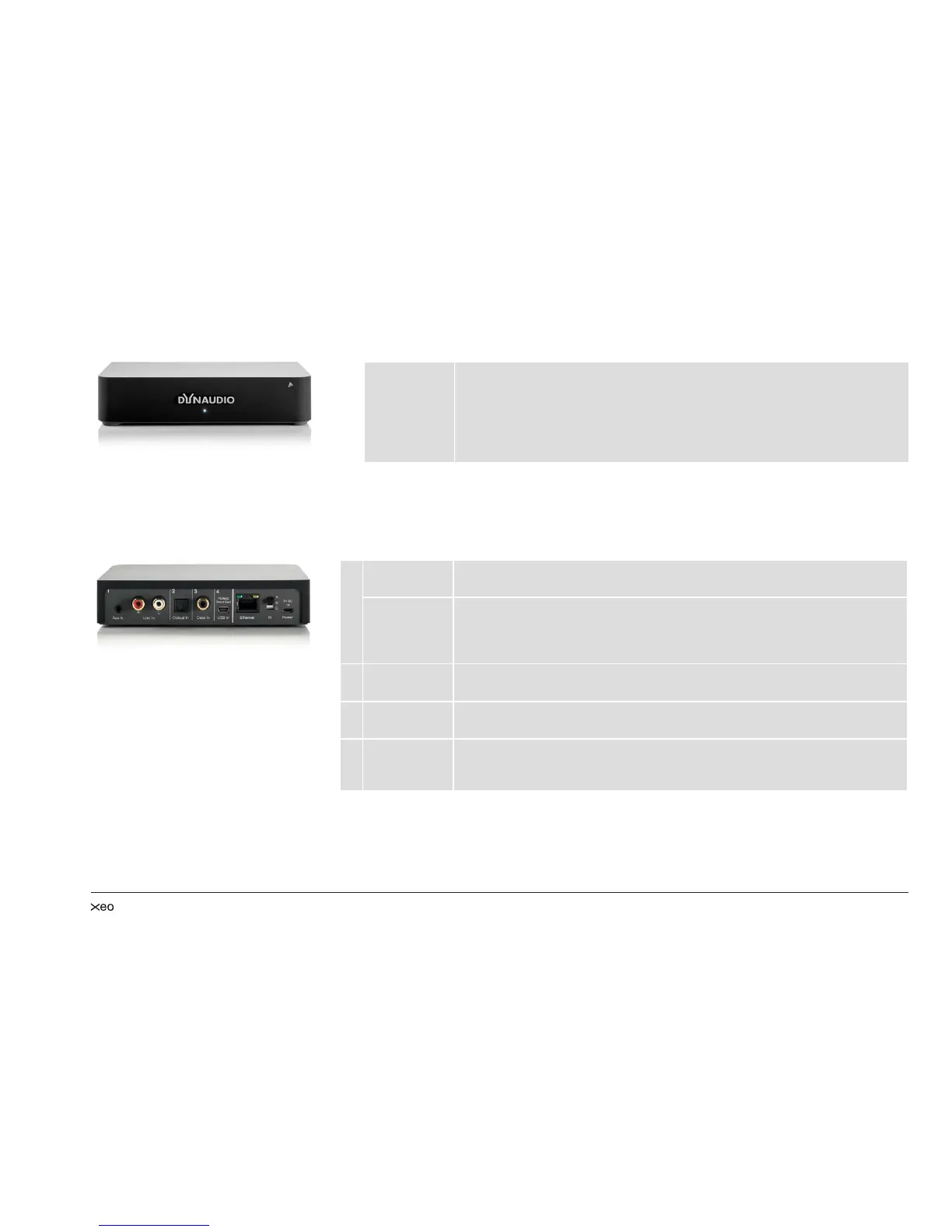

Display elements
LED Connection status
LED illuminated in
blue:
Connection established (to a loudspeaker, Extender, or
Link).
LED ashes: The Hub is searching for a connection.
LED illuminated in red: The Hub could not establish a connection.
Inputs
1 Aux in Input for cable with stereo jack (3.5 mm stereo)
Connect devices here that have an output for the stereo jack.
Line in Input for cable with RCA plug
Connect devices here that have an output for the RCA plug.
NOTE: If a device is connected in parallel at Aux in, only that device will be played
back.
2 Optical In Input for optical digital cable (Toslink)
Connect devices here that have an optical digital output.
3 Coax In Input for electrical digital cable (coax)
Connect devices here that have an electrical digital output.
4 USB in Input for USB cable
Connect your computer’s USB output here. The Hub will then work as a sound
card.
