Tower ESS Unit User Manual
10

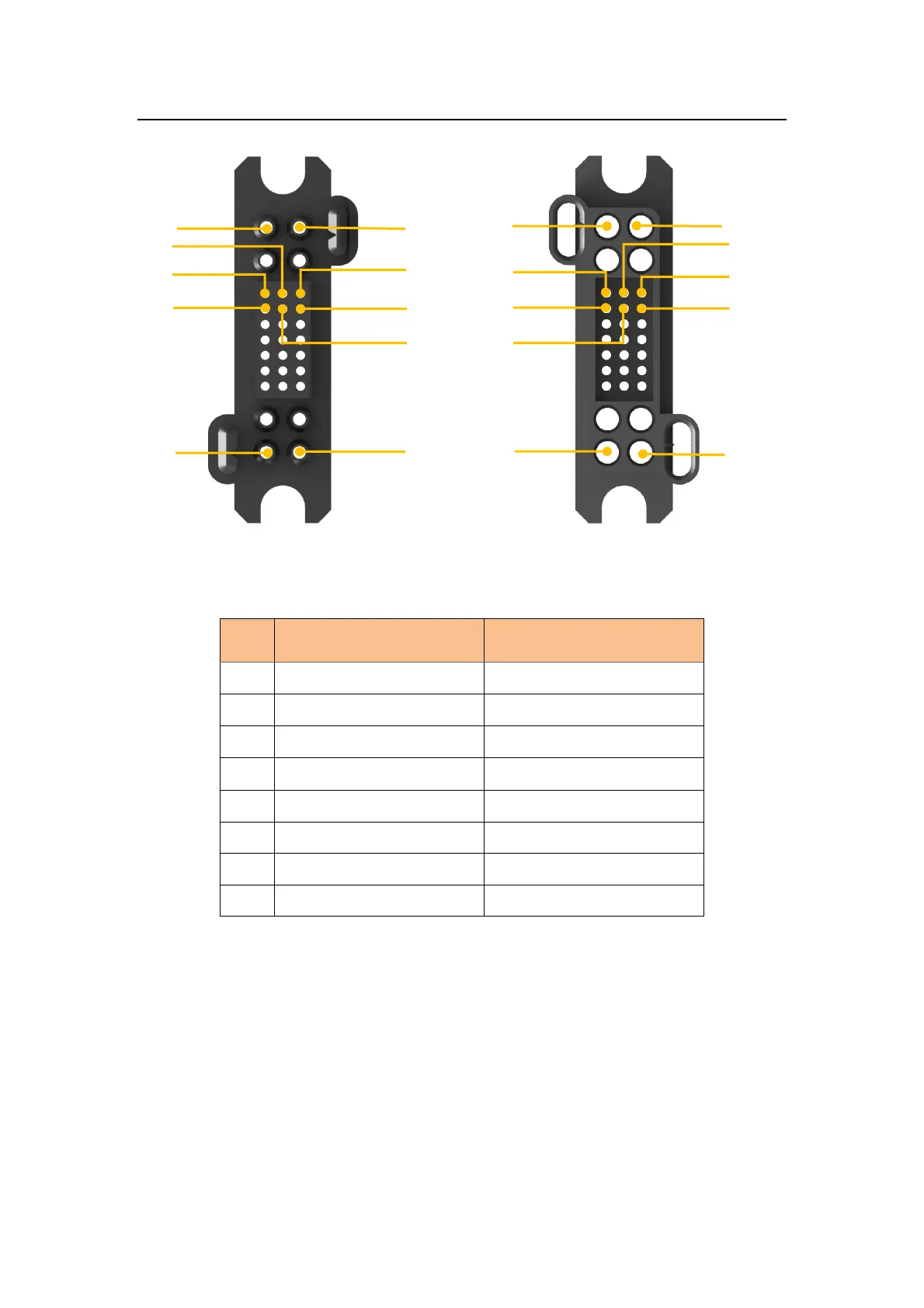

Composite connector-Plug composite connector-Socket
Table 2-4 Port Definition
NO
Composite connector-plug
Composite connector-socket
1
Negative output
Negative output
2
Module positive
Module negative
3
24V+
24V+
4
24V-
24V-
5
SCANH
SCANH
6
SCANL
SCANL
7
SCANSG
SCANSG
8
SWAKE
SWAKE
1
4
5
8
7
2
3
6
1
5
8
7
2
4
3
6
1
1
2
2
