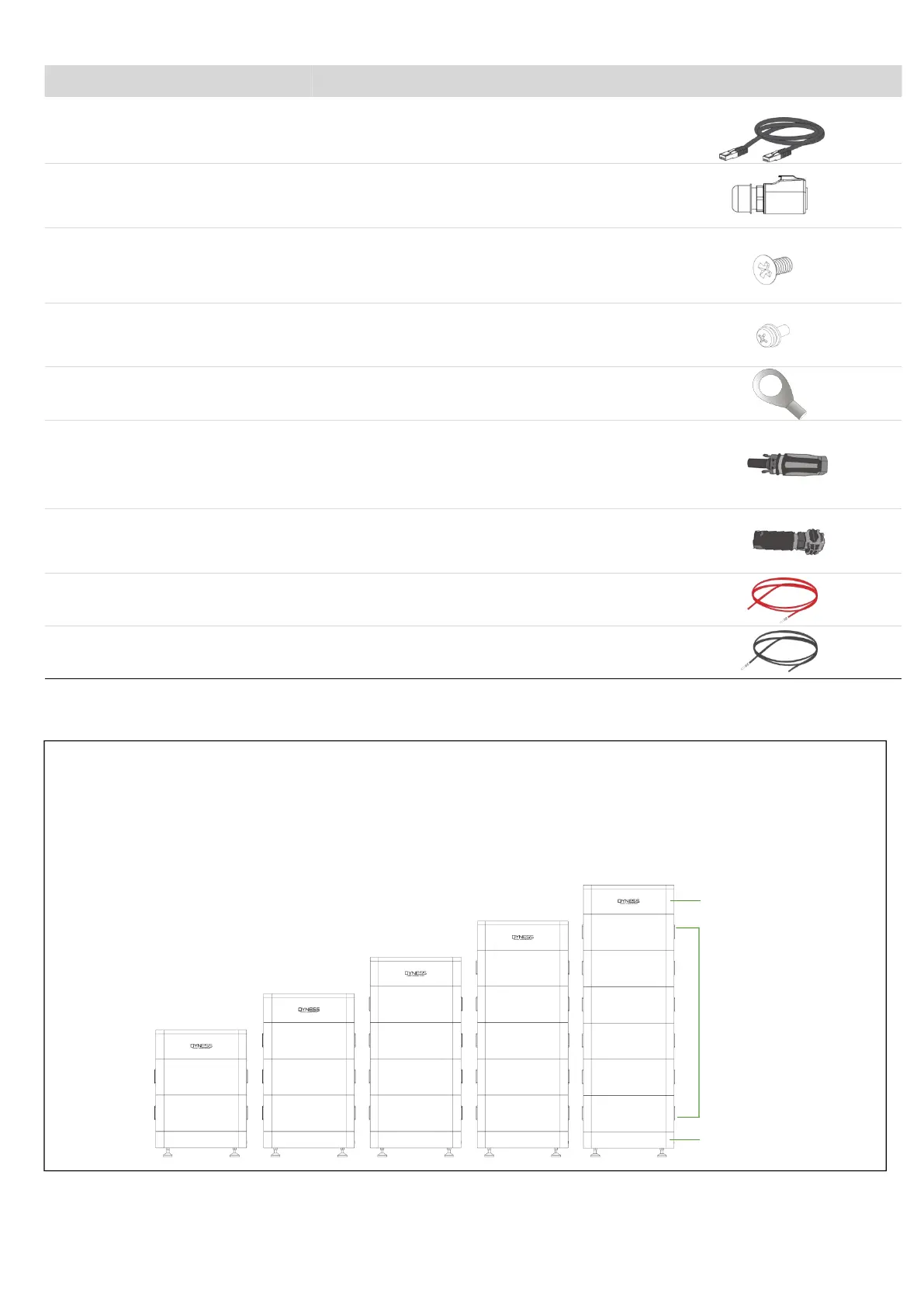

Packing list
Overall Design
Item
Specification
Quantity
Figure
Communication Cable to Inverter
Standard, Black
/L2000mm /RJ45 plug at both sides
1 PCS
Communication Connector to BDU
RJ45 Waterproof connector
1 PCS
M4 12pcs
M4*10
20PCS
M6 3 Sets of Combined Screws
M6*14
1 PCS
OT terminal for Ground
OT4-6
2 PCS
Power Cable Connector
To positive pole of battery
1 PCS
Power Cable Connector
To negative pole of battery
1PCS
Power Cable
Positive cable
6mm²,red,2m
1 PCS
Power Cable
Negative cable
6mm²,black,2m
1PCS
• Limited to the voltage interval of the inverter, the number of HV9637 modules used by the Tower
series is 2.
• Limited to the conversion conditions of the BDU internal DC, the maximum number of HV9637
modules in the Tower series of products is 6.
T7=7.1kWh
BDU
T10=10.6kWh
T14=14.2kWh
T17=17.7kWh
T21=21.3kWh
HV9637*N
(N=2~6)
Base
