Dyness Tower Series - Page 4

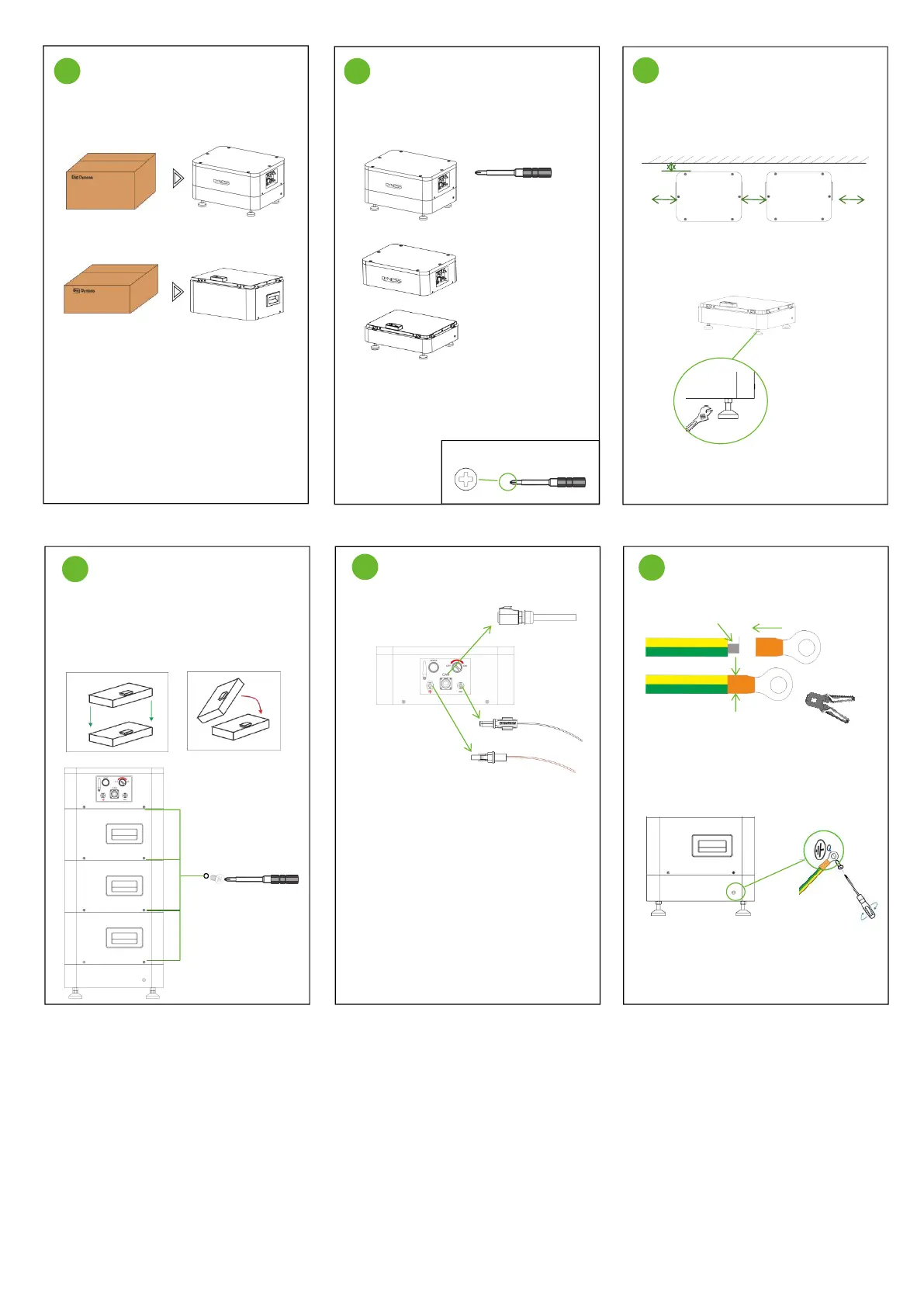

Unpacking
BDU+Base
HV9637
Separate the BDU and Base
Spacing
Negative cable
Positive cable
Note: We recommend that a circuit
breaker is installed between the
battery and the inverter to prevent
the battery or the inverter being
damaged when a short circuit occurs.
Note: When assembling the BDU,
ensure that the BDU circuit breaker
is in “OFF” position.
Tighten the
fixed bolt in
turn.
Stacking and locking
Connecting the cables
Earth connection
1
2
3
D2
D1=500mm
D2=300mm
=
D1
4
5
Communication cable
6
√
×
10±0.5mm
D1
D1
