Note: Operator mode screens follow, without exing from Setup mode.

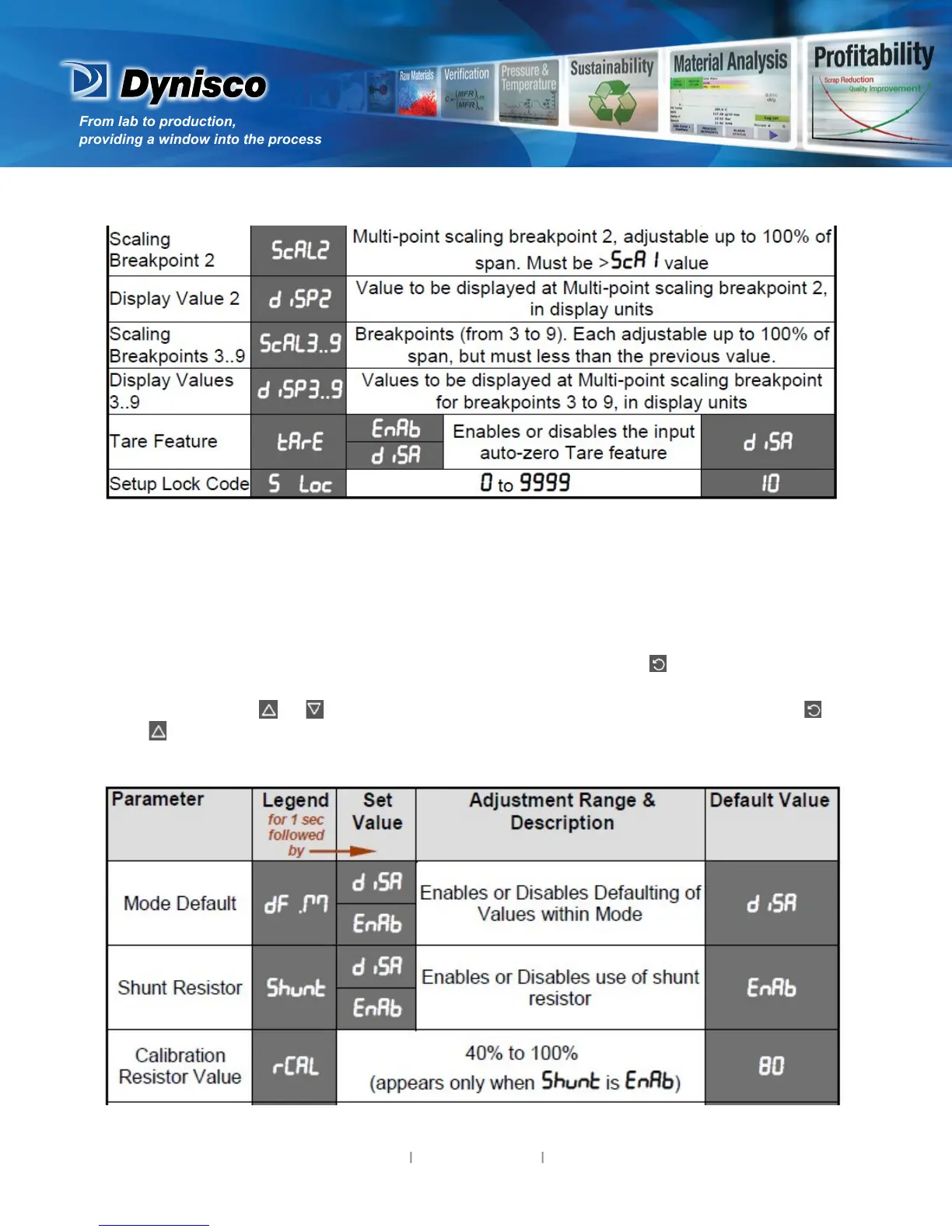

5. Strain Gauge Calibraon Mode
Note: Conguraon must be completed before adjusng Calibraon parameters.
First select Calibraon mode from Select mode (refer to secon 2). Press to scroll through the
parameters (while this key is pressed, and for 1 sec aer, the parameter legend is shown, then the
current value). Press or to change the value. To exit from Calibraon mode, hold down and
press to return to Select mode.
Note: Calibraon mode will only be displayed if input type is set to Str_G
