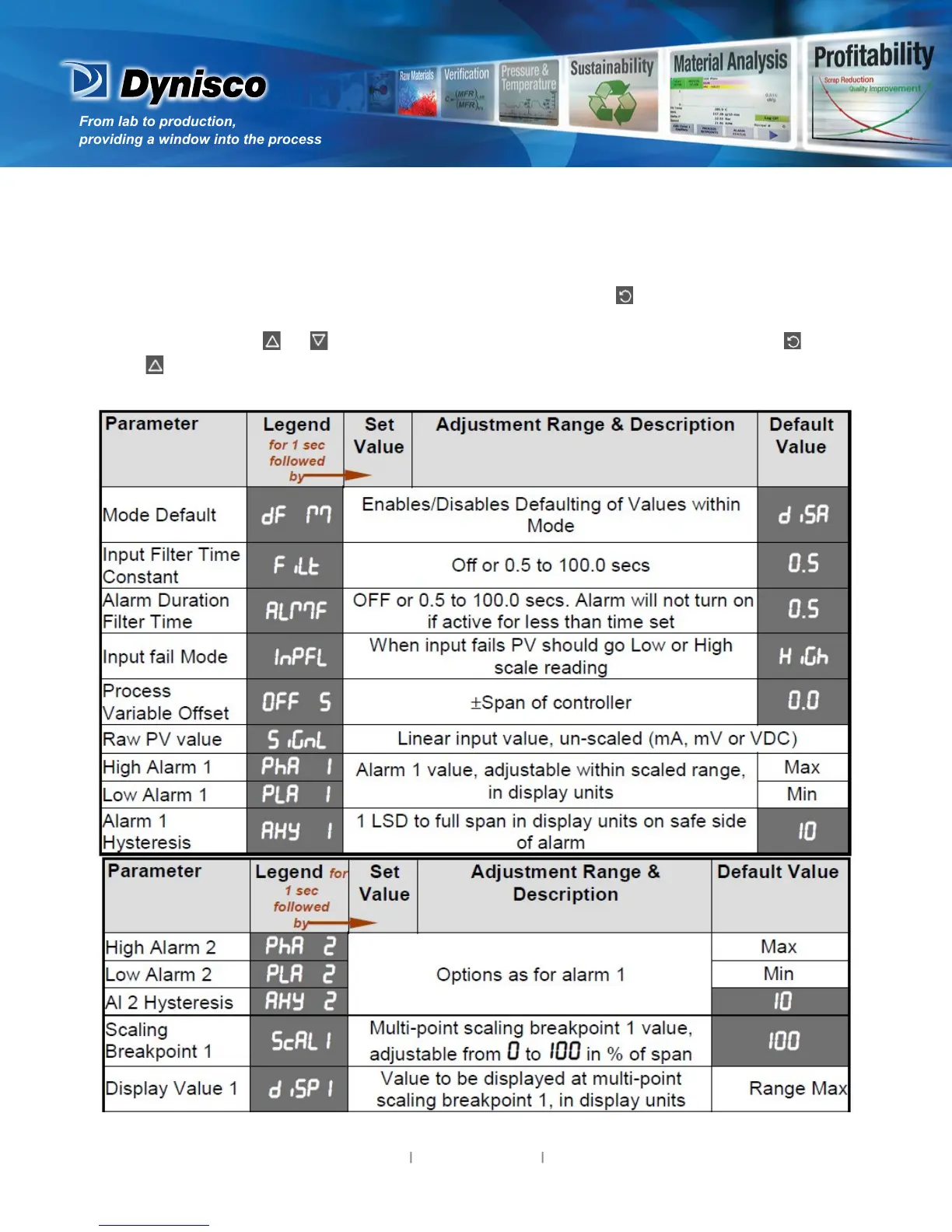

4. Setup Mode
Note: Conguraon must be completed before adjusng Setup parameters.
First select Setup mode from Select mode (refer to secon 2). Press to scroll through the
parameters (while this key is pressed, and for 1 sec aer, the parameter legend is shown, then the
current value). Press or to change the value. To exit from Setup mode, hold down and
press to return to Select mode.
Note: Parameters displayed depends on how instrument has been congured.
