Product Operation
Display
The EFIS-D100 display is the most obvious and commonly used output of the device. It is capable of displaying EFIS,
HSI, and/or engine data simultaneously.
SCREENS AND PAGES
The terms in the following bulleted list are used in this section and are defined as follows:

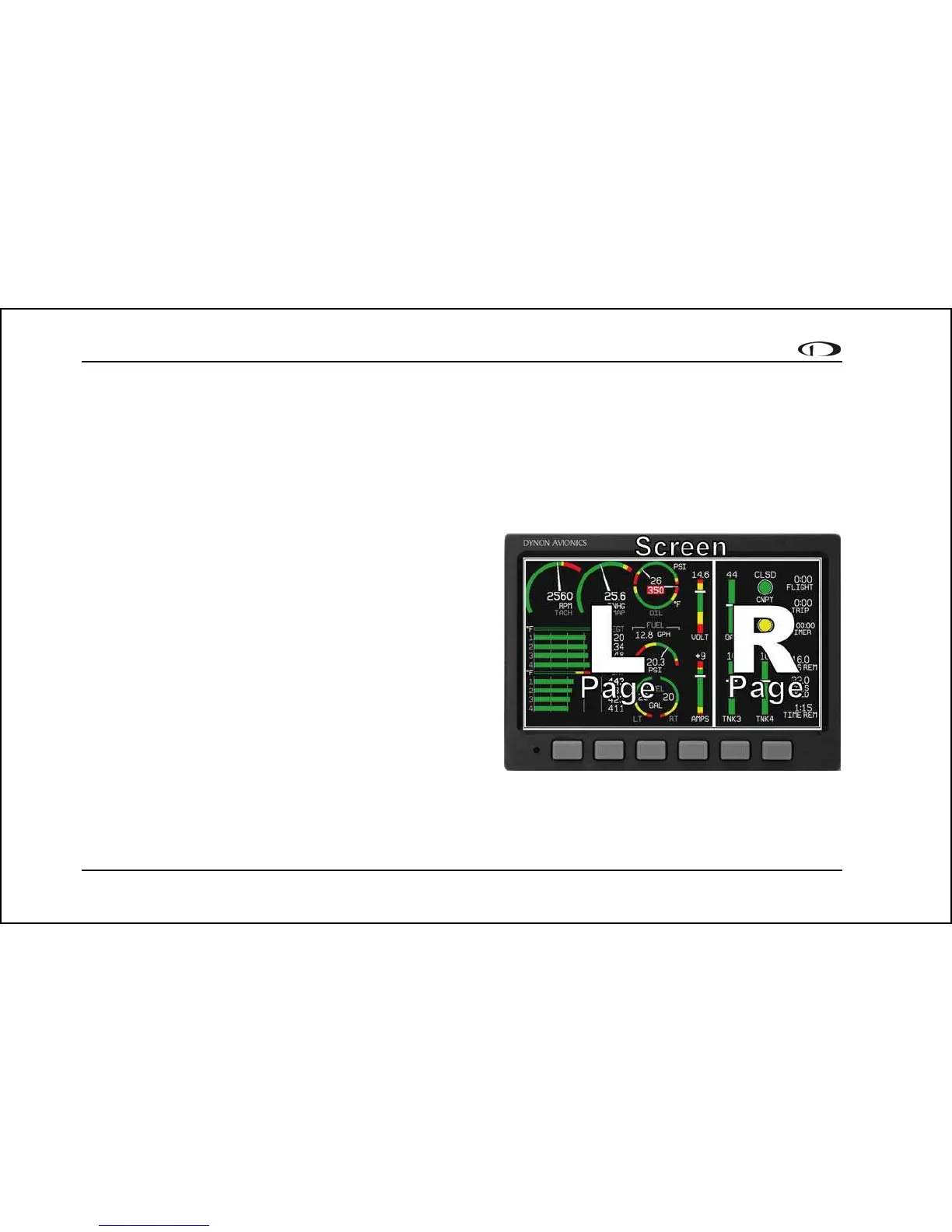

Screen/Screen Configuration – Screens consist of one or
two pages from the EFIS-D100 or from another DSAB-
connected Dynon Avionics product.
Page – A page is a section of the screen that contains a
collection of related data. Pages may occupy the total area
of the screen (i.e., 100%) or share the screen with other
pages (e.g., 2/3, 1/3 split). Pages that occupy 1/3 of the
screen area are sometimes abbreviated versions of their full
size (100% or 2/3) counterparts.
Screen Rotation – The rotation is the list of screen
configurations which can be cycled to via the hotkeys. Your
rotation is usually smaller than the total list of available
screen configurations.
3-2 EFIS
-D100 Pilot’s User Guide
Screens contain one or two pages and pages contain
groups of similar information.
