Dyson DC19 Service Manual

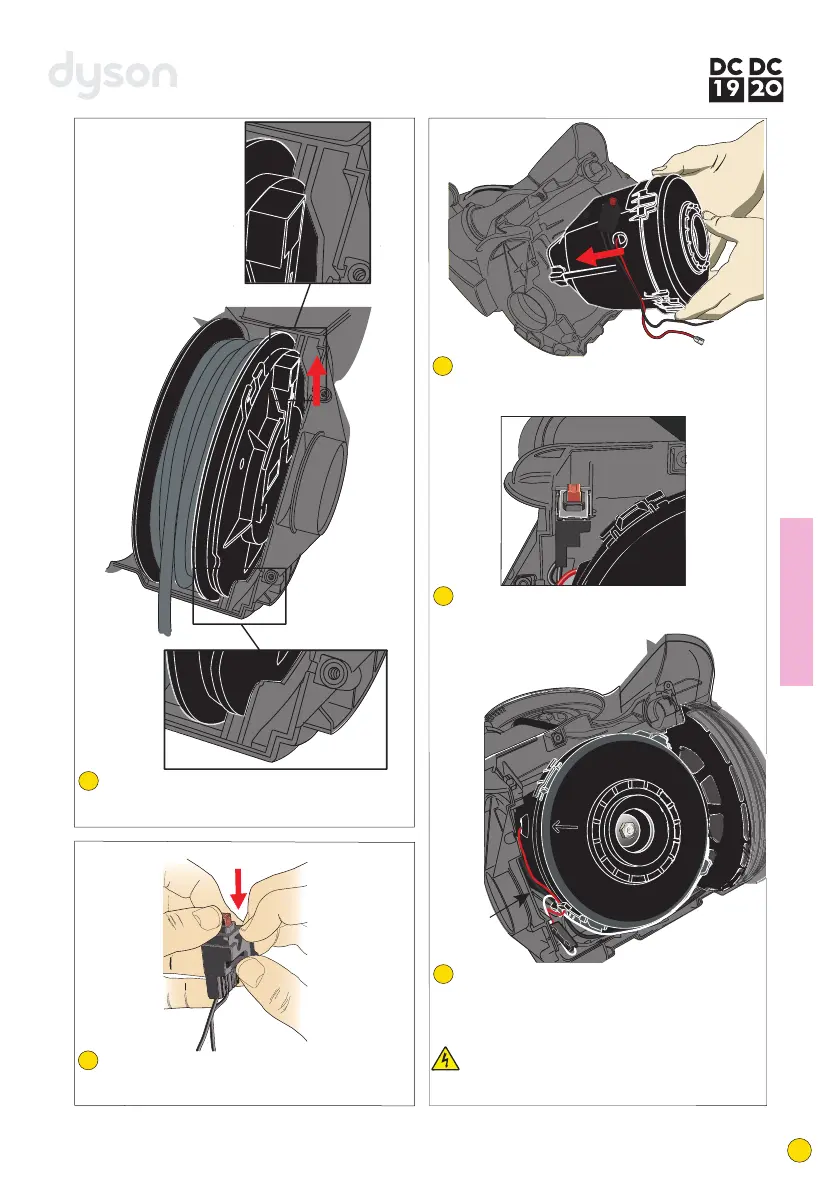

Lower the motor bucket into the LMC ensuring the
lugs on the motor bucket mount locate into the
channels provided.
Locate the black wires from the cable rewind and
motor bucket through the switch holder and attach
to the switch. Clip the switch into the holder.
Locate the cable rewind assembly ensuring it sits
within the LMC as shown. When fitted correctly
the brake actuator will point directly upwards.
Fitting notes
29
30
28
Position the switch holder into the LMC assembly.
When positioned correctly the switch button will
point directly upwards.
31
Attach the red and white together and refit the
negative insulator. Neatly dress all wires into the
clips around the side of the motor bucket.
Locate the negative insulator into the corner of
the LMC assembly.
Important: ensure all wires are free from the
side wall of the LMC assembly. Failure to ensure
this could result in trapped wires.
32
Side wall
10
service manual

Dyson DC19 Specifications

General

Type	Cylinder vacuum
Cleaning type	Dry
Dust capacity	2 L
Cord length	6.5 m
Dimensions (WxDxH)	282 x 434 x 345 mm

Weight and Dimensions

Weight	8560 g
