Dyson DC19 Service Manual

Technical
service manual
2

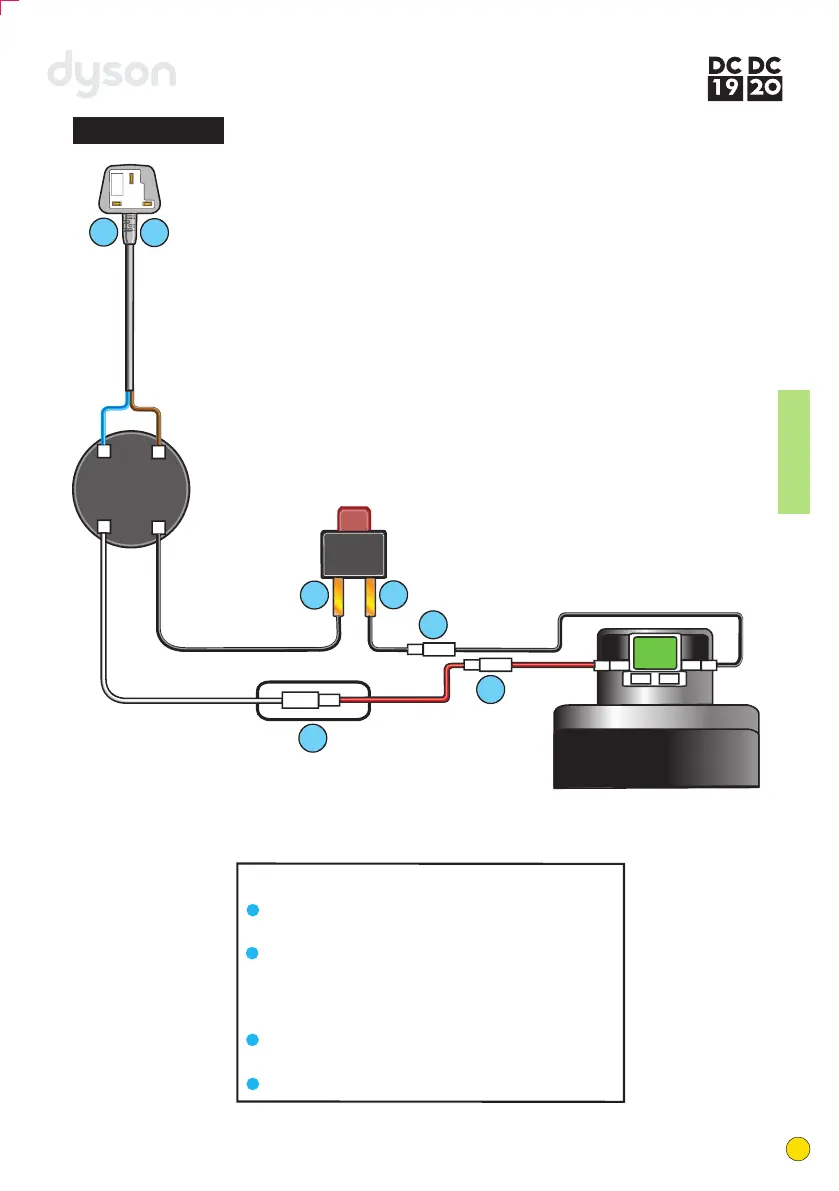

Circuit overview
Complete circuit (points 1-2) = 7Ω approx.
Cable rewind:
Live (points 1-3) = 1Ω max.
Neutral (points 2-6) = 1Ω max.
Switch (points 3-4) = 1Ω max.
Motor assy (points 5-7) = 7Ω approx.
Resistance values
4
5
7
6
1
2
3

Dyson DC19 Specifications

General

Type	Cylinder vacuum
Cleaning type	Dry
Dust capacity	2 L
Cord length	6.5 m
Dimensions (WxDxH)	282 x 434 x 345 mm

Weight and Dimensions

Weight	8560 g
